Main components, central locking system, tailgate

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

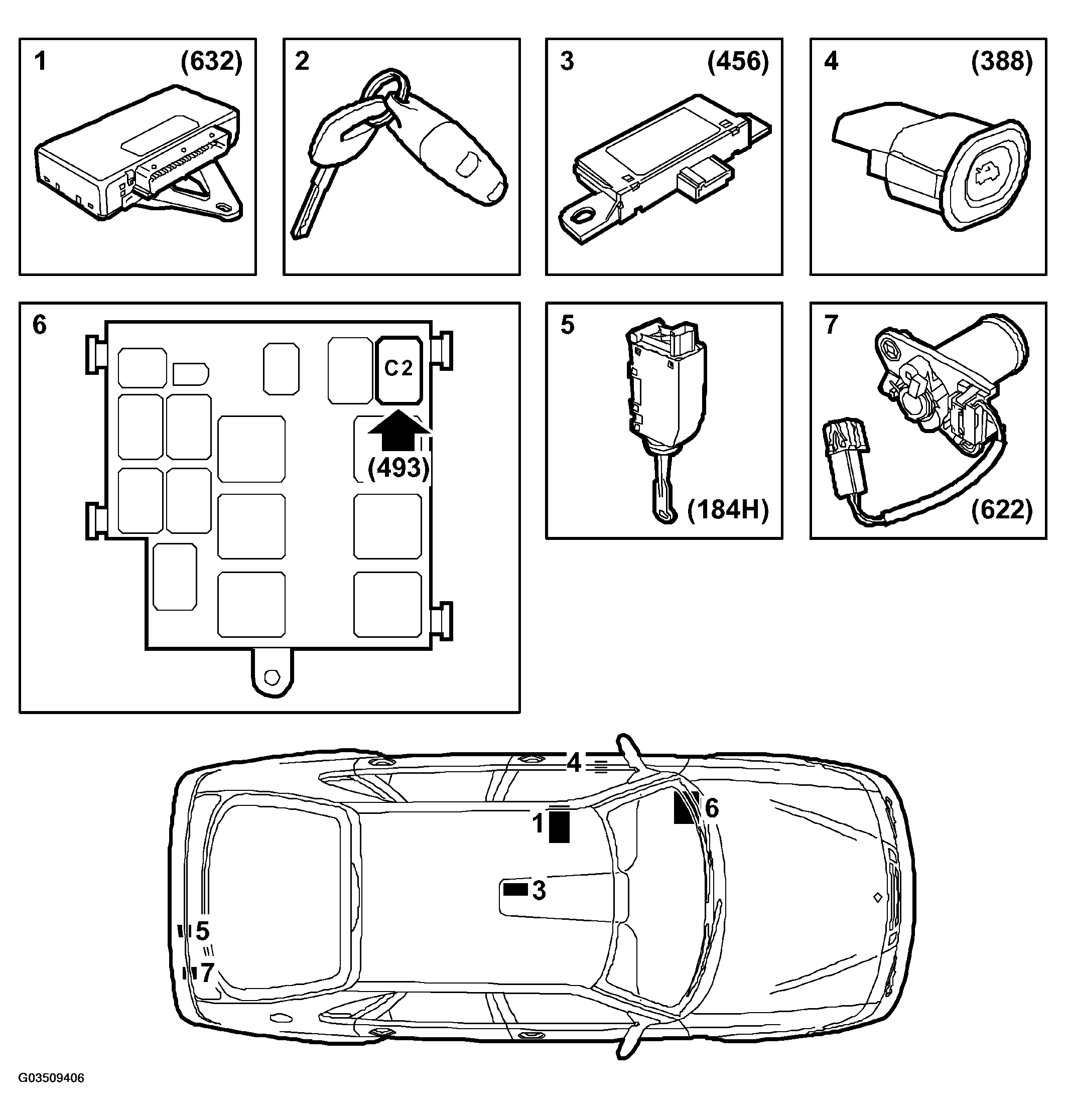

Fig 1: Identifying Main Components Of Central Locking System, Tailgate
G03509406Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control module, TWICE (632)
  2. Car keys and remote control
  3. Receiver, remote control (456)
  4. Switch for tailgate in driver's door (388)
  5. Electric motor, central locking system, tailgate (184H)
  6. Relay, central locking system, tailgate (493)
  7. Microswitch, central locking system, tailgate (622)
