Main components, central locking system for doors

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

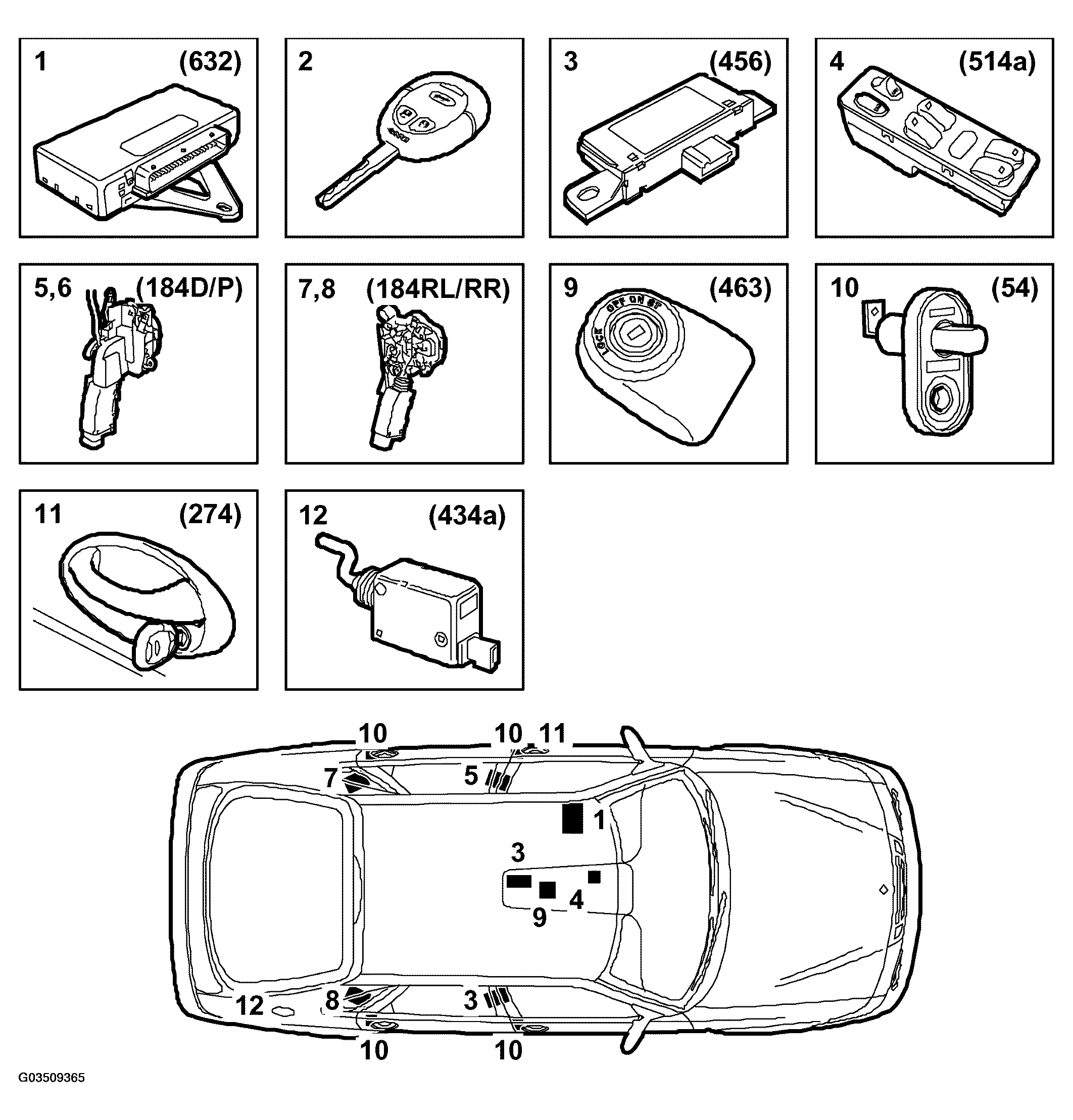

Fig 1: Identifying Main Components - Central Locking System For Doors
G03509365Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control module, TWICE (632)
  2. Car key with remote control
  3. Receiver, remote control (456)
  4. Switch, central locking system (514a)
  5. Motor, central locking system, driver's door (184D)
  6. Motor, central locking system, passenger door (184P)
  7. Motor, central locking system, left rear door (184RL)
  8. Motor, central locking system, right rear door (184RR)
  9. Antenna unit, immobilizer (463)
  10. Door switches (54D, P, RL, RR)
  11. Microswitch, central locking system, driver's door (274)
  12. Motor, central locking system, tank hatch (434a)
