Unlocking all doors
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

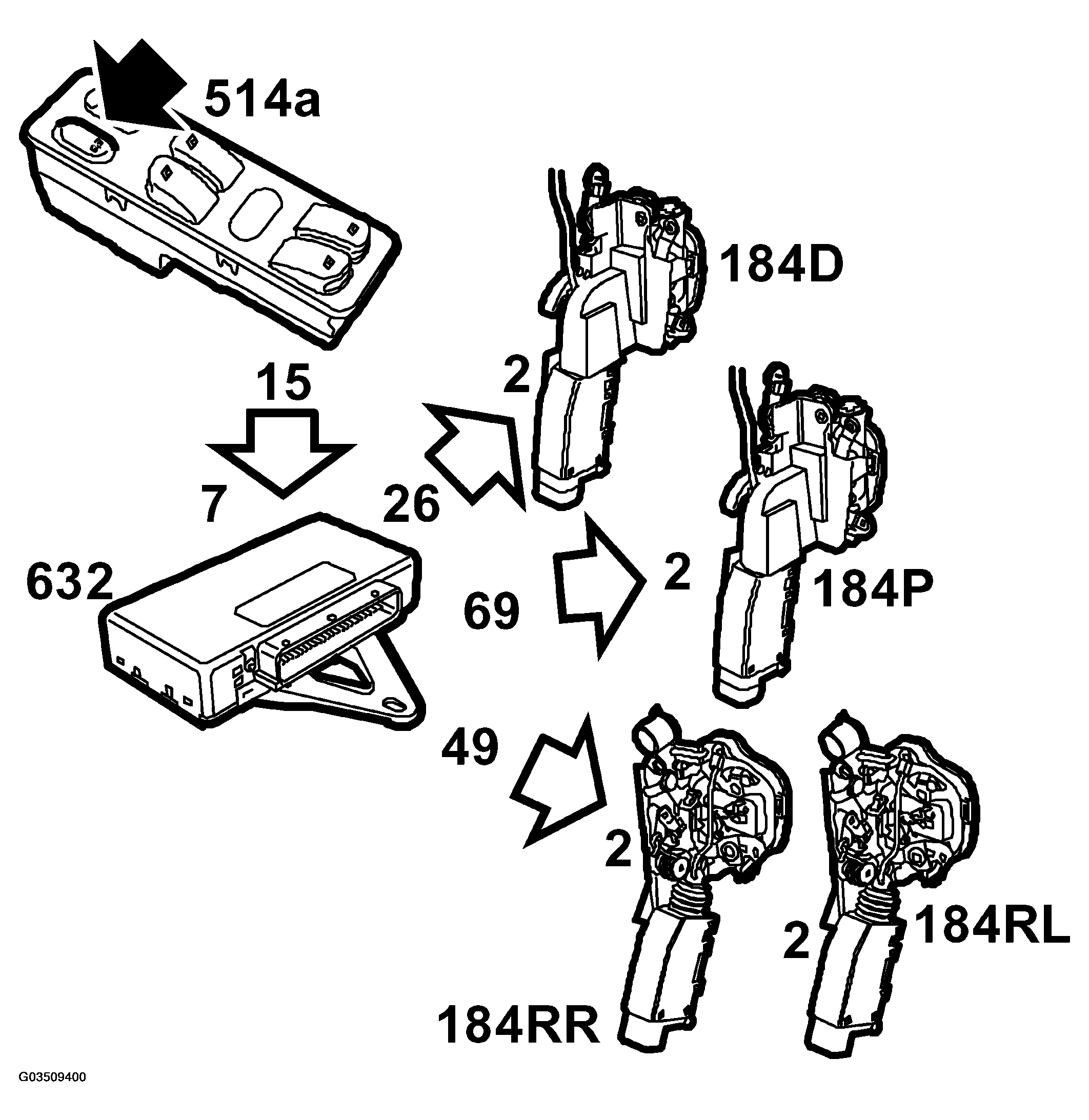

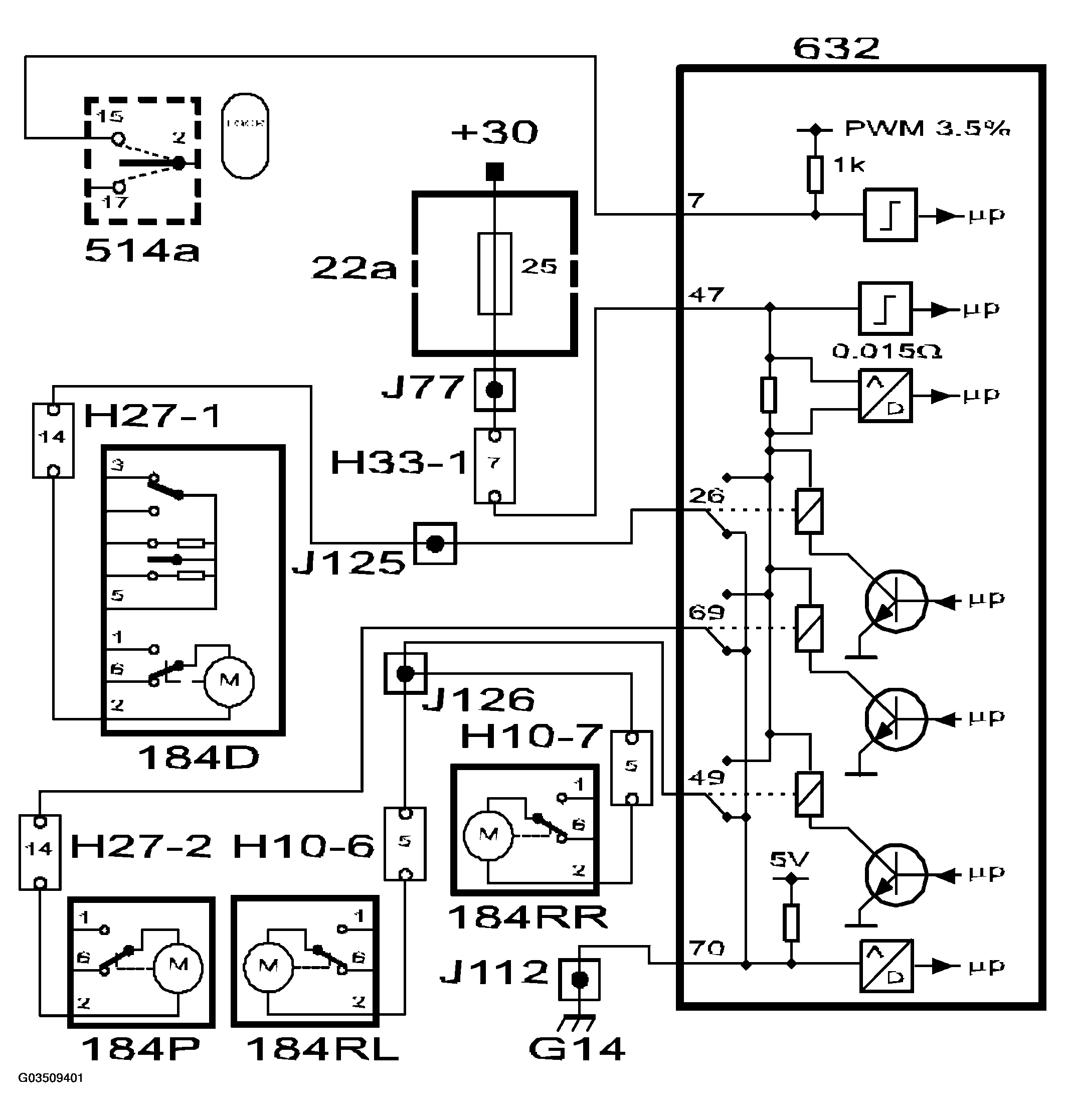

When the button is pressed down, a microswitch closes and grounds pin 15 whereby pin 7 on the TWICE control module is grounded.
A short voltage impulse is fed from the TWICE control module to the lock motors from:
- Pin 26, driver's door (5D, 3D and convertible)
- Pin 69, front passenger door (5D, 3D and convertible)
- Pin 49, rear doors (5D)
The lock motors are grounded in the TWICE control module on:
- Pin 42 and 22, driver's door (5D, 3D and Convertible)
- Pin 66 and 22, front passenger door (5D, 3D and Convertible)
- Pin 20 and 22, rear doors (5D)
