Lock button in center console: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

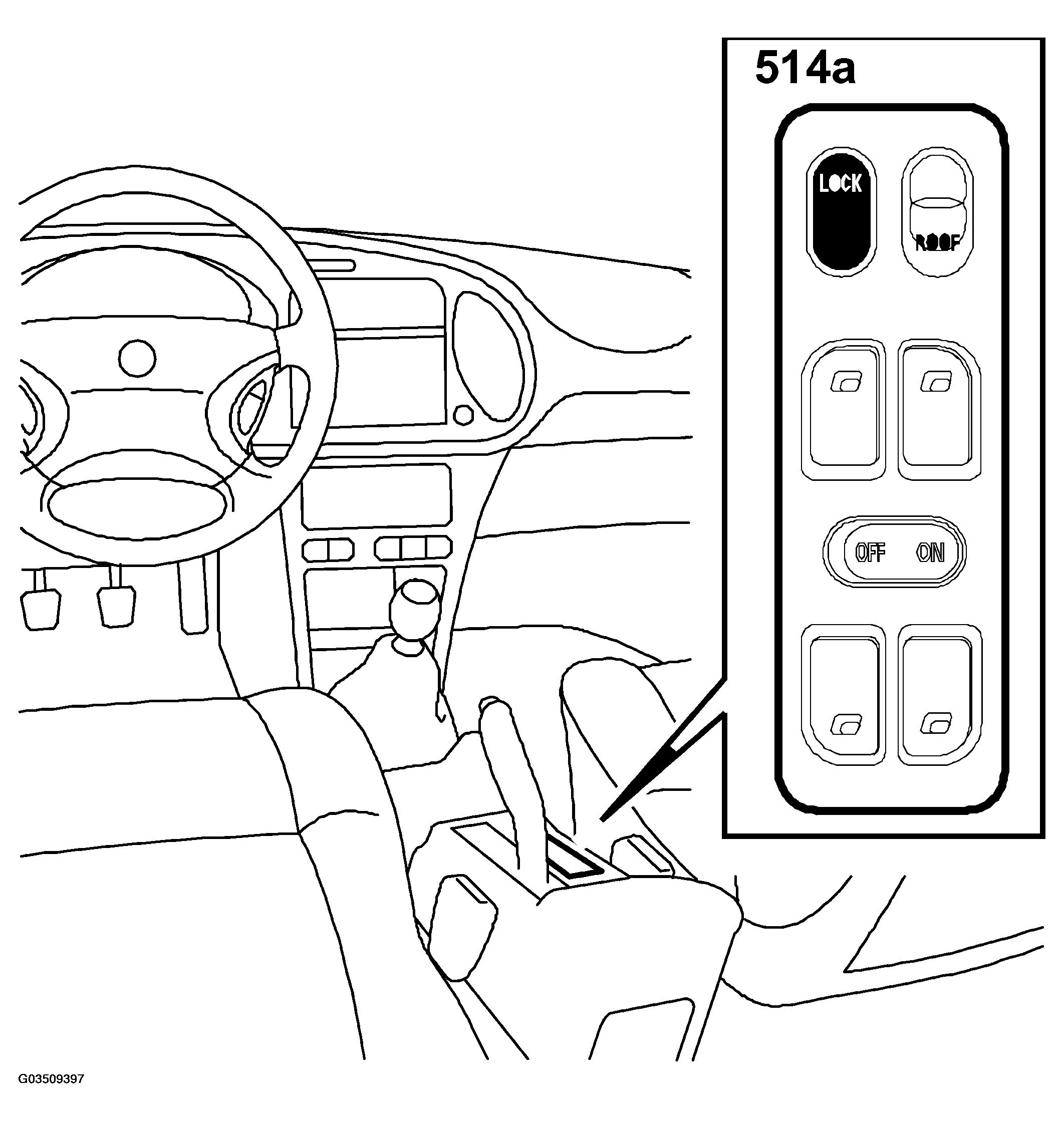

Fig 1: Identifying Lock Button In Center Console
G03509397Courtesy of SAAB-SCANIA OF AMERICA, INC.

The central locking system can be locked from inside the car using the button on the center console. The car can only be unlocked with the center console button if the car has been locked using that button or with the lock buttons on each door.

If the central locking system is locked using the key or remote control, it cannot be operated using the lock button. The lock button functions once the ignition key has been turned to ON and the correct immobilizer code has been identified.

Convertible models do not have the center console button, instead the central locking system can be operated with the lock buttons in the doors.
