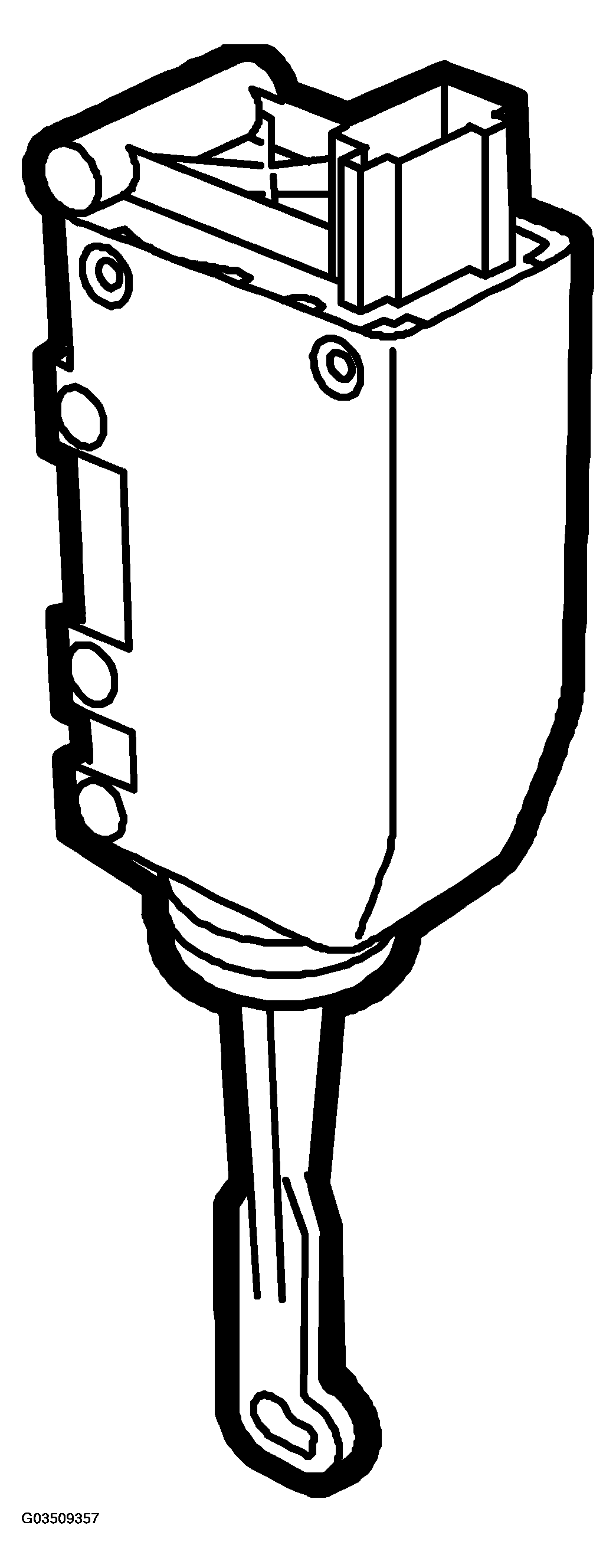

Electric motor, tailgate/bootlid
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - TAILGATE/BOOTLID ELECTRIC MOTOR
| Rated voltage |
V |
12 |
| Current consumption at rated voltage |
A |
2 (at 23°C, jammed) |
| Max. current consumption at rated voltage |
A |
4 |
IMPORTANT:
Electric motor must not be supplied with current for more than 45 seconds, the motor will overheat and malfunction.
