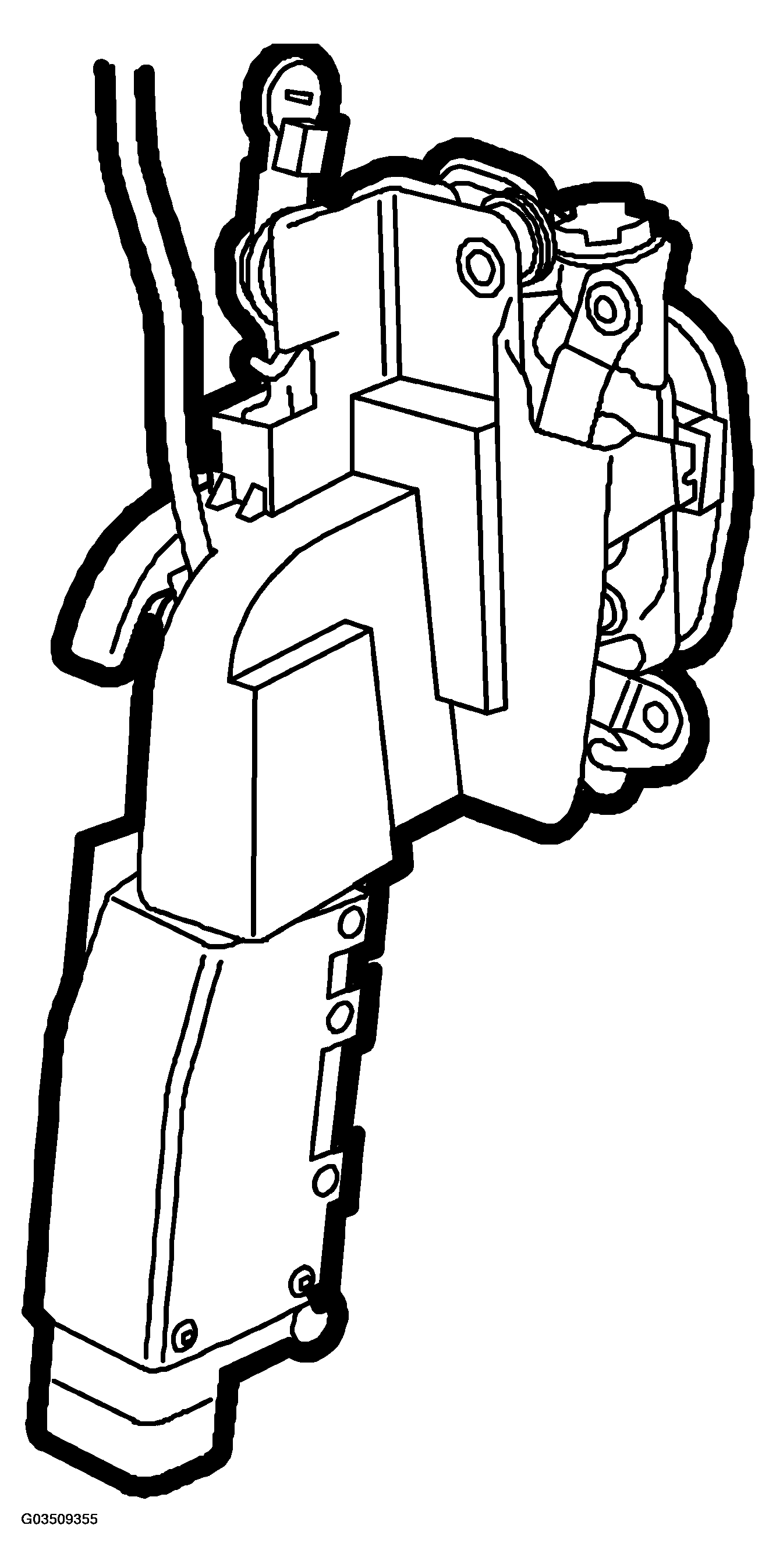

Electric motor, central locking system, front door
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL DATA - CENTRAL LOCKING SYSTEM ELECTRIC MOTOR (FRONT DOOR)
| Rated voltage | V | 12 |
| Current consumption at rated voltage | A | 2 (at 23°C, jammed) |
| Max. current consumption at rated voltage | A | 4 |
IMPORTANT:
Electric motor must not be supplied with current for more than 45 seconds, the motor will overheat and malfunction.
