Tailgate rubber stop guide: Adjustment

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Adjustment of rubber stop guides in the body and rubber stops in the tailgate are done so that the tailgate will not only rest on the lock but also on the rubber stops. First adjust the rubber stop guides positioned in the body.

Open the tailgate.
Loosen the inner trim on the left and right side of the tailgate opening by removing the two clips that secure the trim to the side.

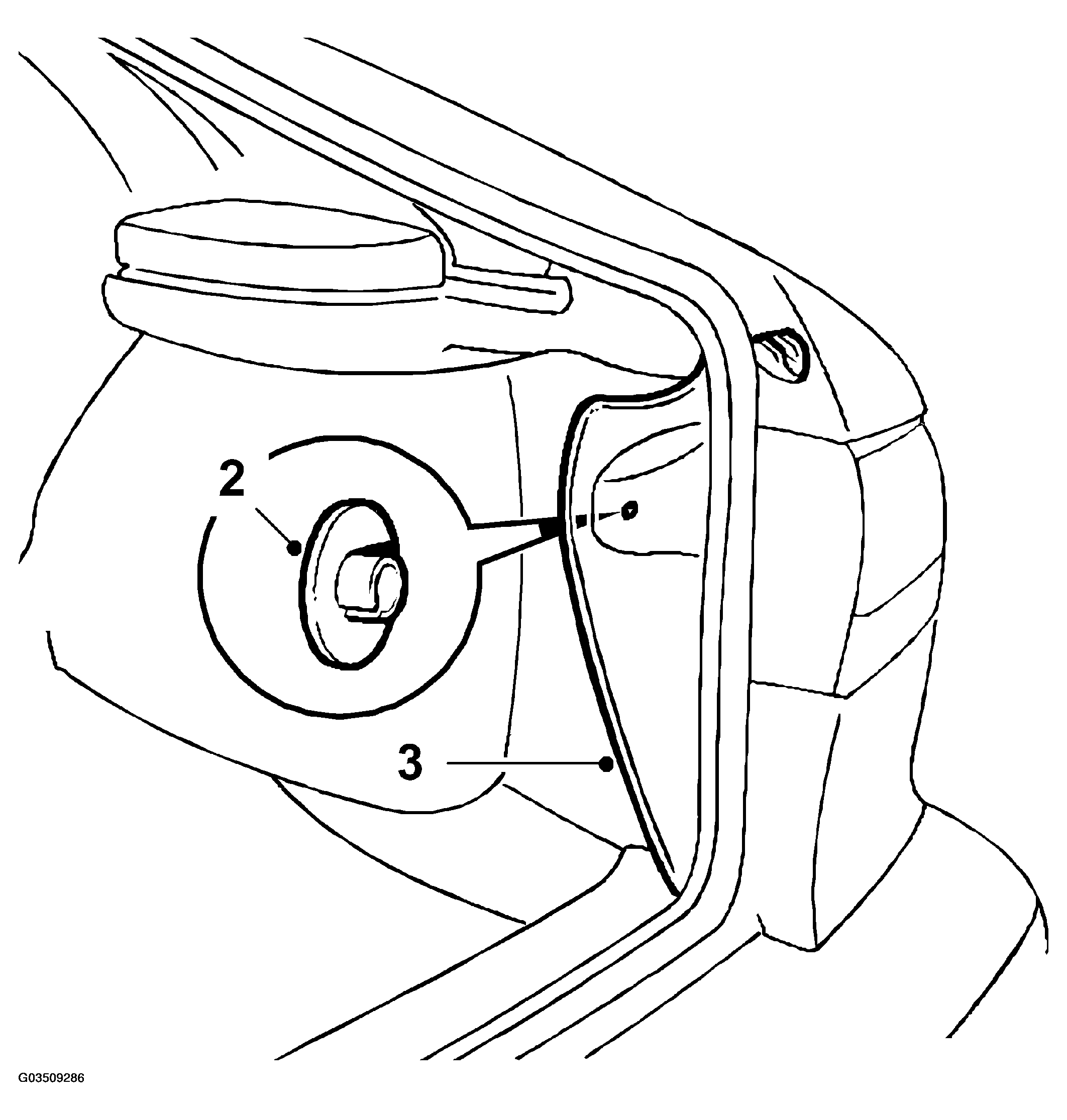

Fig 1: Illustration For Step 2-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fold out the trim to access the two retaining nuts for the rubber stop guide.
Loosen the nuts and adjust.

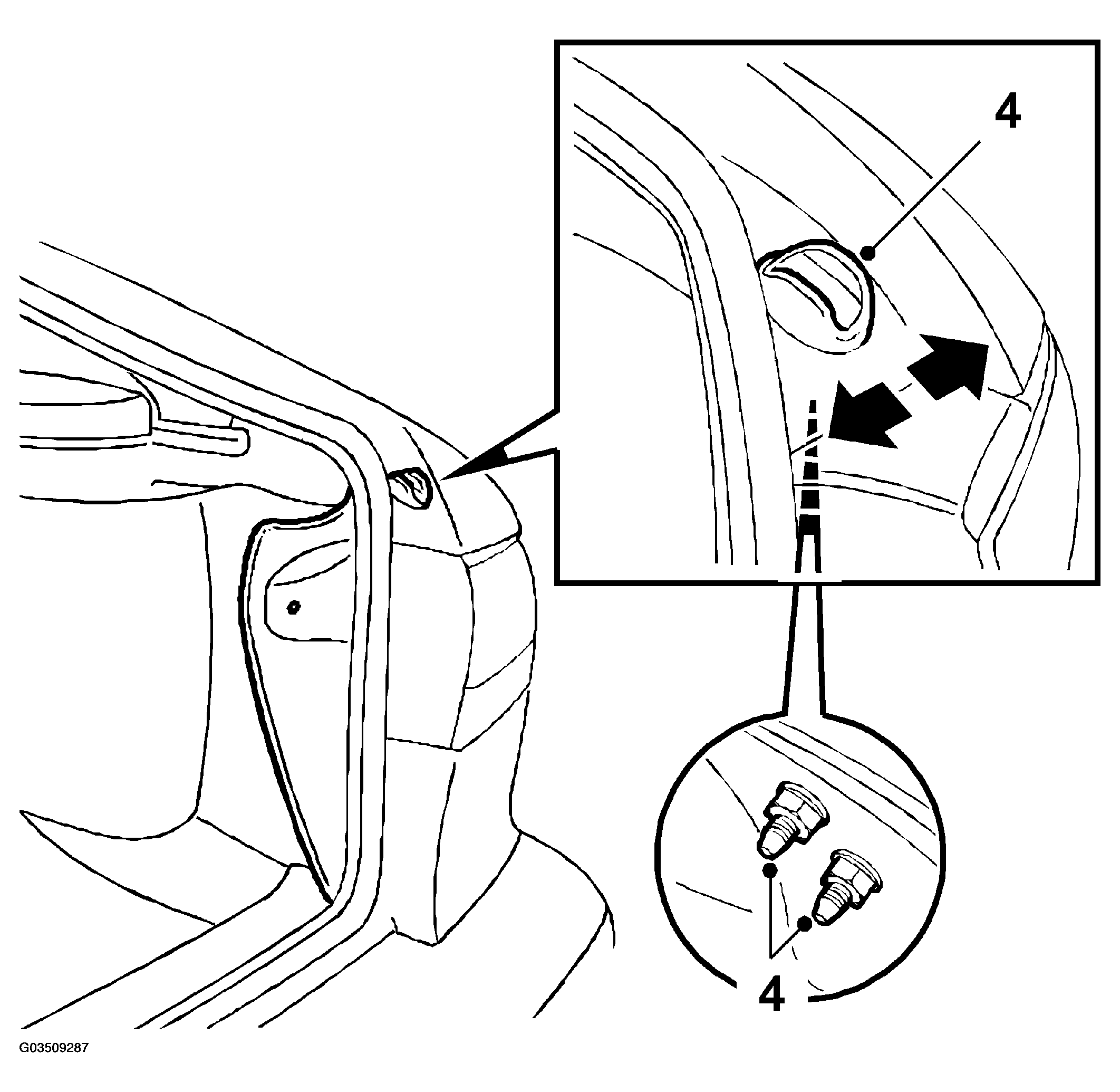

Fig 2: Illustration For Step 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.

After adjustment:

Tighten the retainer nuts for rubber stop guide.
Refit the trim and fasten with the clips.

Adjusting tailgate rubber stops:

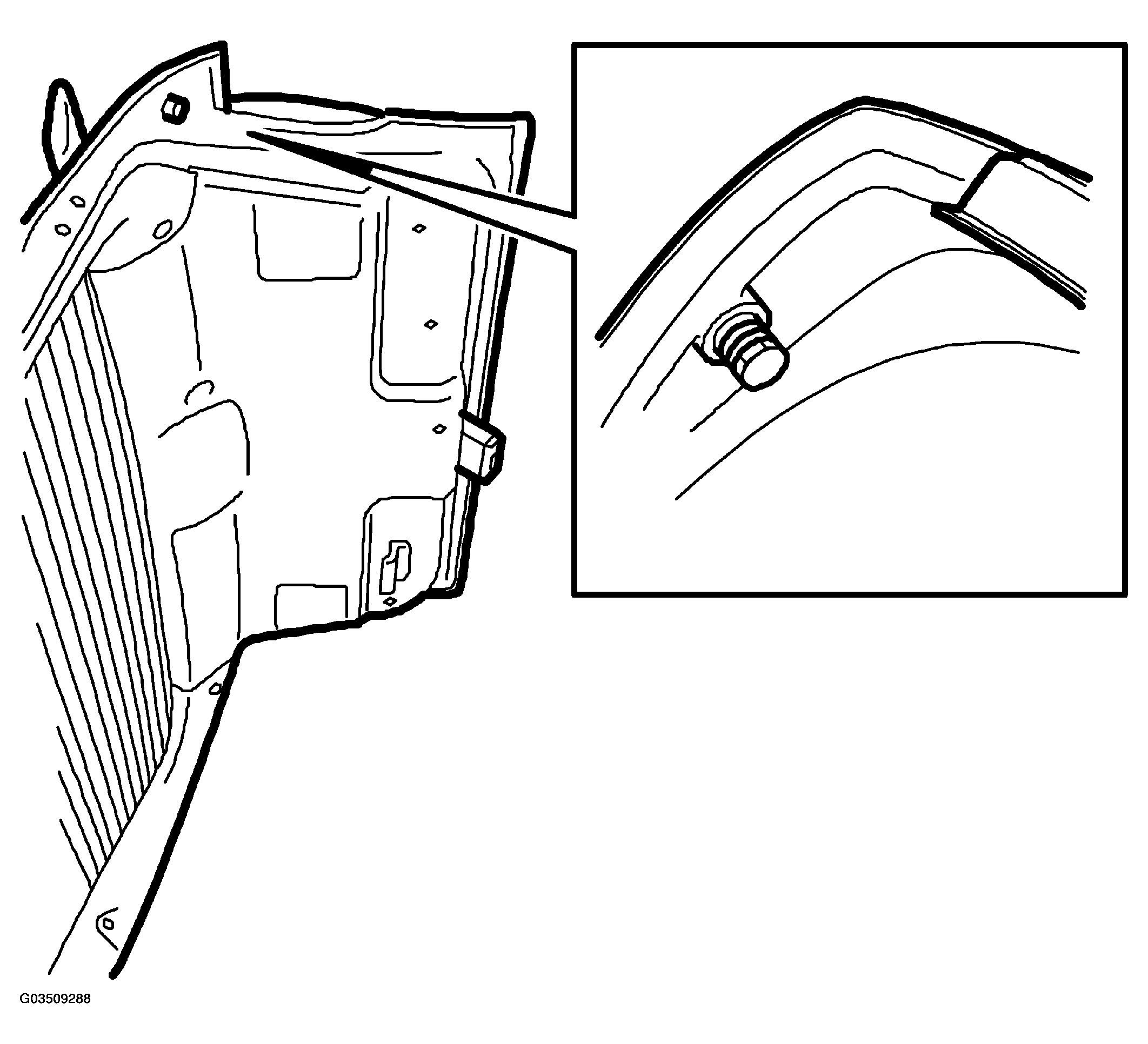

Fig 3: Adjusting Tailgate Rubber Stops

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Adjust the height of the rubber stops by turning them in or out by hand. The rubber stops are threaded into the tailgate.
