To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift the tailgate lock.

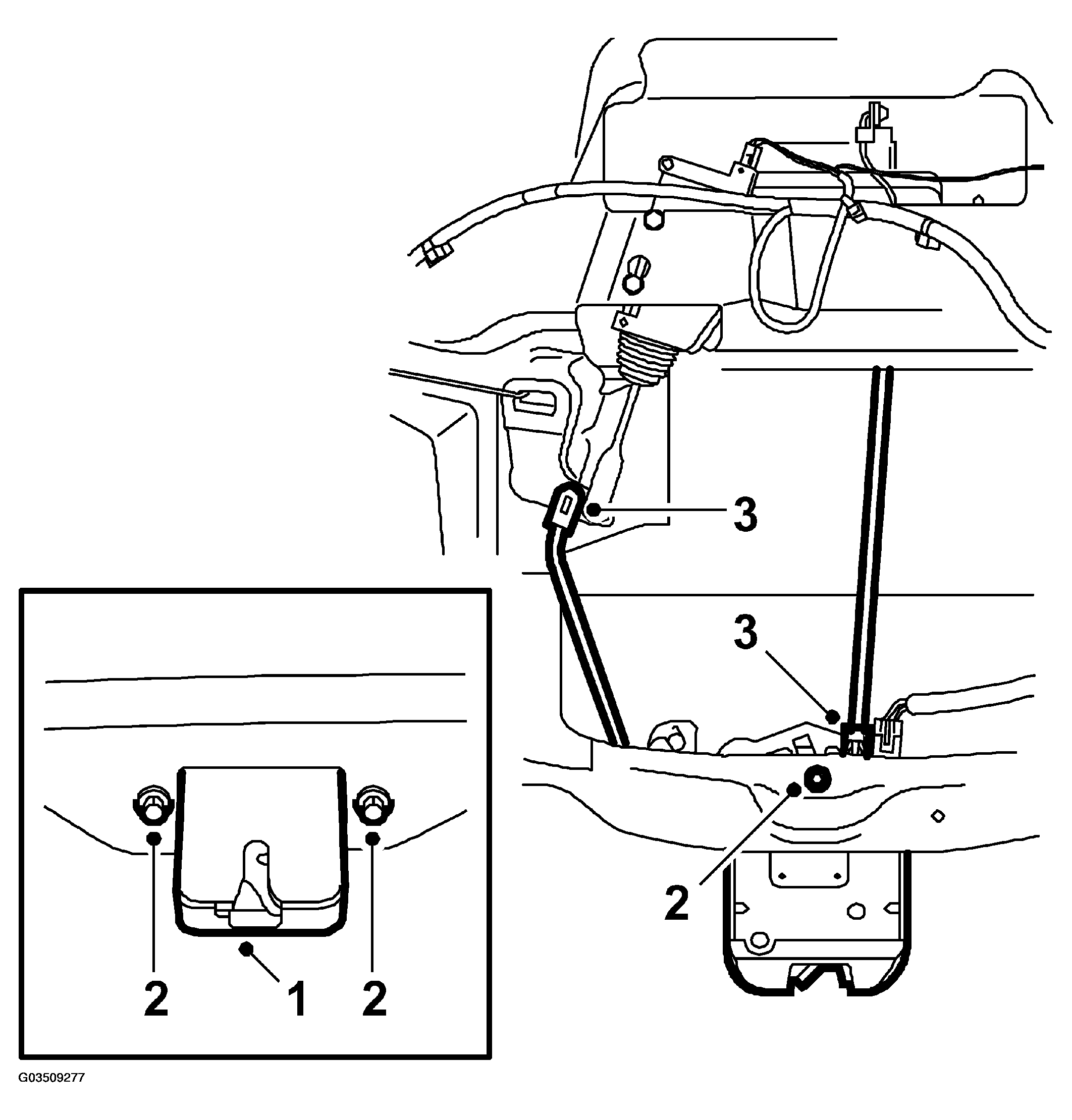

    Fig 1: Illustration For Step 1-3
    G03509277Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Tighten the three retainer bolts for the lock.
  3. Fasten the three push rods to the lock (2 clips). Plug in the connector.
  4. Fit the tailgate trim, see DOOR TRIM, TAILGATE .
