To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate.
  2. Remove the tailgate trim, see DOOR TRIM, TAILGATE .
  3. Remove the retainer bolts that secure the lock motor.

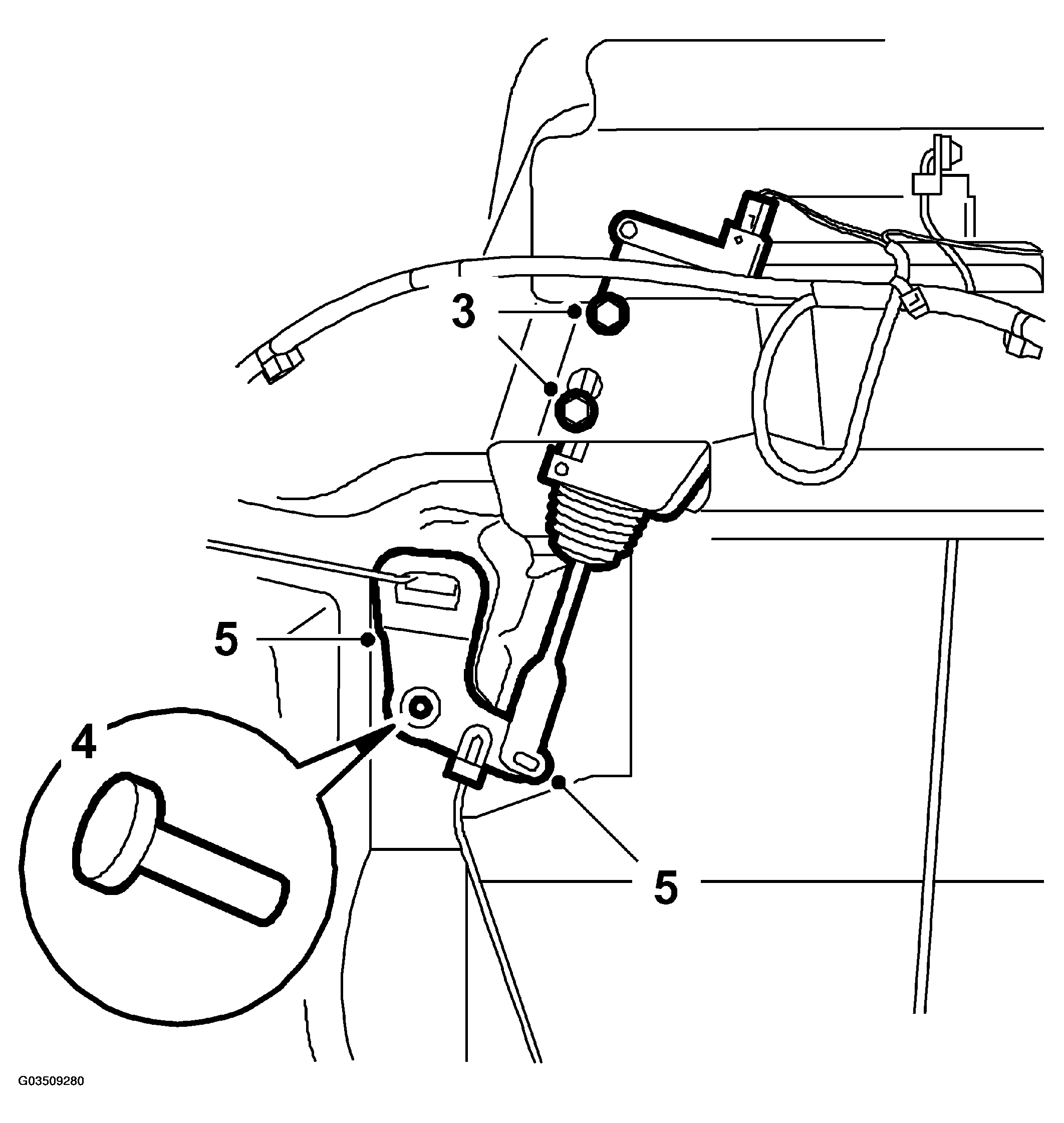

    Fig 1: Illustration For Step 3-5
    G03509280Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Release the expander rivet securing the plastic pivots to the tailgate by pressing in the expander pin slightly and pulling out the whole rivet.
  5. Carefully pull out the lock motor and turn the motor to remove it from the plastic hinge.
