To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hook the lock motor onto the plastic hinge and turn in the motor to its original position.

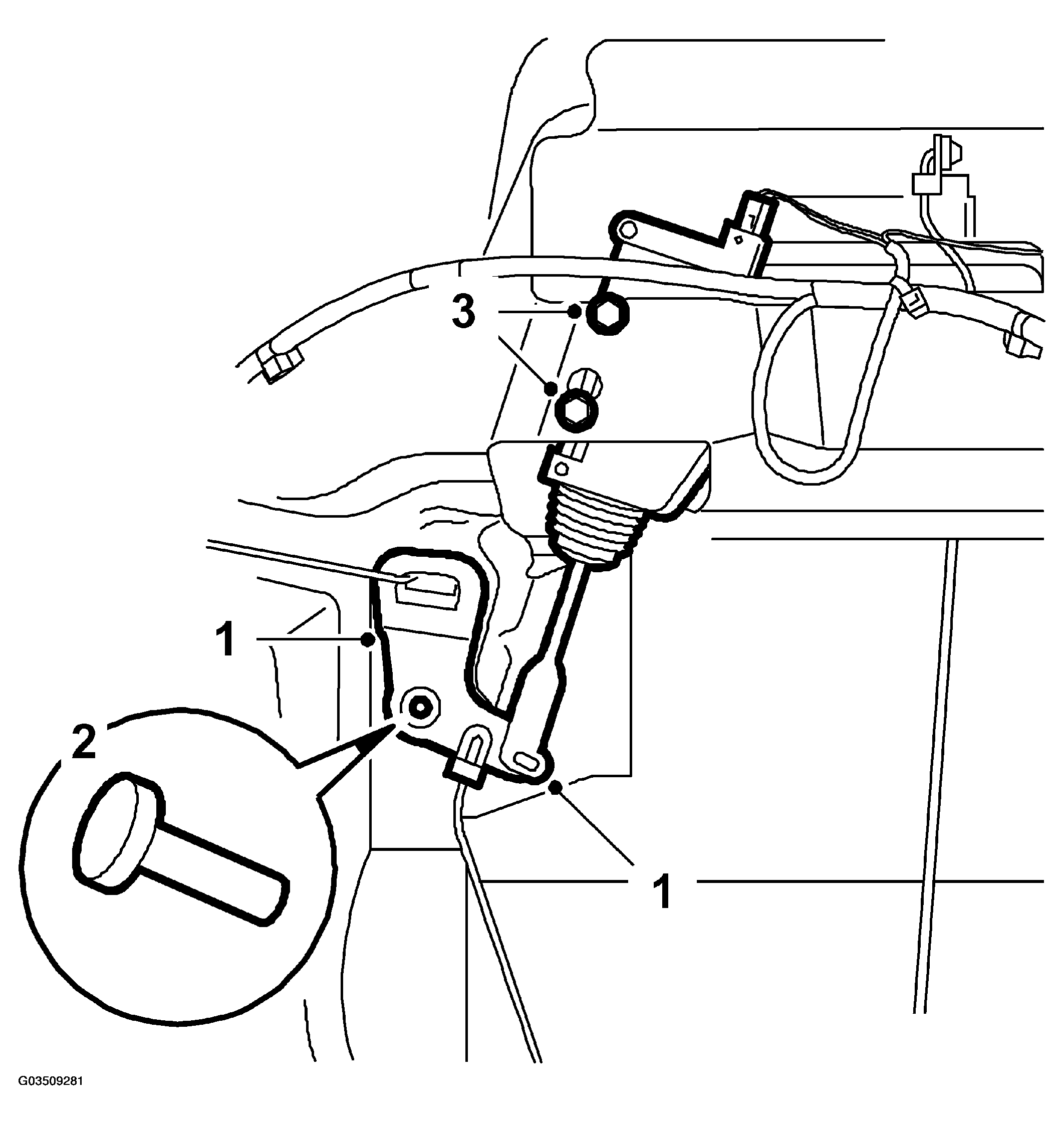

    Fig 1: Illustration For Step 1-3
    G03509281Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the expander rivet that secures the plastic hinge to the tailgate.
  3. Tighten the bolts for the lock motor.
  4. Fit the tailgate trim, see DOOR TRIM, TAILGATE .
