To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate.
  2. Remove the trim, see DOOR TRIM, TAILGATE .
  3. Remove the pull bar from the lock cylinder, fastened with clips, and leave it suspended.

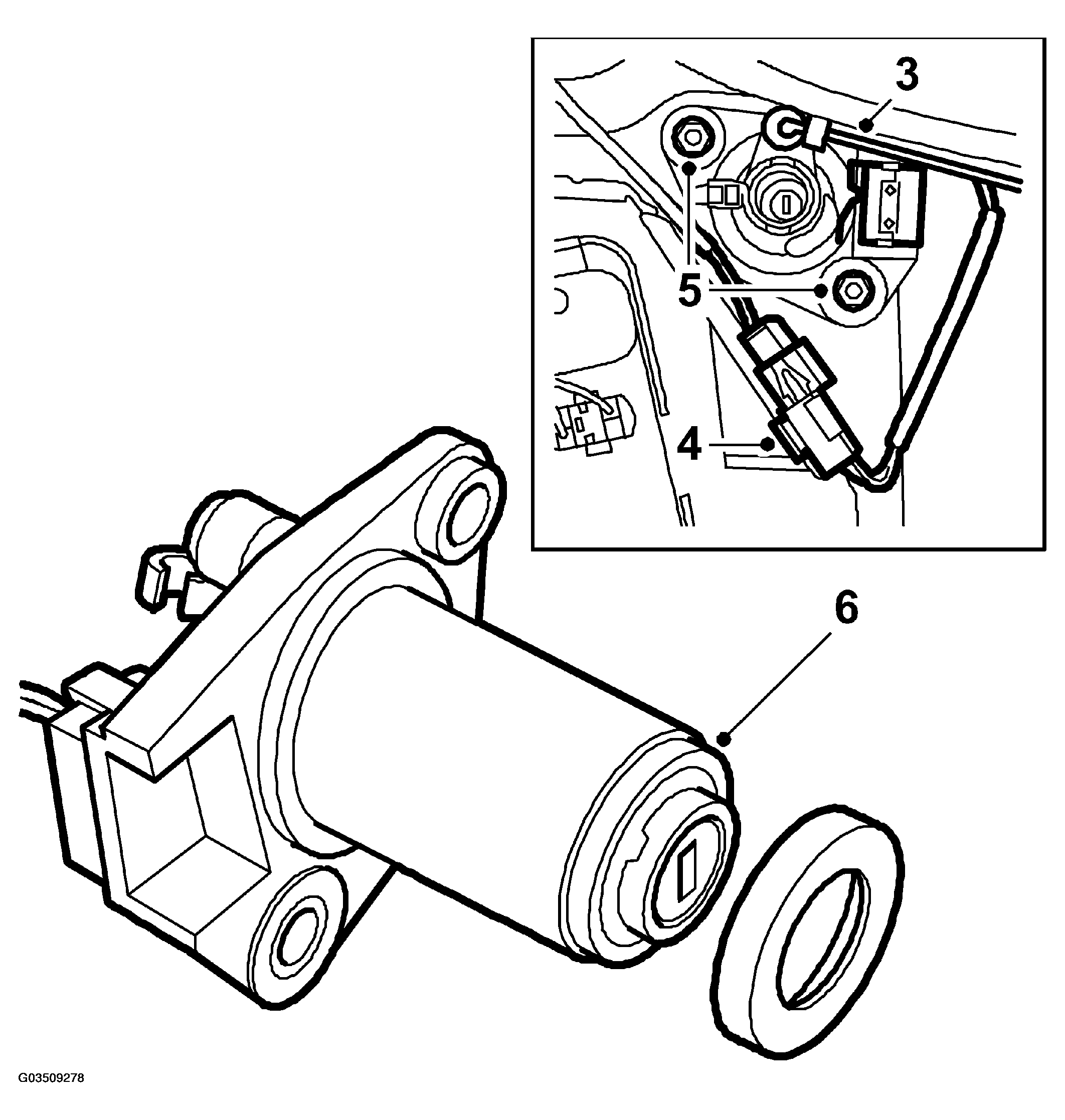

    Fig 1: Illustration For Step 3-6
    G03509278Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the microswitch by bending apart the small hooks and lift it off its groove. Alternatively, it may be sufficient to remove the microswitch connector.
  5. Remove the retainer nuts (2 pcs) that secure the lock cylinder.
  6. Remove the lock cylinder by pulling it inwards.
    NOTE: Retain the rubber seal that rests against the glass.
