To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push in the lock cylinder, make sure that the rubber seal is up against the glass.
    NOTE: Make sure that the rubber seal in the tailgate is fitted before the cylinder is pushed into position.
    The lock cylinder must be mounted with the drain hole facing down.

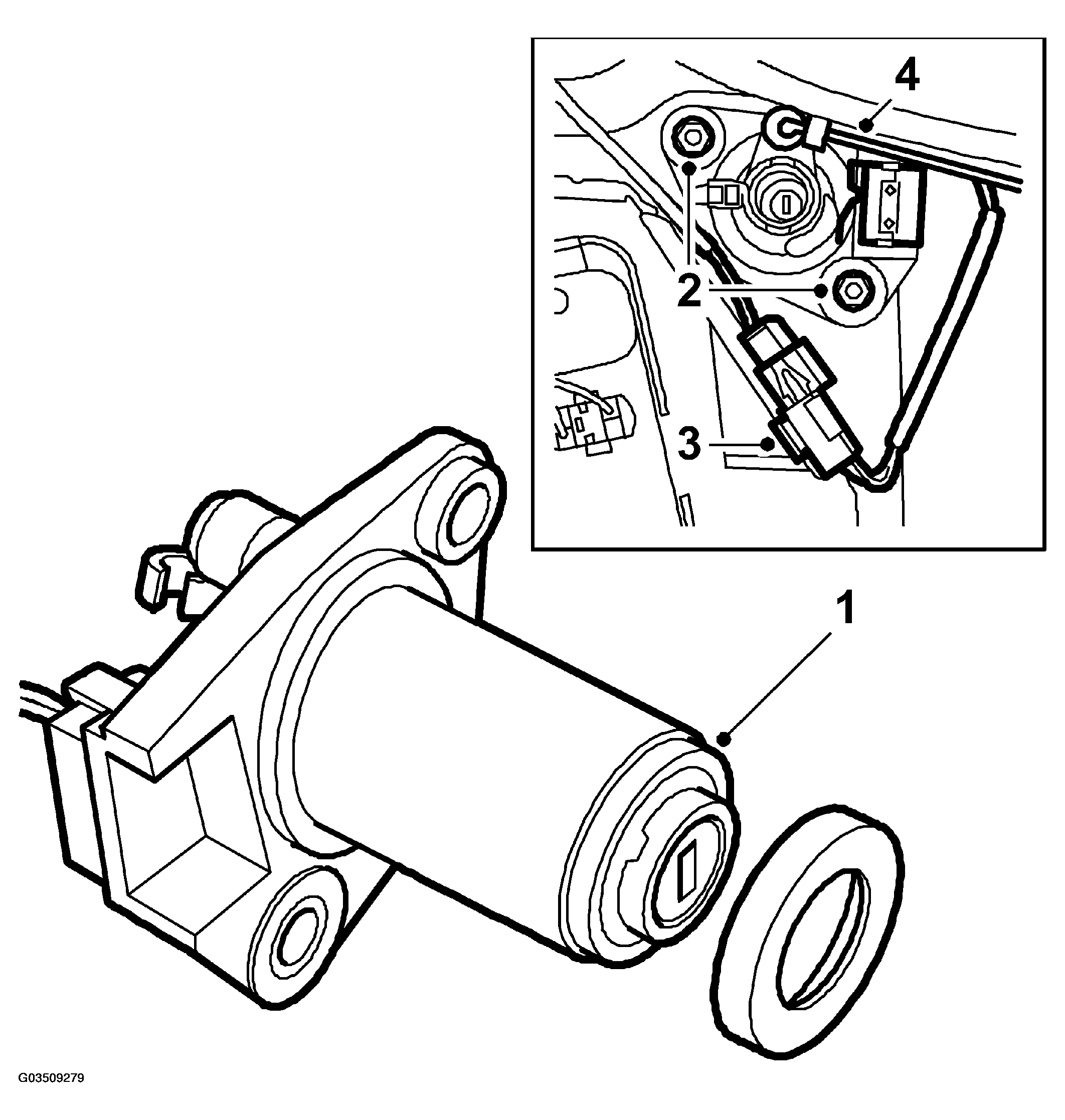

    Fig 1: Illustration For Step 1-4
    G03509279Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the retaining bolts (2 pcs) that secure the lock cylinder.
  3. Plug in the microswitch connector or fit the microswitch by the lock cylinder.
  4. Fasten the pull rod to the lock cylinder.
  5. Fit the trim, see DOOR TRIM, TAILGATE .
