To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the combined handle -lighting assembly by pushing the molding against the right clip until it snaps into place and then fasten the left clip.

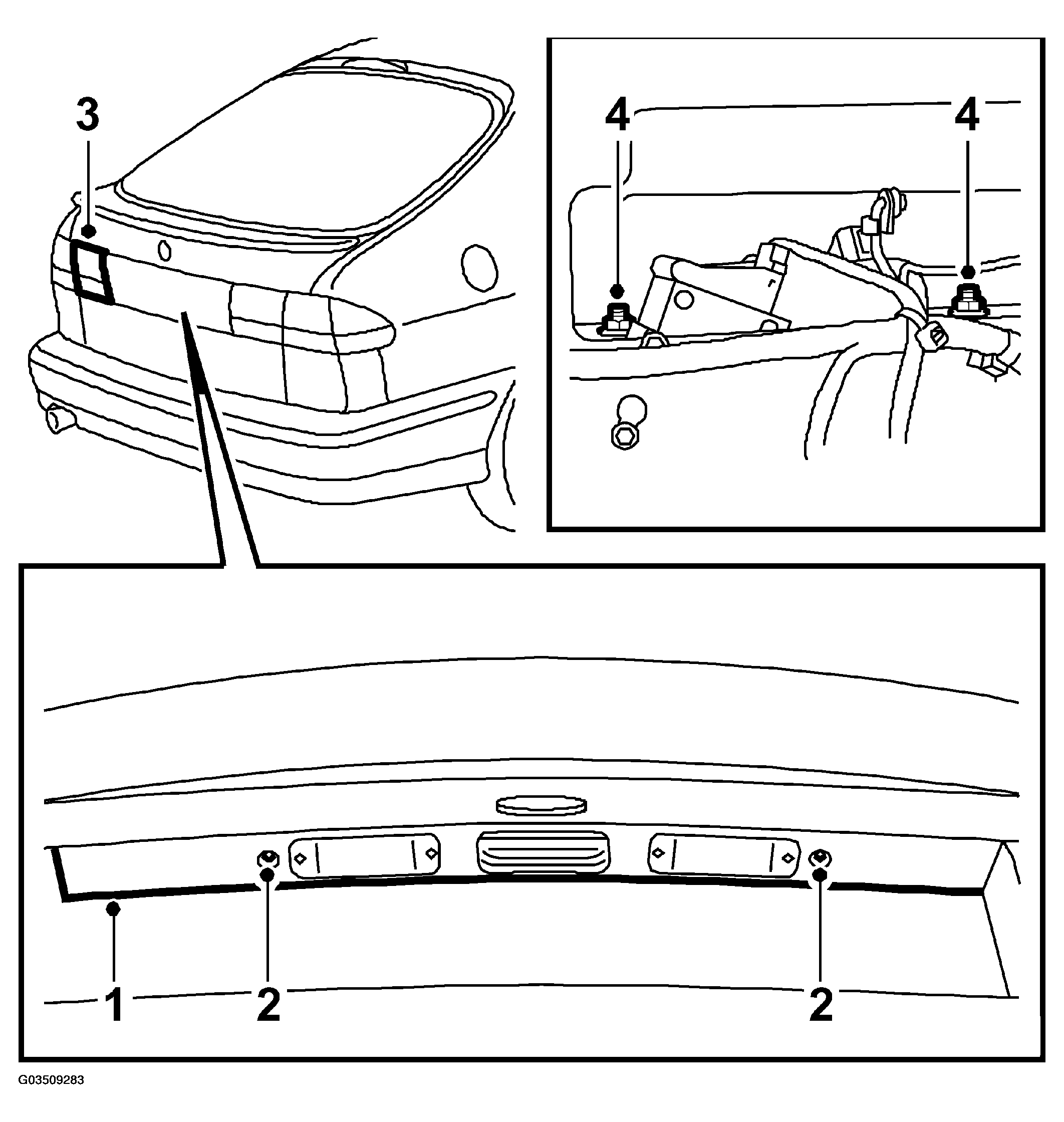

    Fig 1: Illustration For Step 1-4
    G03509283Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fasten the bolts for the license plate lighting ramp.
  3. Fit the left rear light. Fit the 3 nuts for the lamp housing and plug in the connector in the lamp holder.
  4. Fit the nuts (2 pcs) that secure the handle from the inside, beside the lock unit.
  5. Fit the pull handle to the inside of the tailgate.
  6. Fit the tailgate trim, see DOOR TRIM, TAILGATE
