To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press in the clip in the little hole using the back of a 1 mm drill bit or the like and open the cover.

    Tip:  Hold the drill bit with a pliers for sufficient force.

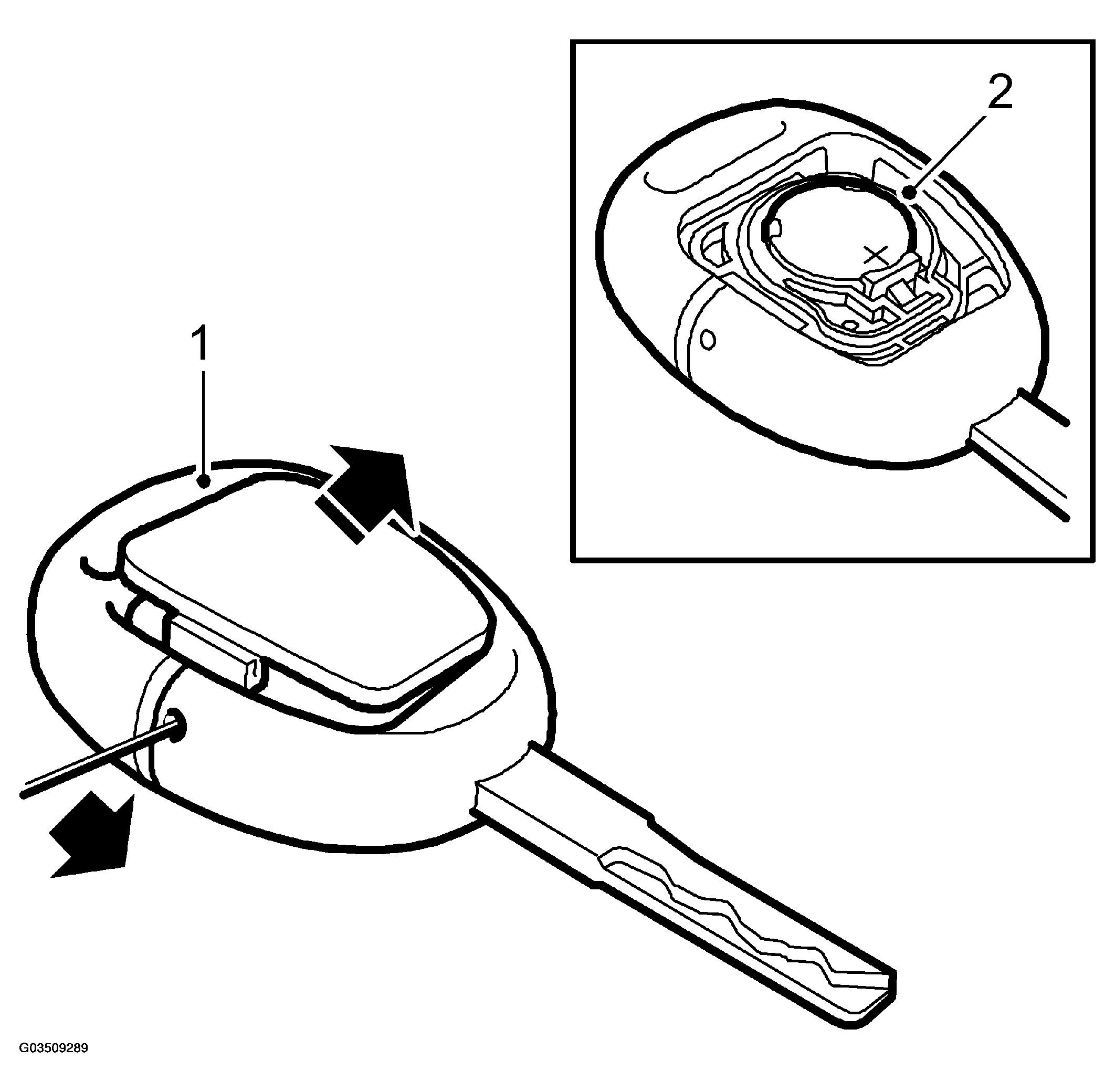

    Fig 1: Illustration For Step 1-2
    G03509289Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the battery.
  3. Remove the circuit card.

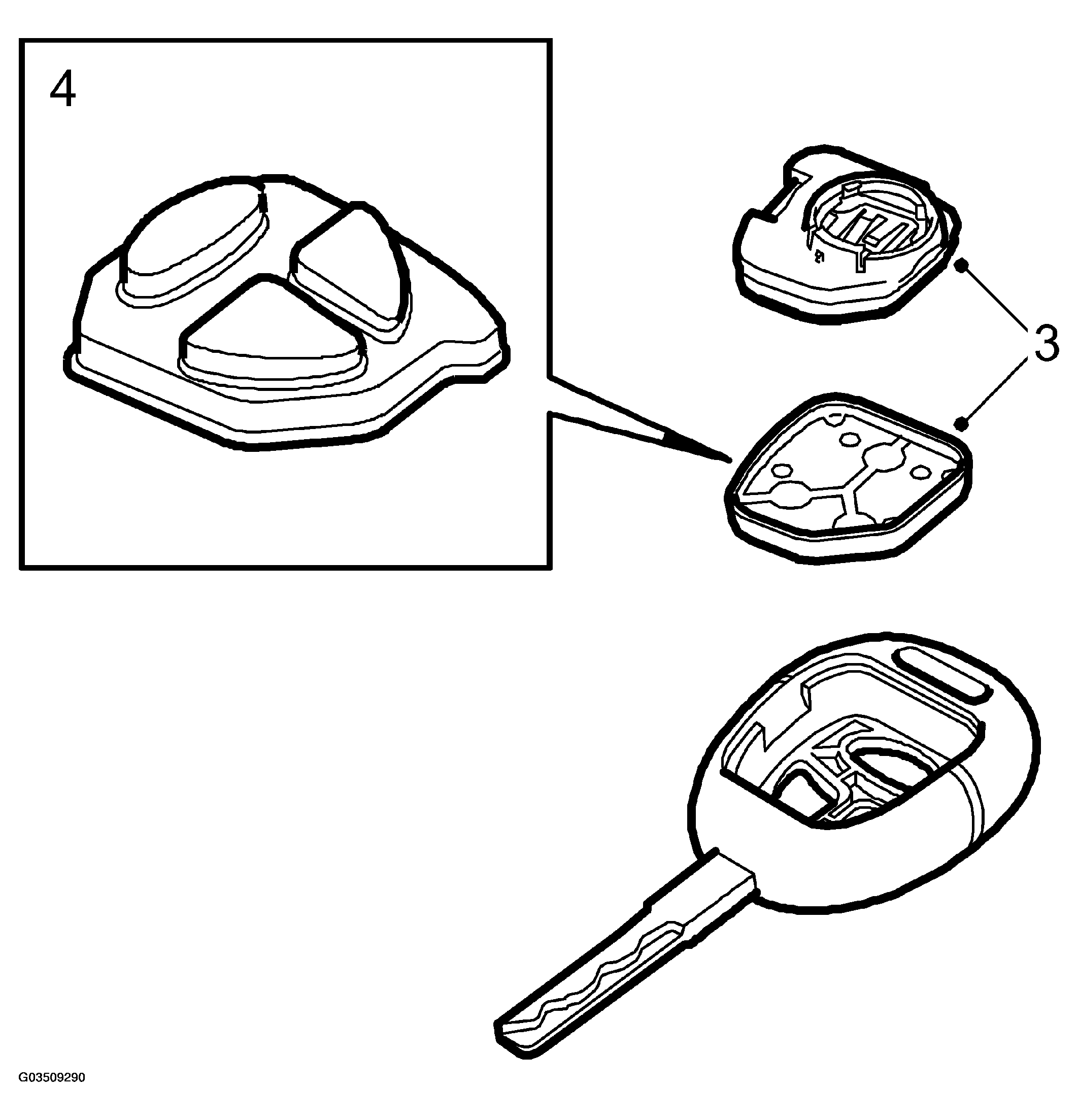

    Fig 2: Illustration For Step 3-4
    G03509290Courtesy of SAAB-SCANIA OF AMERICA, INC.
    NOTE: Be careful not to touch the circuit card with you fingers.
  4. Remove the keypad.
