To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door so that the grommet for the rear door wiring harness in the B-pillar is accessible.
  2. Pull out the wiring harness rubber passage from the B-pillar.

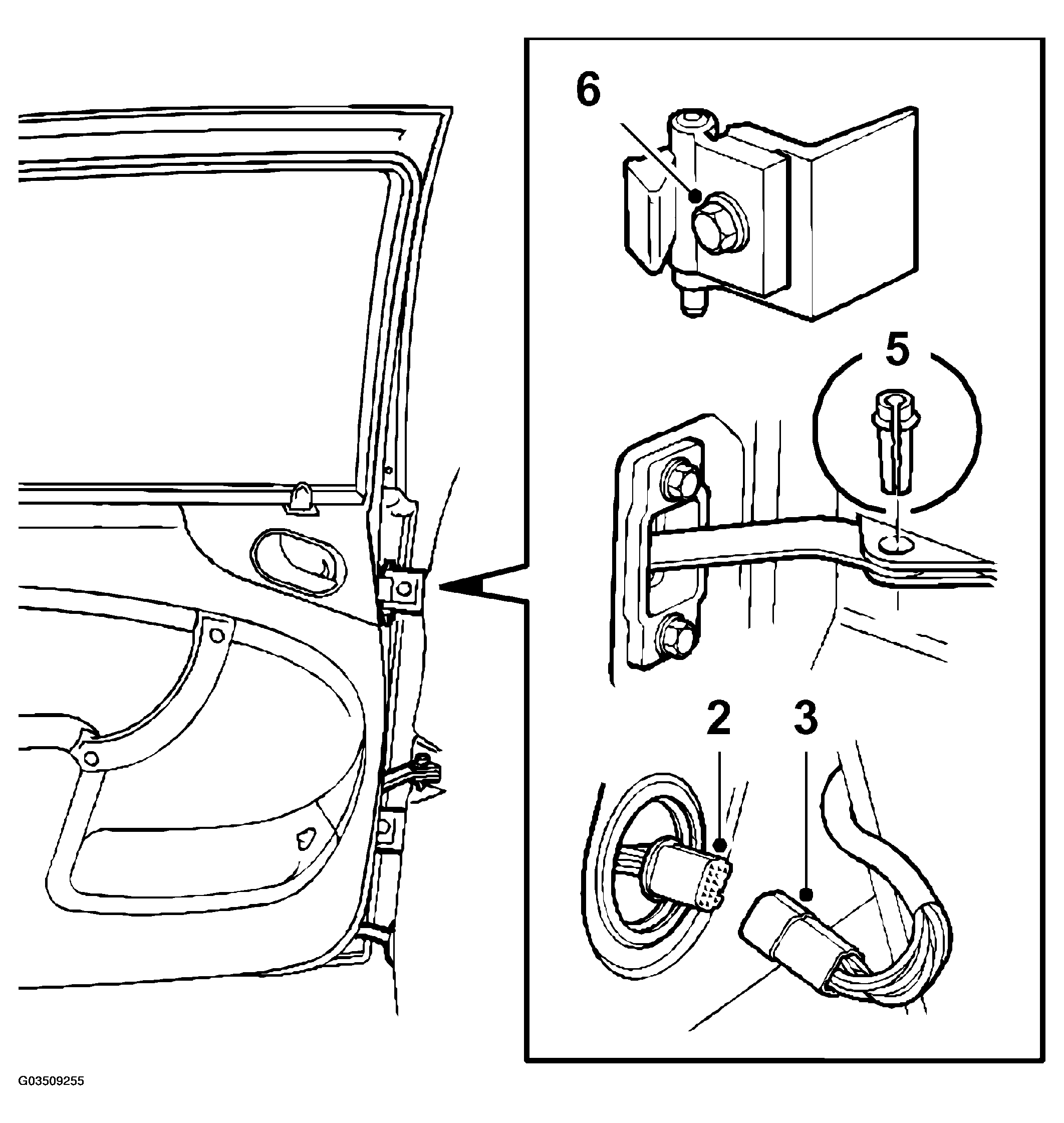

    Fig 1: Illustration For Step 2-6
    G03509255Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Pull out the connectors and unplug.
  4. Open the rear door.
  5. Drive out the bushing from the door stop.
  6. Remove the hinge bolts.
  7. Carefully lift the door off its hinges. The door must be opened completely before it can be removed.
