To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door handle, see DOOR HANDLE, FRONT DOOR
  2. Remove the microswitch by pulling of the clip and lifting the microswitch from its groove.

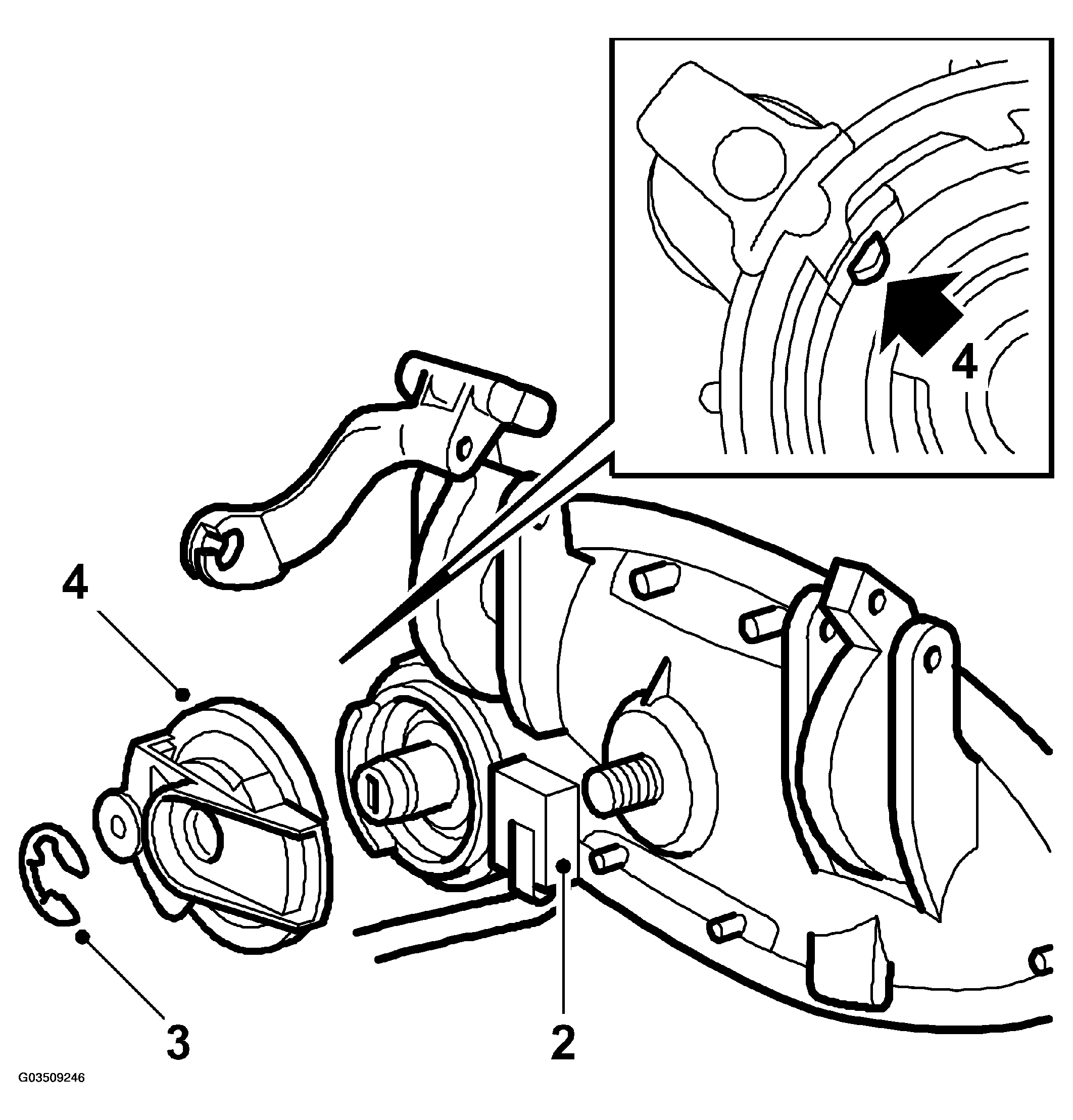

    Fig 1: Illustration For Step 2-4
    G03509246Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the circlip securing the lock arm to the lock cylinder with circlip pliers.
  4. Lift off the lock arm. Make sure that the roller remains in the lock arm.
  5. When the lock arm is removed, a roller is released. Remove the roller from its groove and keep it safe. Remove the handle gasket.

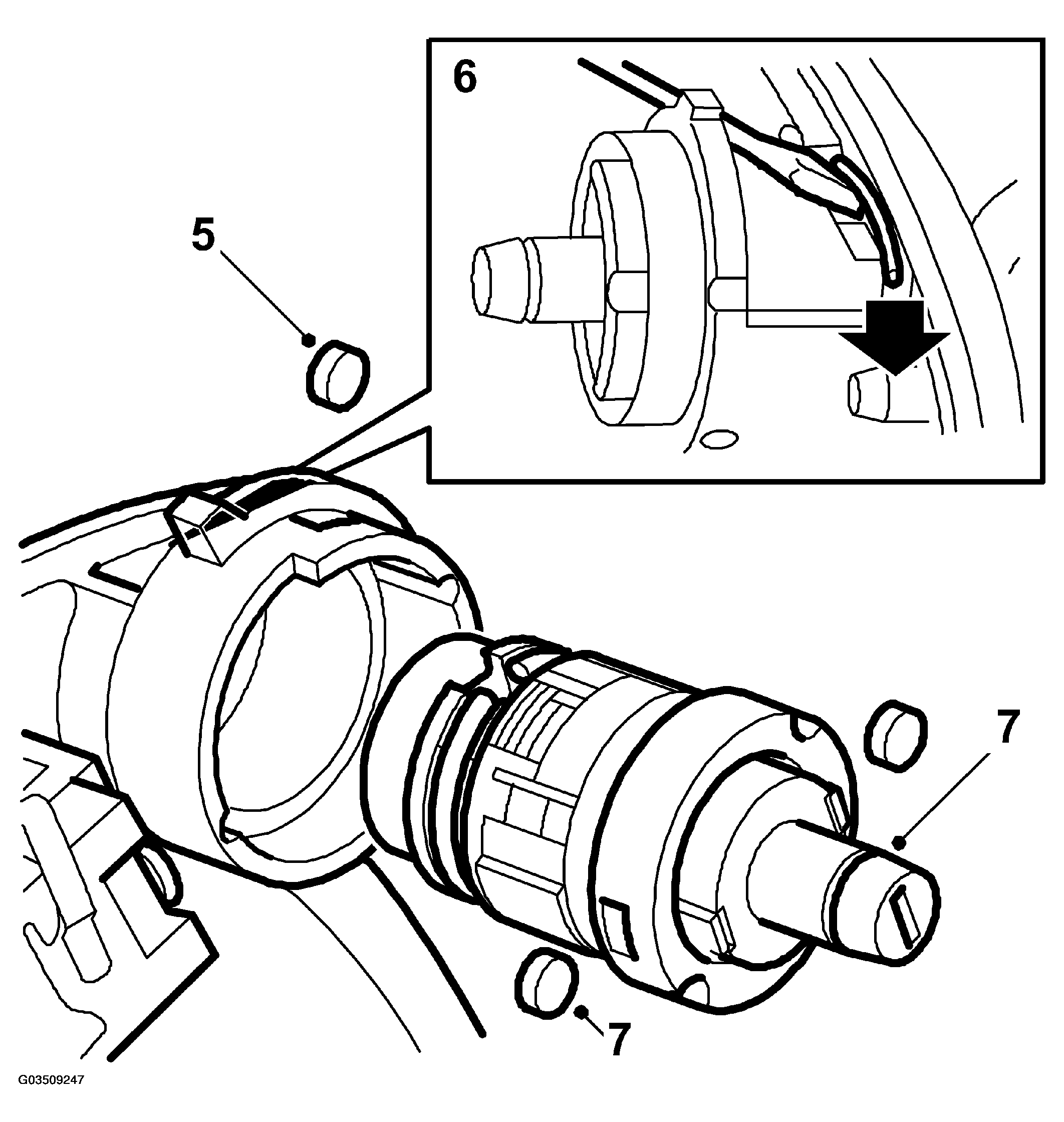

    Fig 2: Illustration For Step 5-7
    G03509247Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Use a screwdriver and pull out an end of the circlip which locks the lock cylinder to the handle. Select the end pointing towards the end of the handle, closest to the cylinder. When the end of the circlip is visible in the opening (drain hole), bend it out so that it can be gripped with pliers. Pull out the circlip, without scratching the handle, and throw away the circlip.
  7. Press out the lock cylinder and retain the two remaining rollers that are now released.
