Hinges, tailgate: Adjustment

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: In order to adjust the hinges for the tailgate, the headlining must first be loosened to expose the hinges.
  1. Open the tailgate.

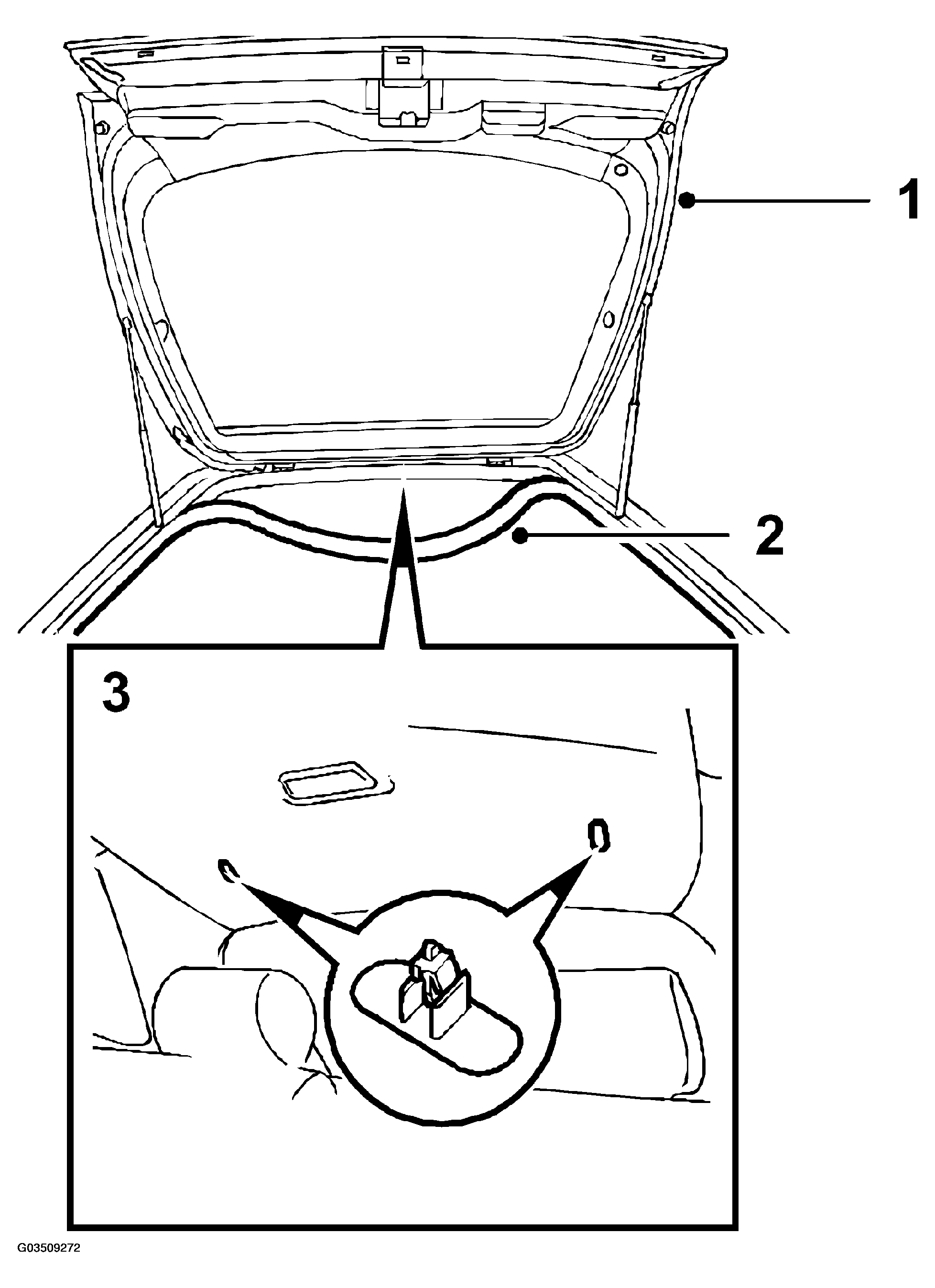

    Fig 1: Illustration For Step 1-3
    G03509272Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the door seal at the roof.
  3. Loosen the rear edge of the headlining by removing the two clips (turn them 90° and pull them out).
  4. Fold down the trim so that the bolts in the tailgate hinge mountings become visible.

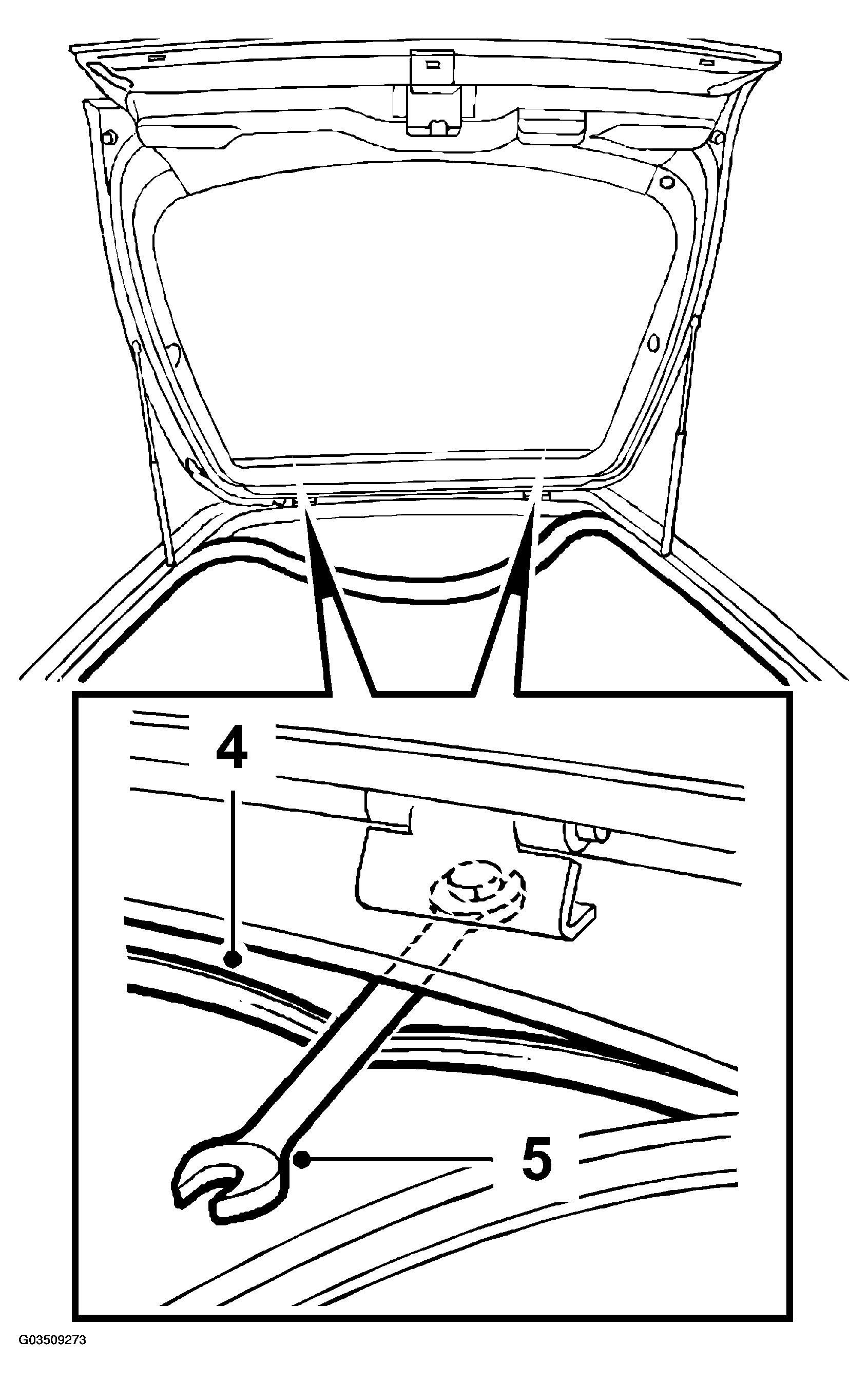

    Fig 2: Illustration For Step 4-5
    G03509273Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Undo the bolts and adjust the tailgate.
  6. After adjustment:  Tighten the bolts.

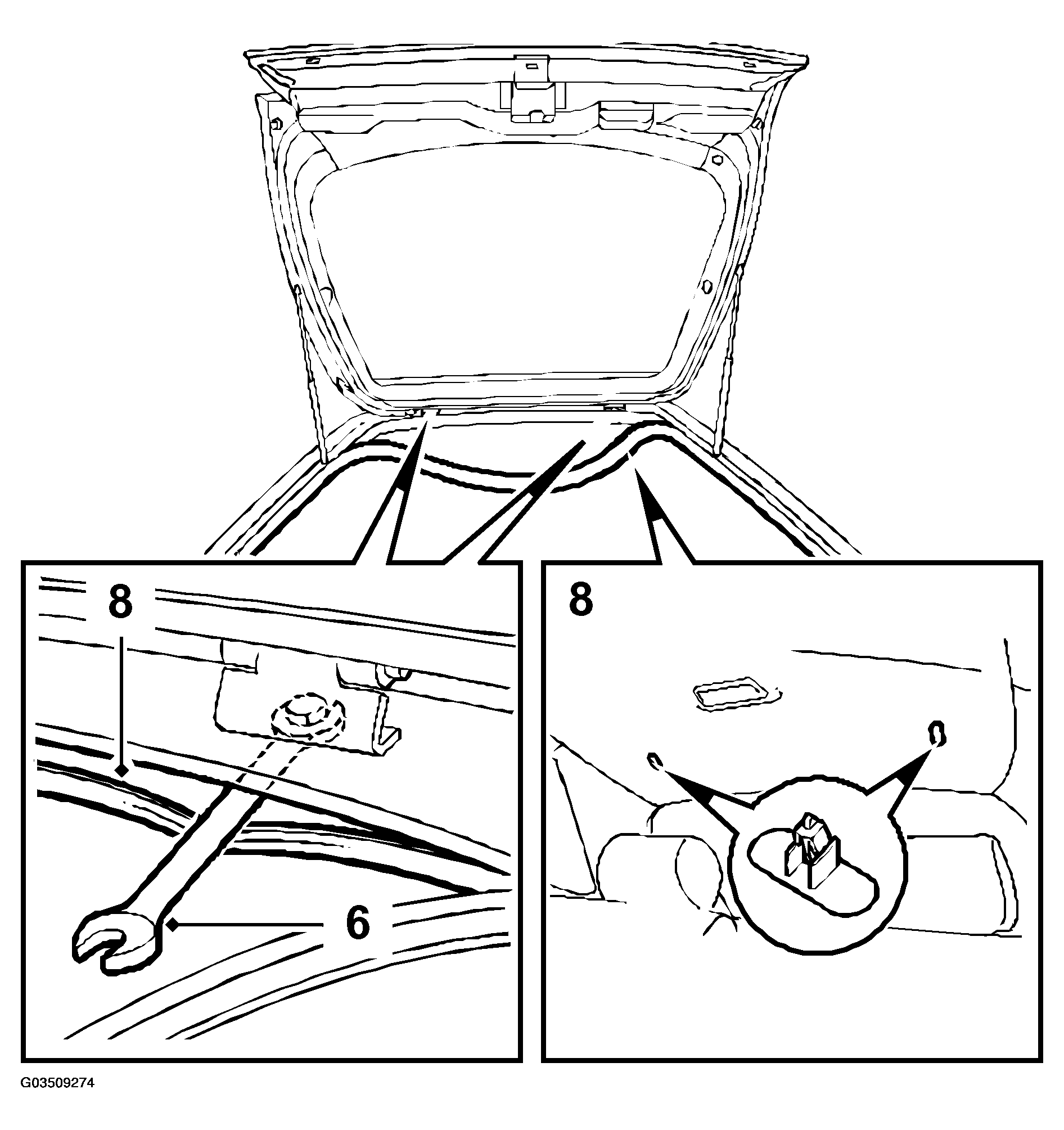

    Fig 3: Illustration For Step 6-8
    G03509274Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Touch up the paint by the hinges if necessary.
  8. Fold the trim back in place and fit the retainer clips for the headlining.
  9. Fit the door seal, use a rubber mallet if necessary.

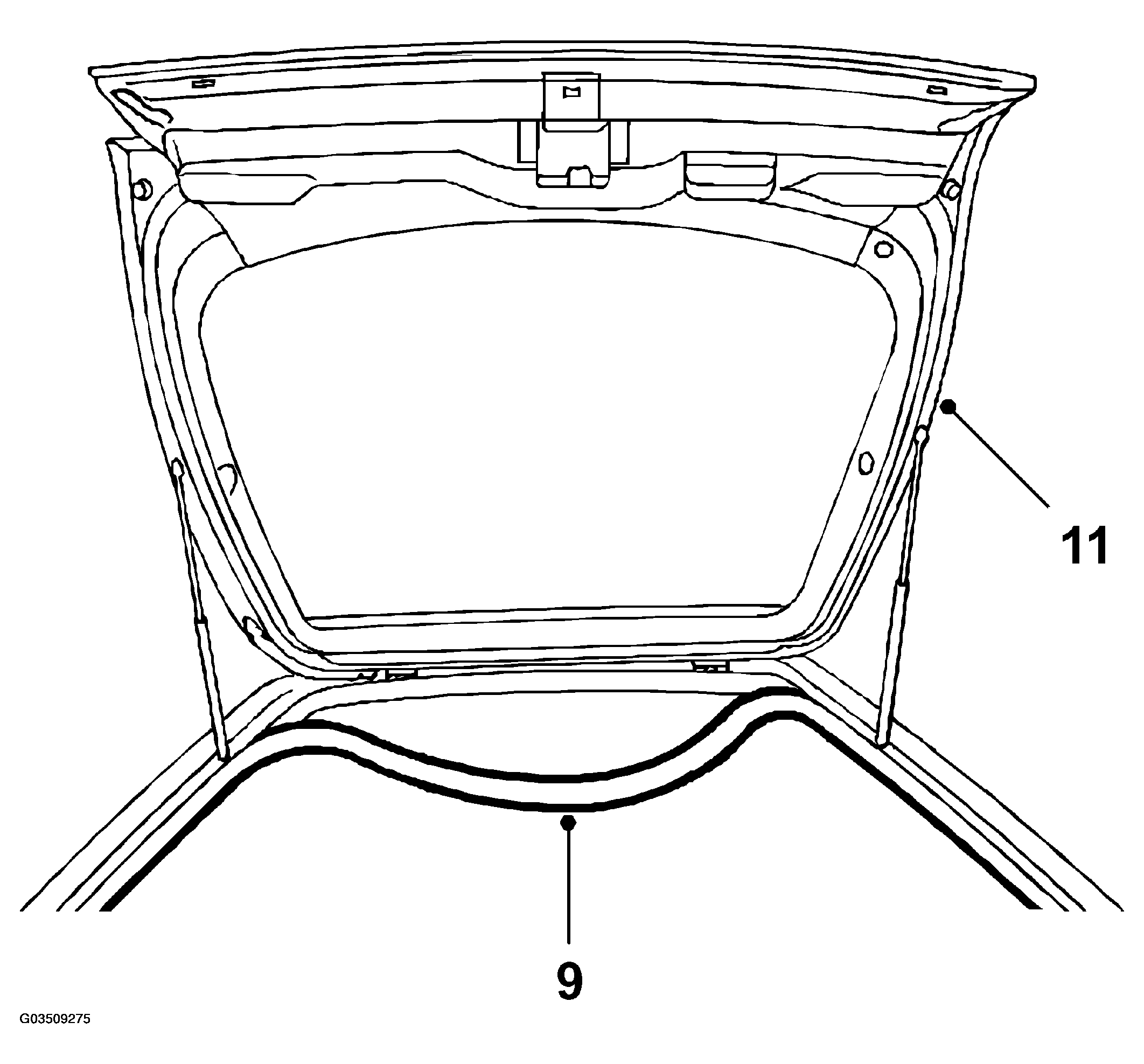

    Fig 4: Illustration For Step 9-11
    G03509275Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Fold the door seal outside the headlining.
  11. Close the tailgate.
