To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unplug the wiring harness connector in the door (bayonet fitting).

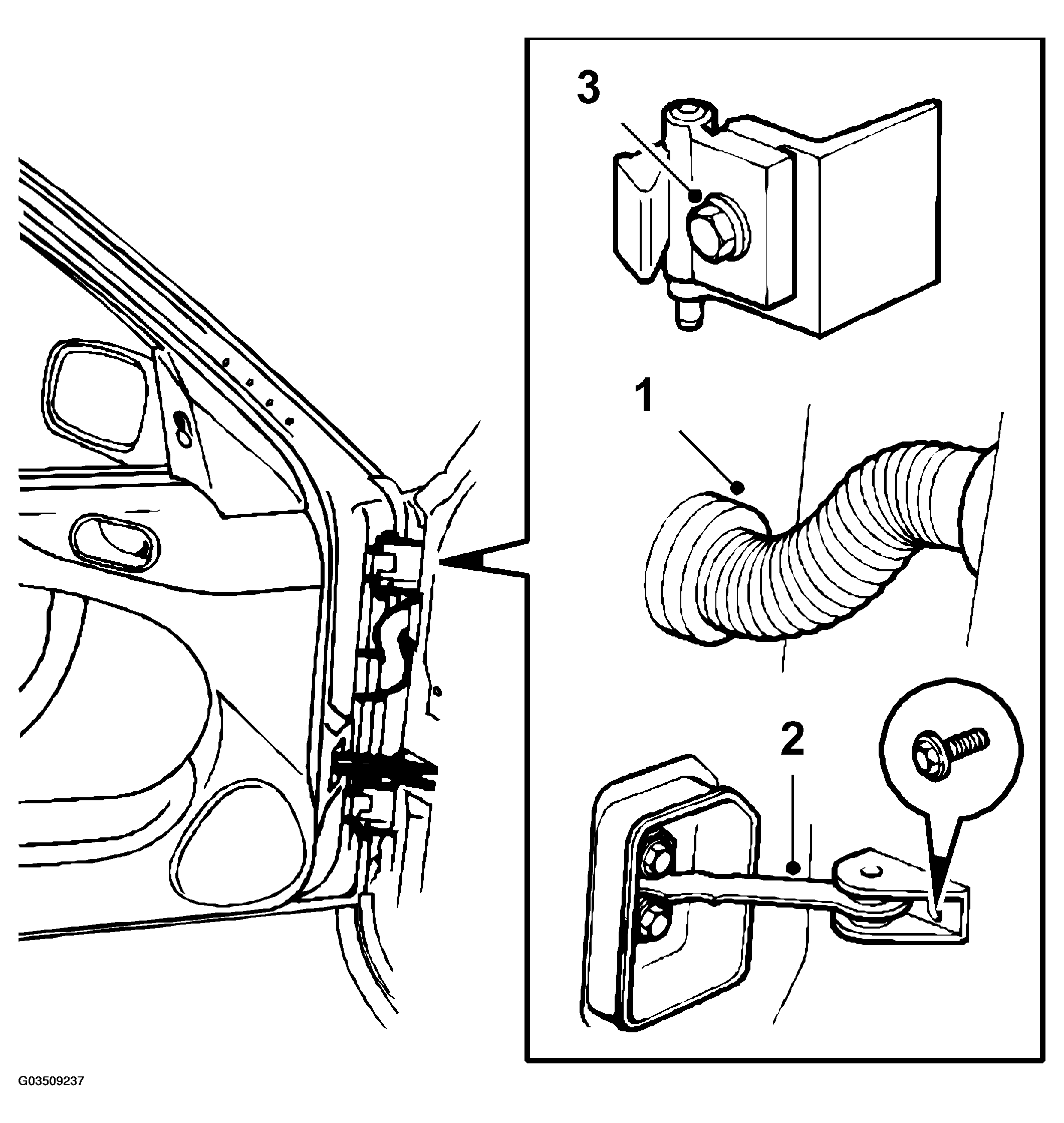

    Fig 1: Illustration For Step 1-3
    G03509237Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the door stop from the A-pillar.
  3. Remove the hinge bolts.
    IMPORTANT: Carefully lift the door off its hinges.
