To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the gas springs from the boot lid.

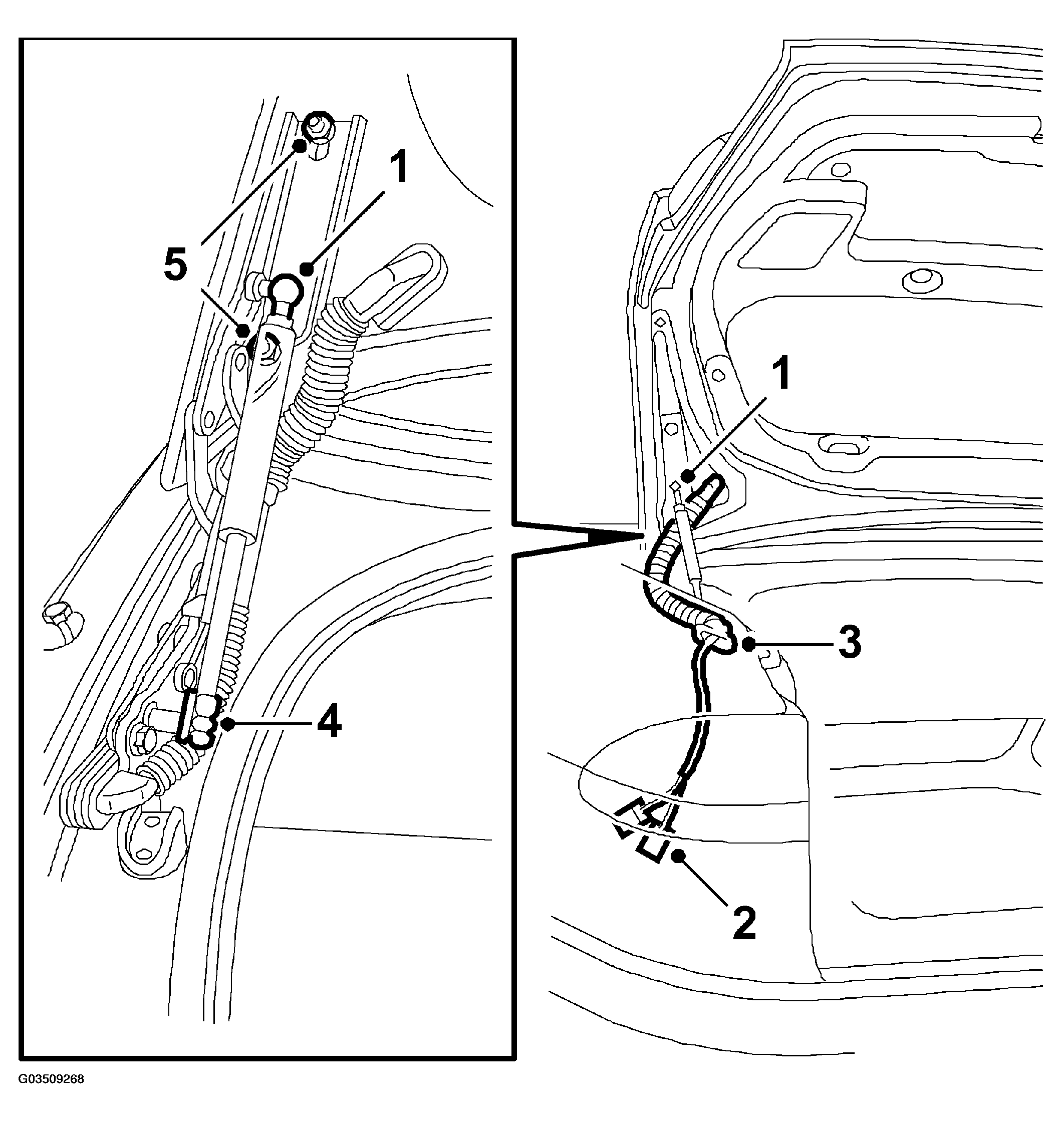

    Fig 1: Illustration For Step 1-5
    G03509268Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fold down the luggage compartment trim by the left rear light and unplug the luggage compartment wiring harness.
  3. Remove the wiring harness grommet from the side panel.
  4. Remove the left gas spring from the ball joint by the side panel.
  5. Remove the nuts securing the boot lid to the hinges and remove the boot lid with assistance from another person.
