To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the boot lid and tighten the nuts.

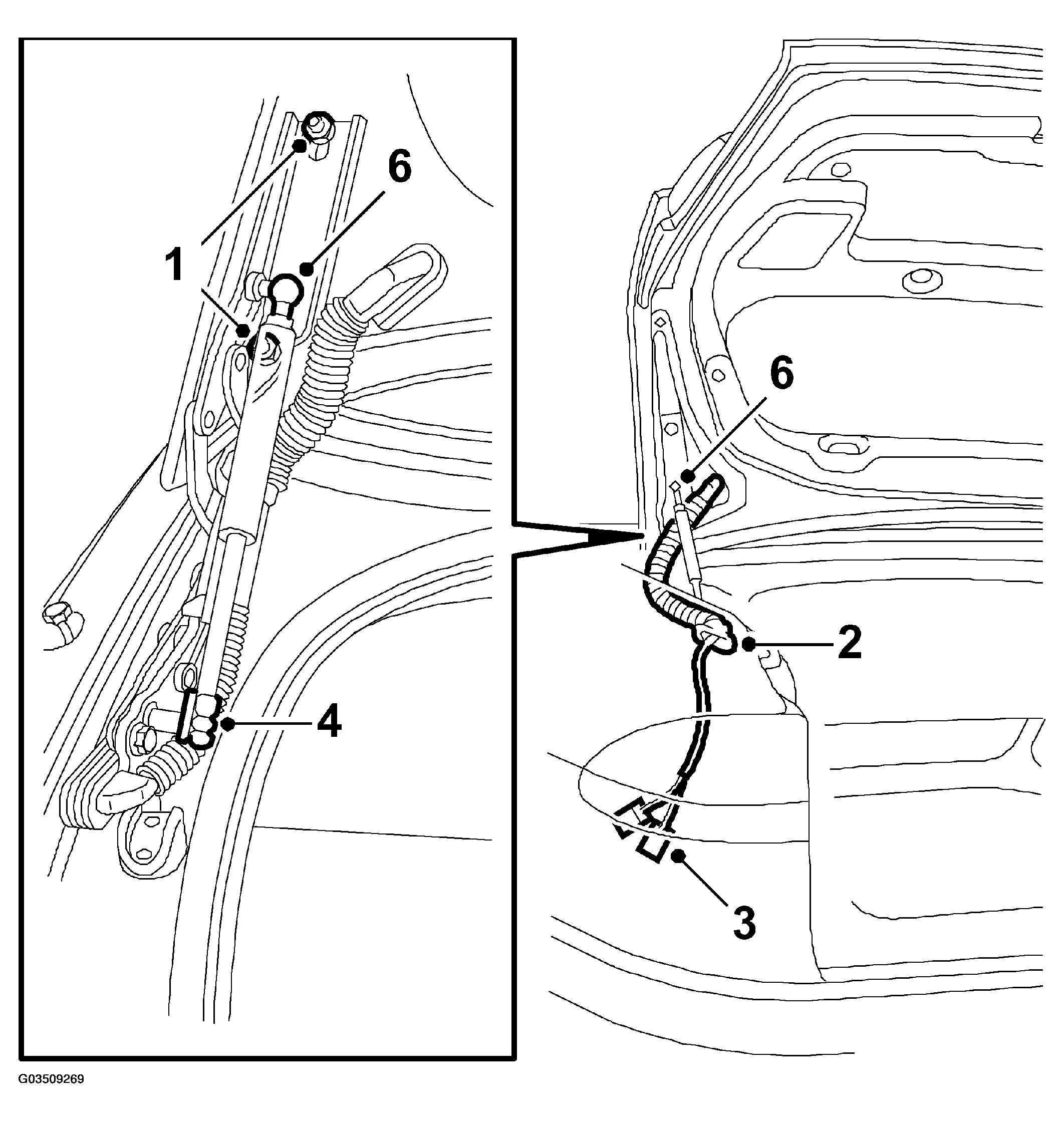

    Fig 1: Illustration For Step 1-6
    G03509269Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Insert the wiring harness in the side panel and fit the grommet.
  3. Plug in the wiring harness.
  4. Fit the left gas spring to the ball joint by the side panel.
  5. Fit the luggage compartment trim.
  6. Fit the gas springs to the boot lid.
