To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the gas spring from the ball joint on the boot lid.

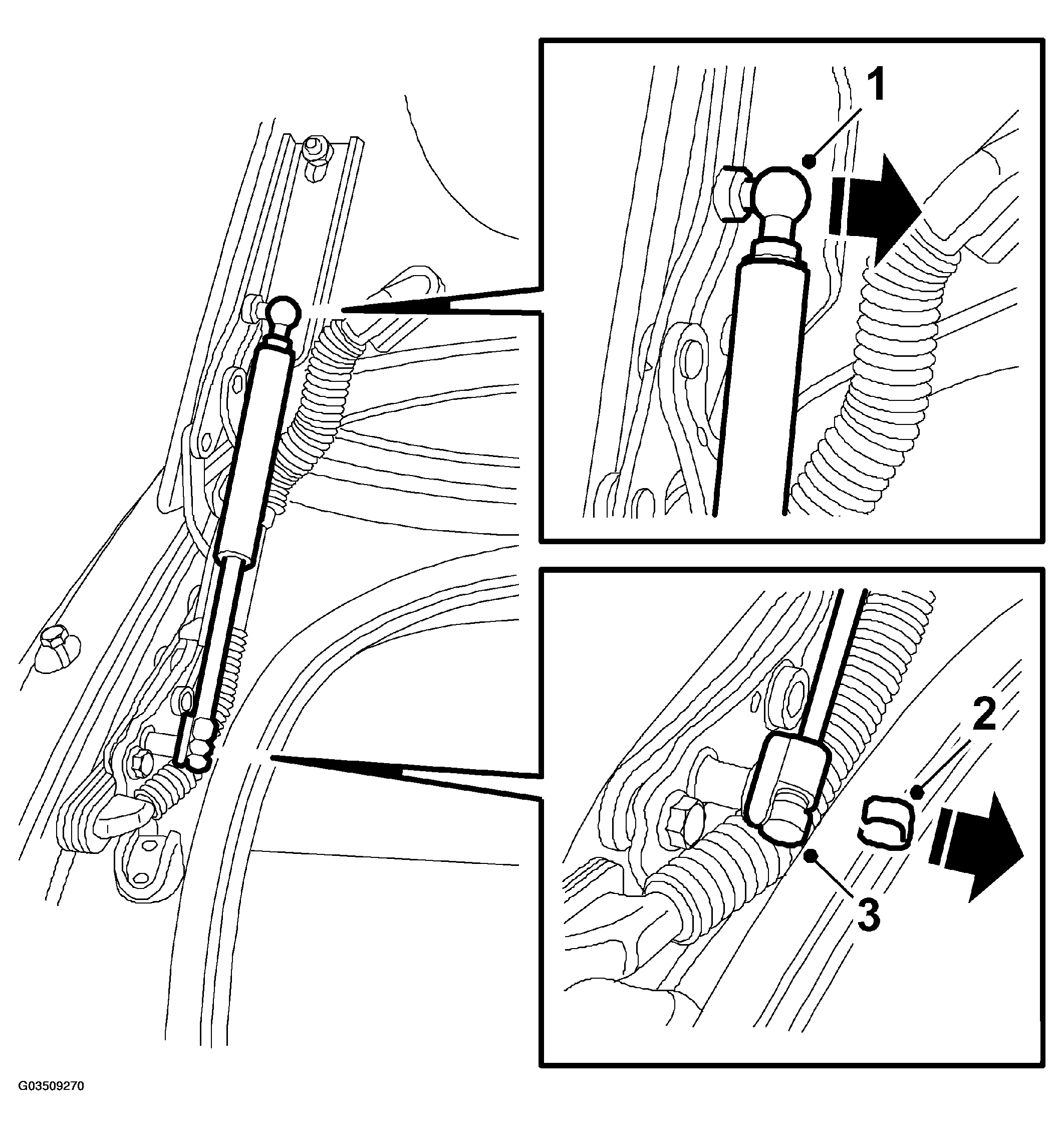

    Fig 1: Illustration For Step 1-3
    G03509270Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the clip from the gas spring mounting in the side panel.
  3. Remove the gas spring from the ball joint.
