To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the gas spring on the ball joint by the side panel.

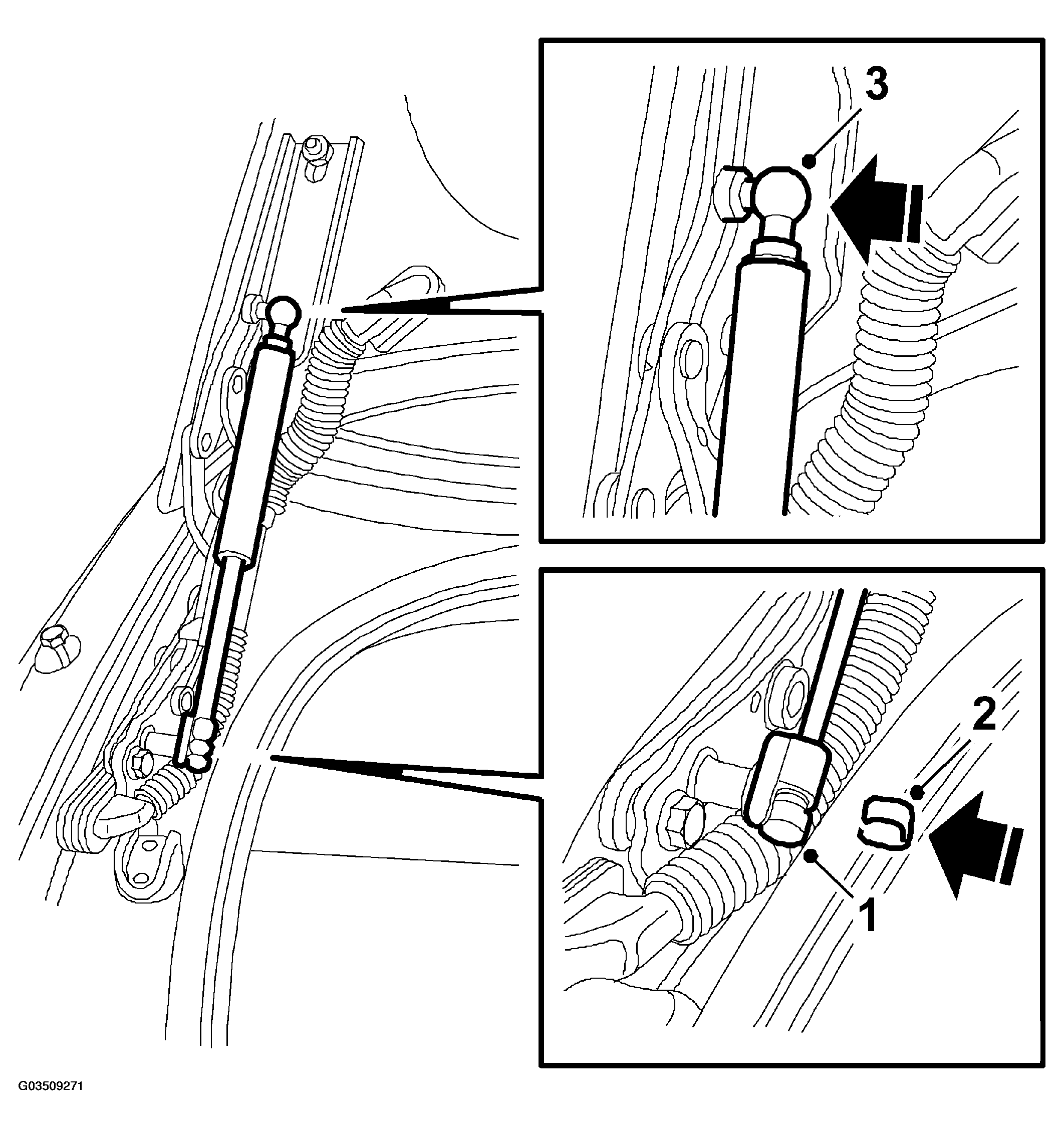

    Fig 1: Illustration For Step 1-3
    G03509271Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Press on the clip.
  3. Fit the gas spring on the ball joint by the boot lid.
