To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Fitting of a new bonnet-release cable is facilitated by a pull-through, consisting of a thin steel wire with a loop at the end, that is either pushed through the bulkhead or pulled through the bulkhead with the cable to be replaced.
  1. Pull the pull-through cable through the bulkhead and hook the bonnet-release cable to the loop.
    NOTE: Secure with tape and lubricate the cable with vaseline to facilitate fitting of the cable.
  2. Pull the bonnet-release cable through the bulkhead. Push the cable at the same time as it is pulled.
  3. Press the release-lever housing into position.

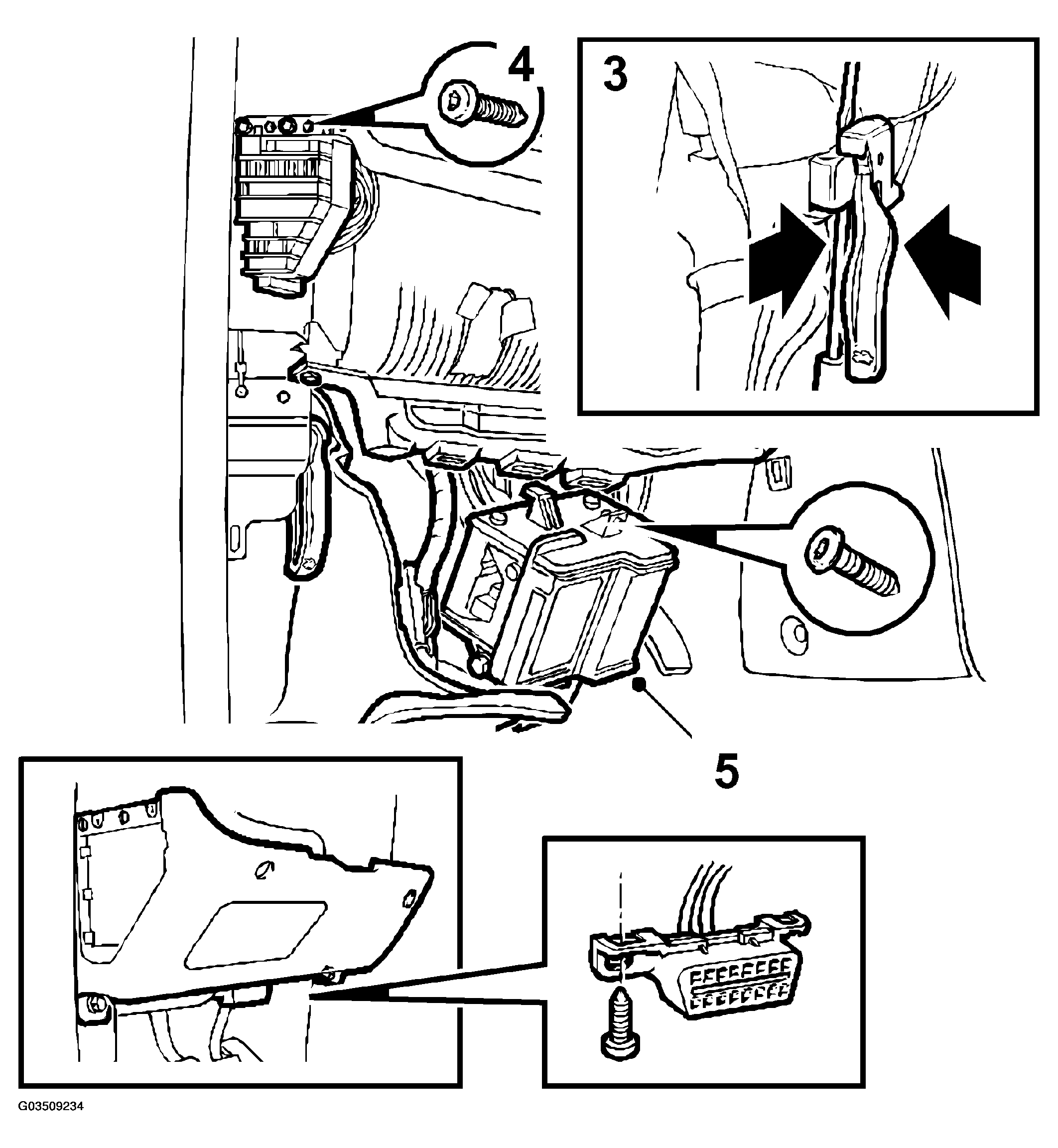

    Fig 1: Illustration For Step 3-5
    G03509234Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the fuse holder with the two retainer bolts.
  5. Fit the DICE module as follows:
    • Fit the DICE module and the relay holder.
    • Fit the air distribution ducts.
    • Fit the lower section of the instrument panel.
  6. Pull the bonnet-release cable to the radiator member via the lead-through in the bottom of the washer fluid reservoir filler opening.
  7. Guide the bonnet-release cable through the clamp and into the bonnet lock.

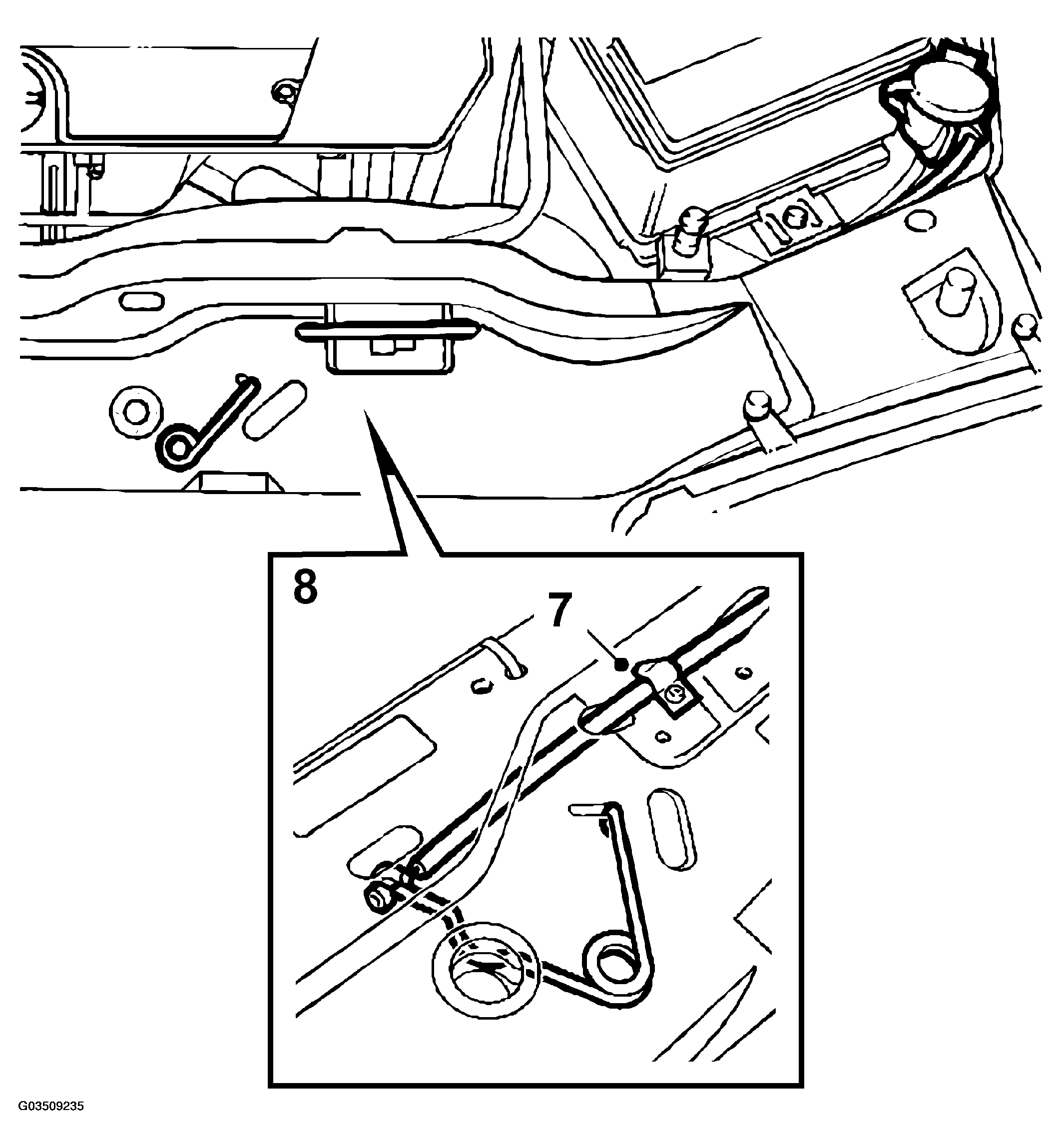

    Fig 2: Illustration For Step 7-8
    G03509235Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Tension the bonnet lock.
  9. Tension the bonnet-release cable and tighten down the clamp.
  10. Lubricate the bonnet lock spring and striker pin socket, if necessary.
  11. Check the function.
