To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the bonnet.
  2. Remove the bonnet lock spring from its pretensioned position.

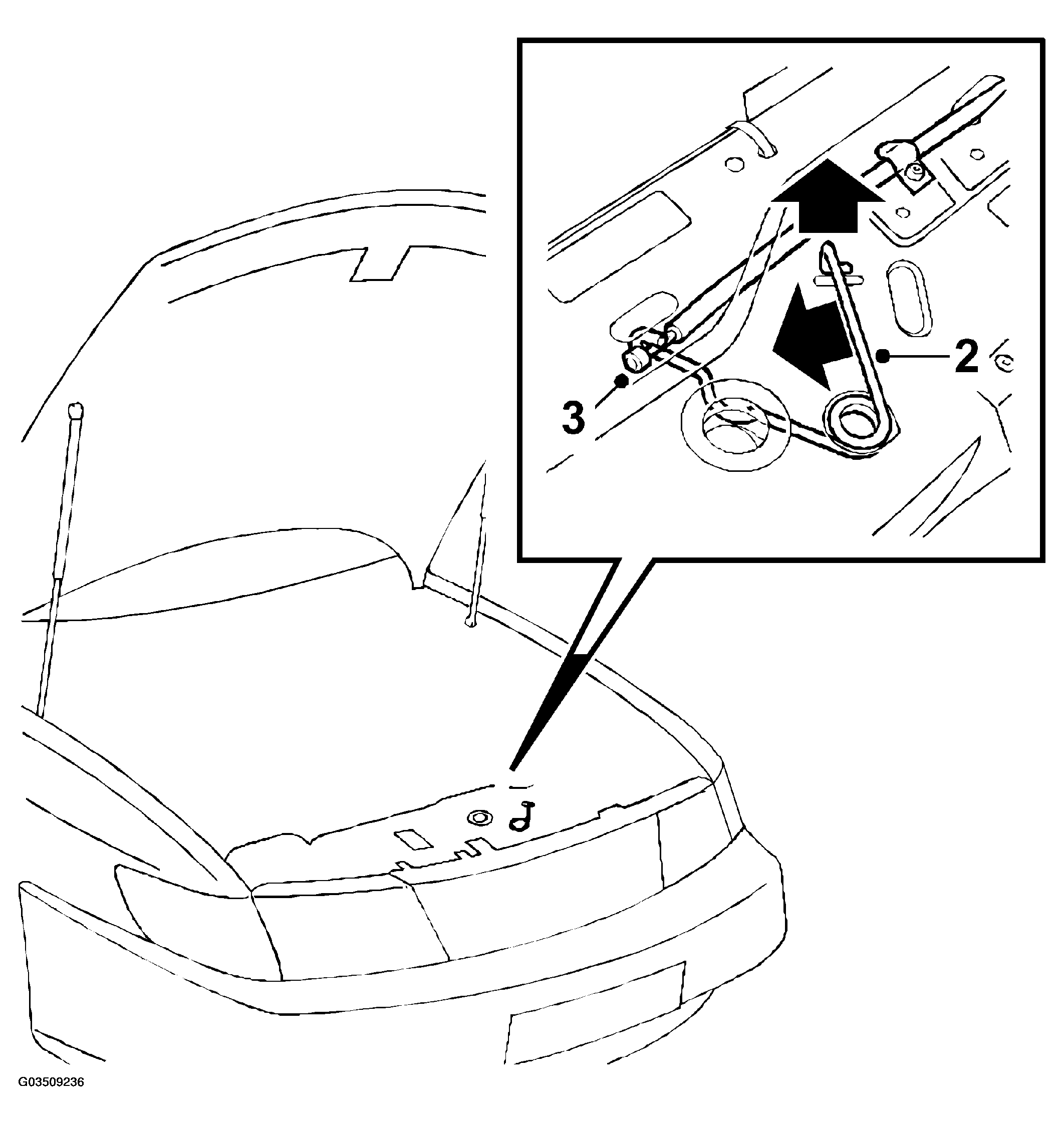

    Fig 1: Illustration For Step 2-3
    G03509236Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unhook the bonnet-release cable from the bonnet lock spring.
  4. Remove the bonnet lock spring by removing it from the front member.
