To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the bonnet and remove the windscreen wipers.
    NOTE: The wipers are of differing length, mark the wiper position before removing.

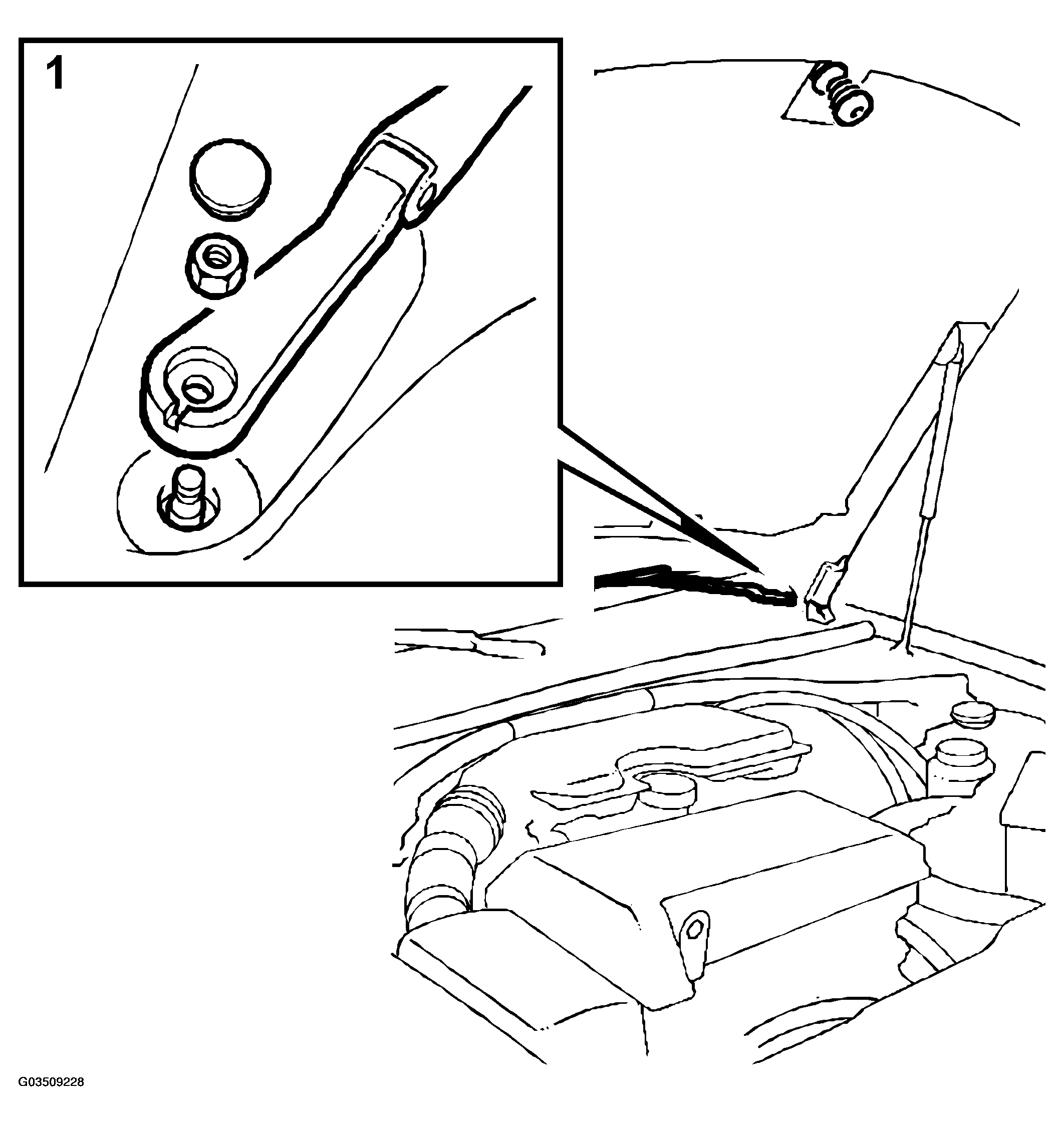

    Fig 1: Illustration For Step 1
    G03509228Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the bonnet seal molding by the bulkhead.

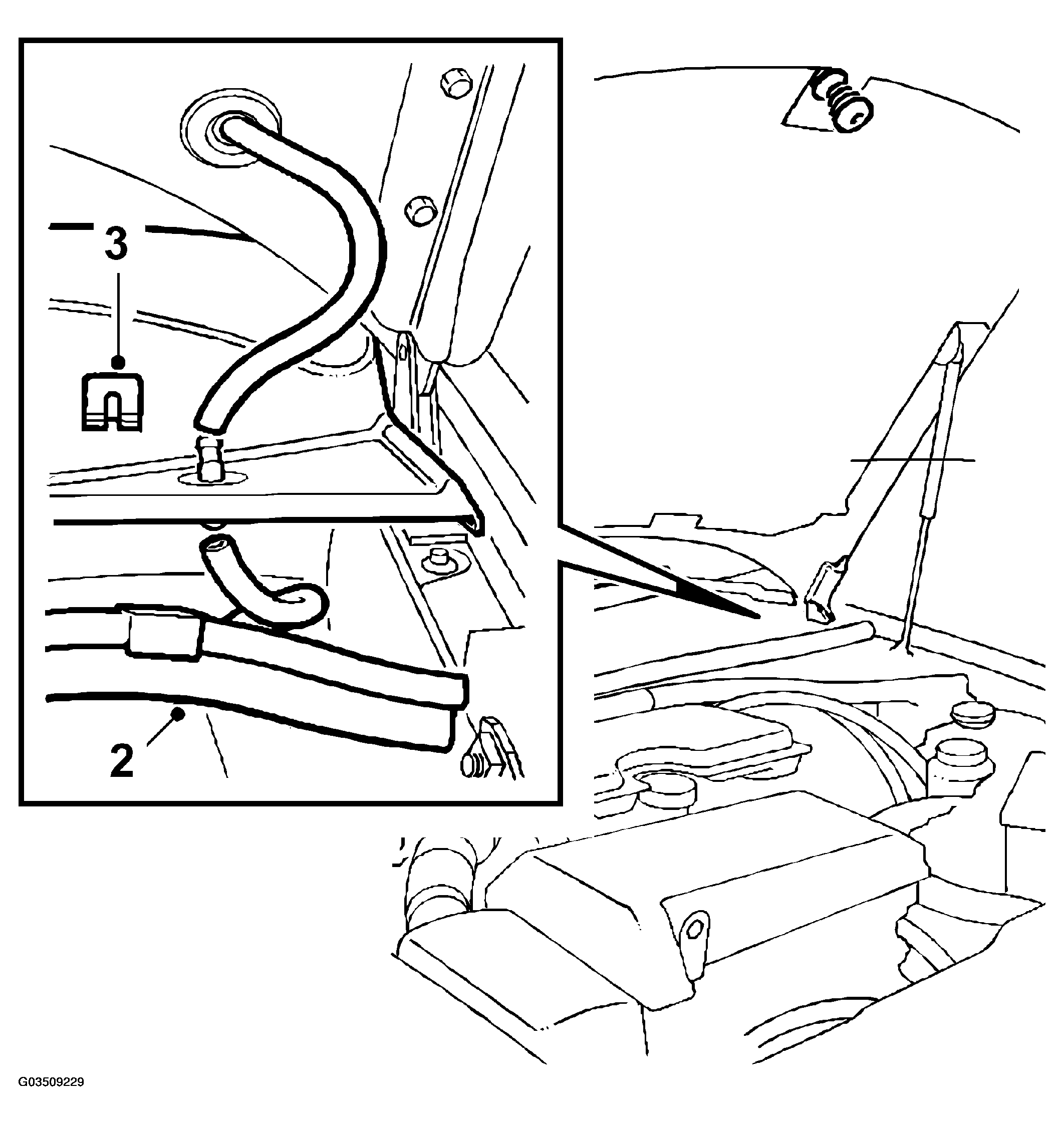

    Fig 2: Illustration For Step 2-3
    G03509229Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the cover panel (2 retaining bolts).
  4. Protect the bonnet and the front wings and remove the hinge from the bonnet.

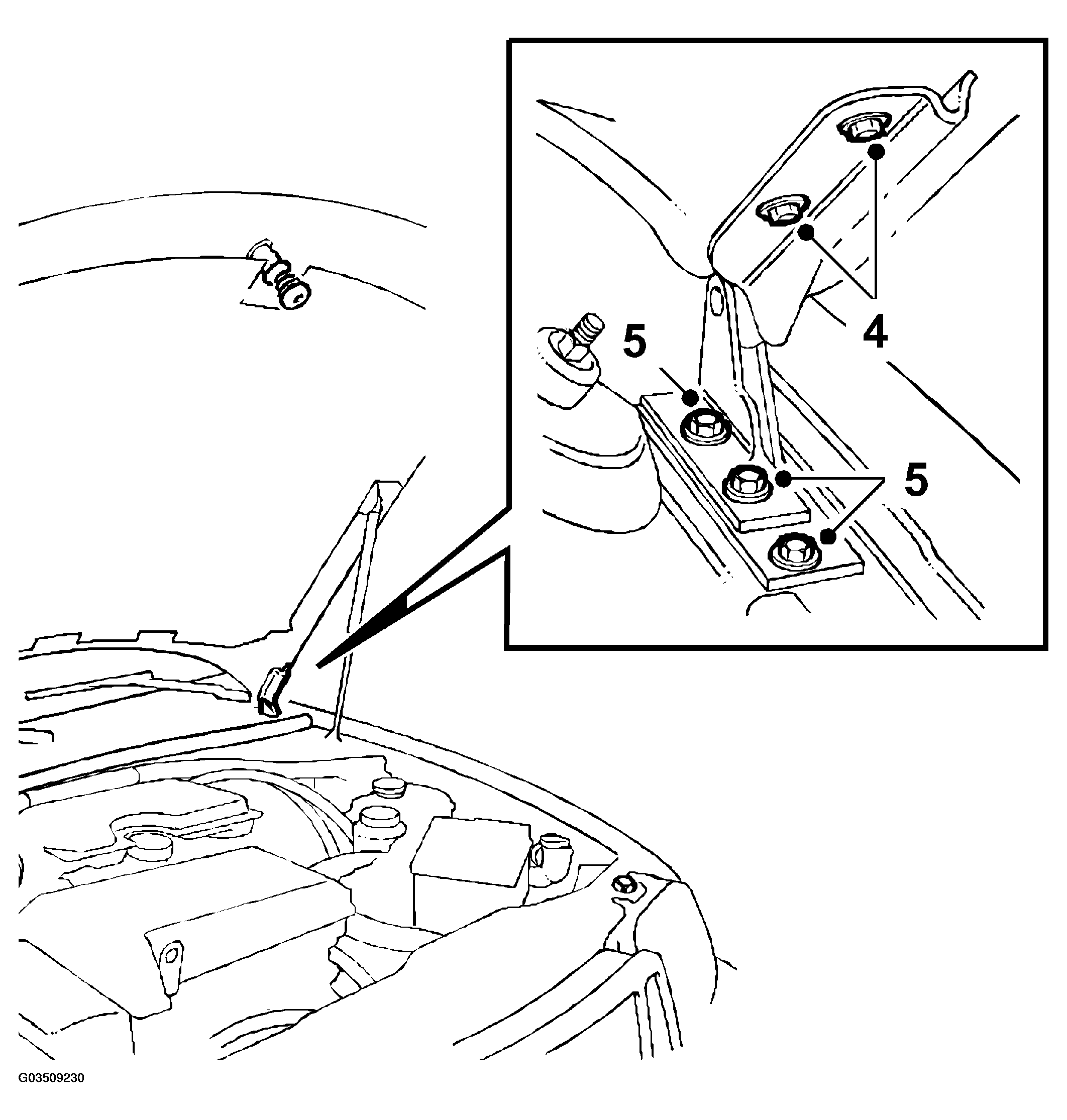

    Fig 3: Illustration For Step 4-5
    G03509230Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the hinge from the front wing (3 retainer bolts, the sheet metal bolt is also the retaining bolt for the wing).
