DTC B1836: Window Relay Front Right - No Response: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

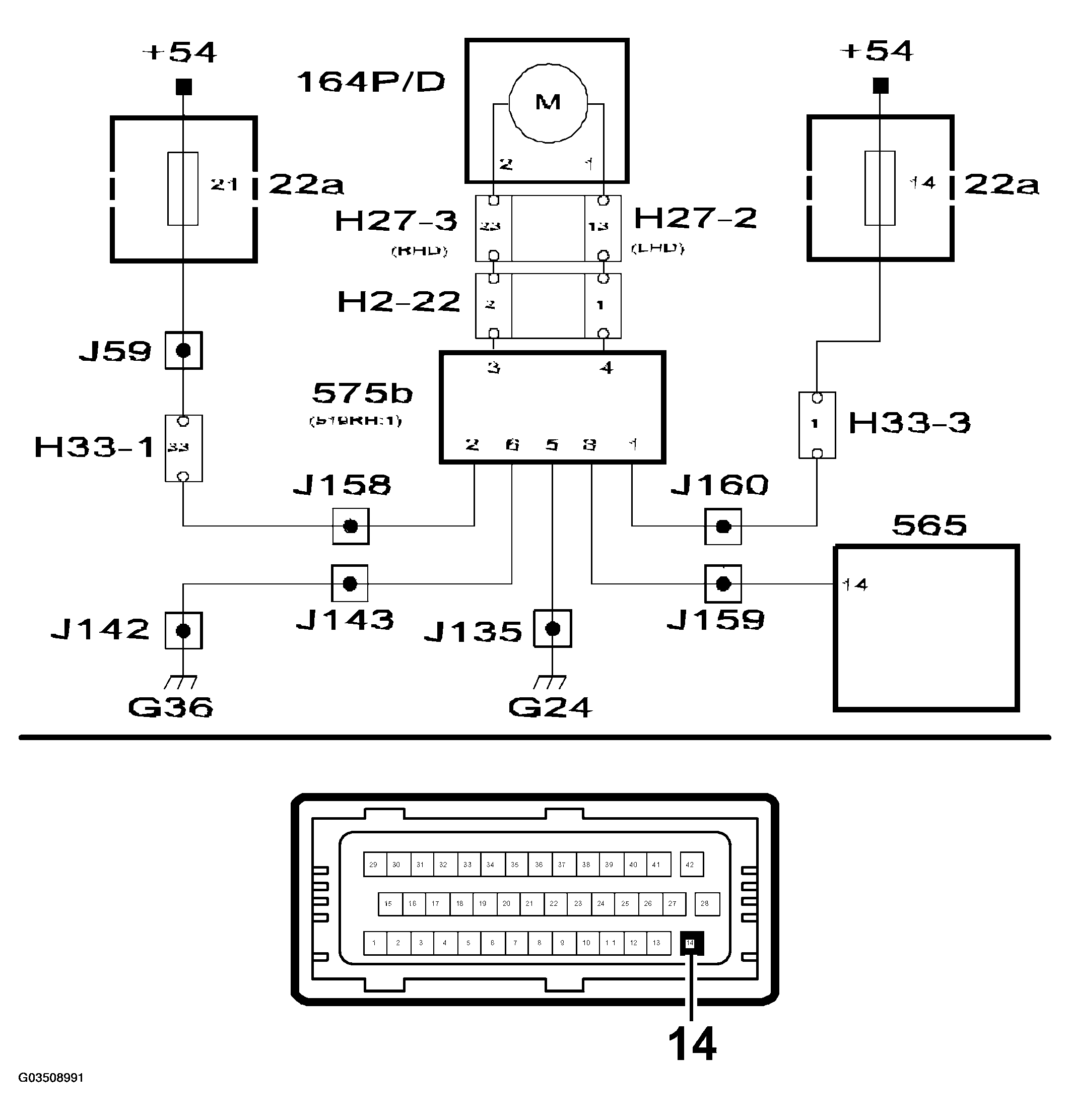

Fig 1: Window Relay Front Right - Circuit Diagram (No Response)
G03508991Courtesy of SAAB-SCANIA OF AMERICA, INC.
