DTC B1835: Window Relay 2, Front Right - Internal fault: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

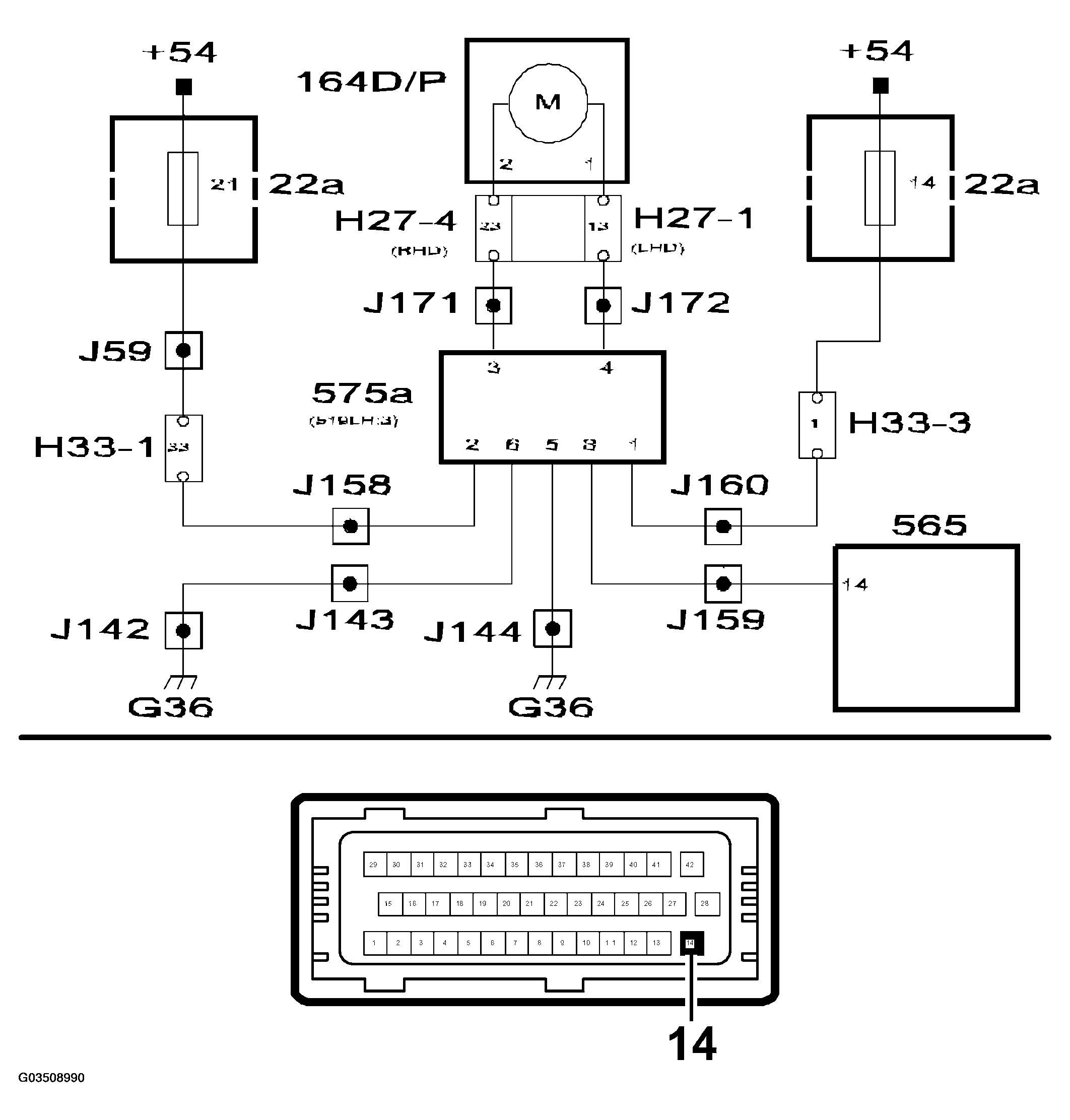

Fig 1: Window Relay 2, Front Right - Circuit Diagram (Internal Fault)
G03508990Courtesy of SAAB-SCANIA OF AMERICA, INC.
