DTC B1826: Soft Top Valve 4, main movement DOWN - No response: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

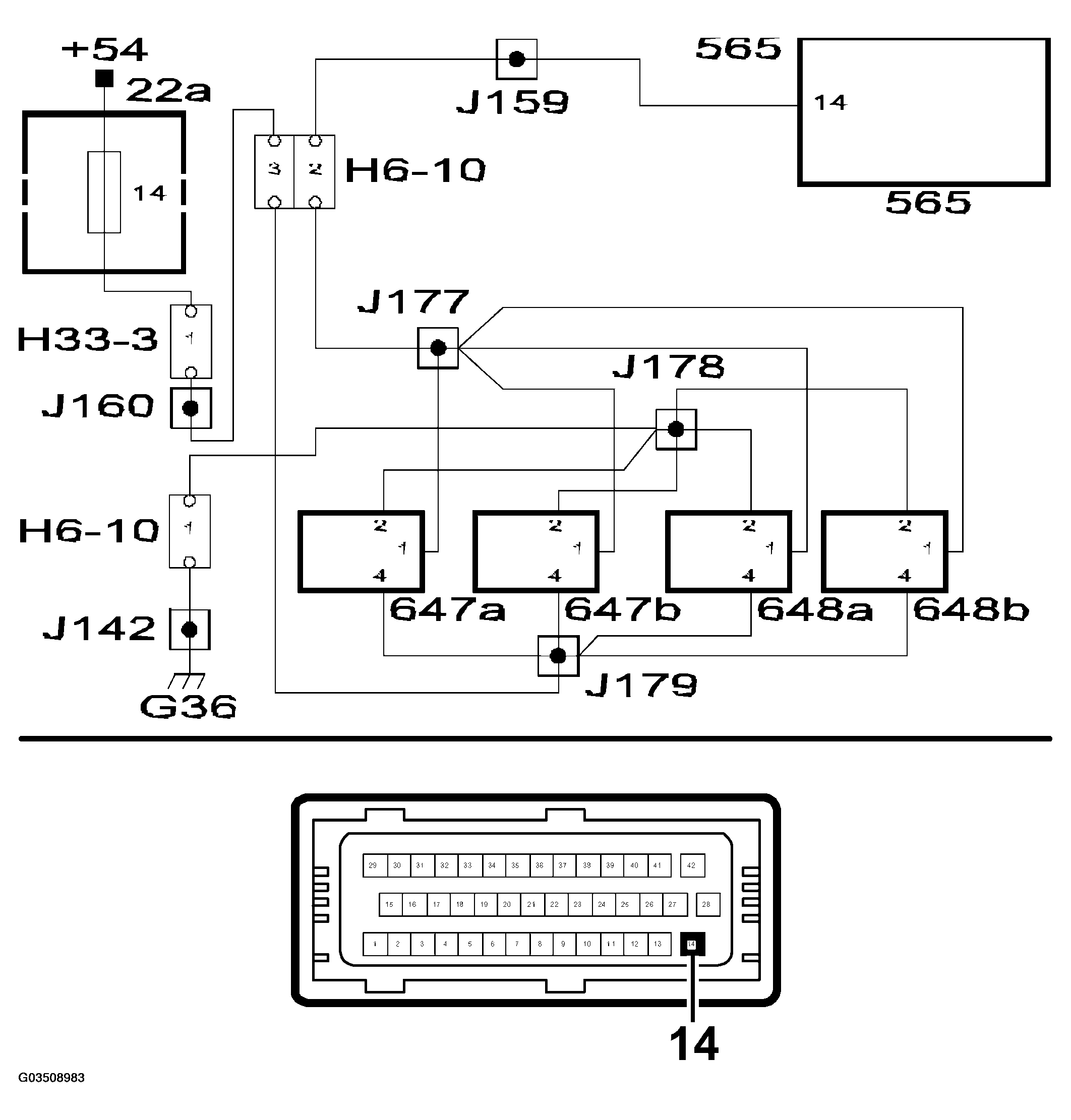

Fig 1: Soft Top Valve 4, Main Movement Down - Circuit Diagram (No Response)
G03508983Courtesy of SAAB-SCANIA OF AMERICA, INC.
