DTC B1816: Soft Top Valve 2, main movement UP - No response: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

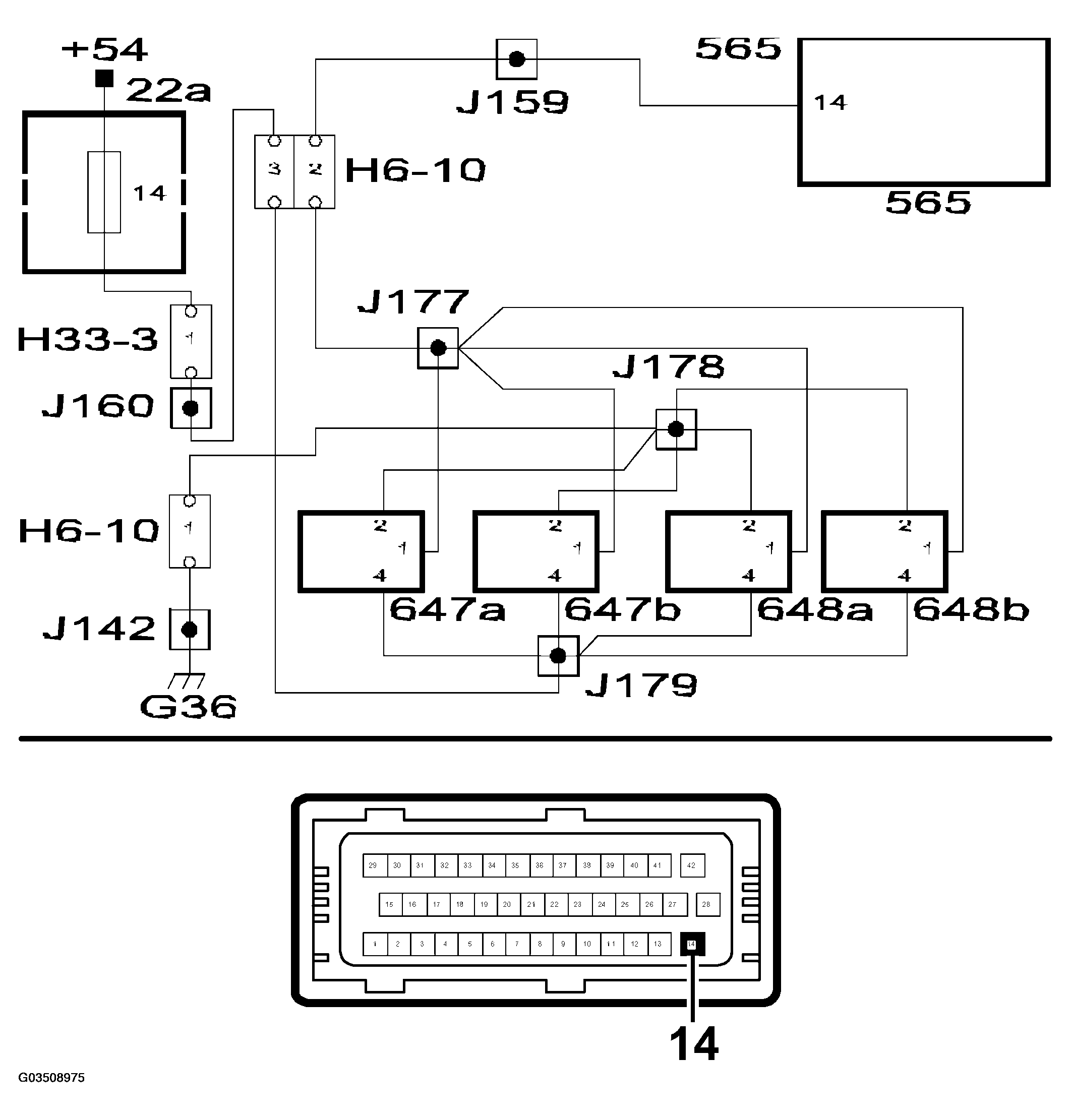

Fig 1: Soft Top Valve 2, Main Movement Up - Circuit Diagram (No Response)
G03508975Courtesy of SAAB-SCANIA OF AMERICA, INC.
