DTC B1815: Soft Top Valve 2, main movement UP - Internal fault: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

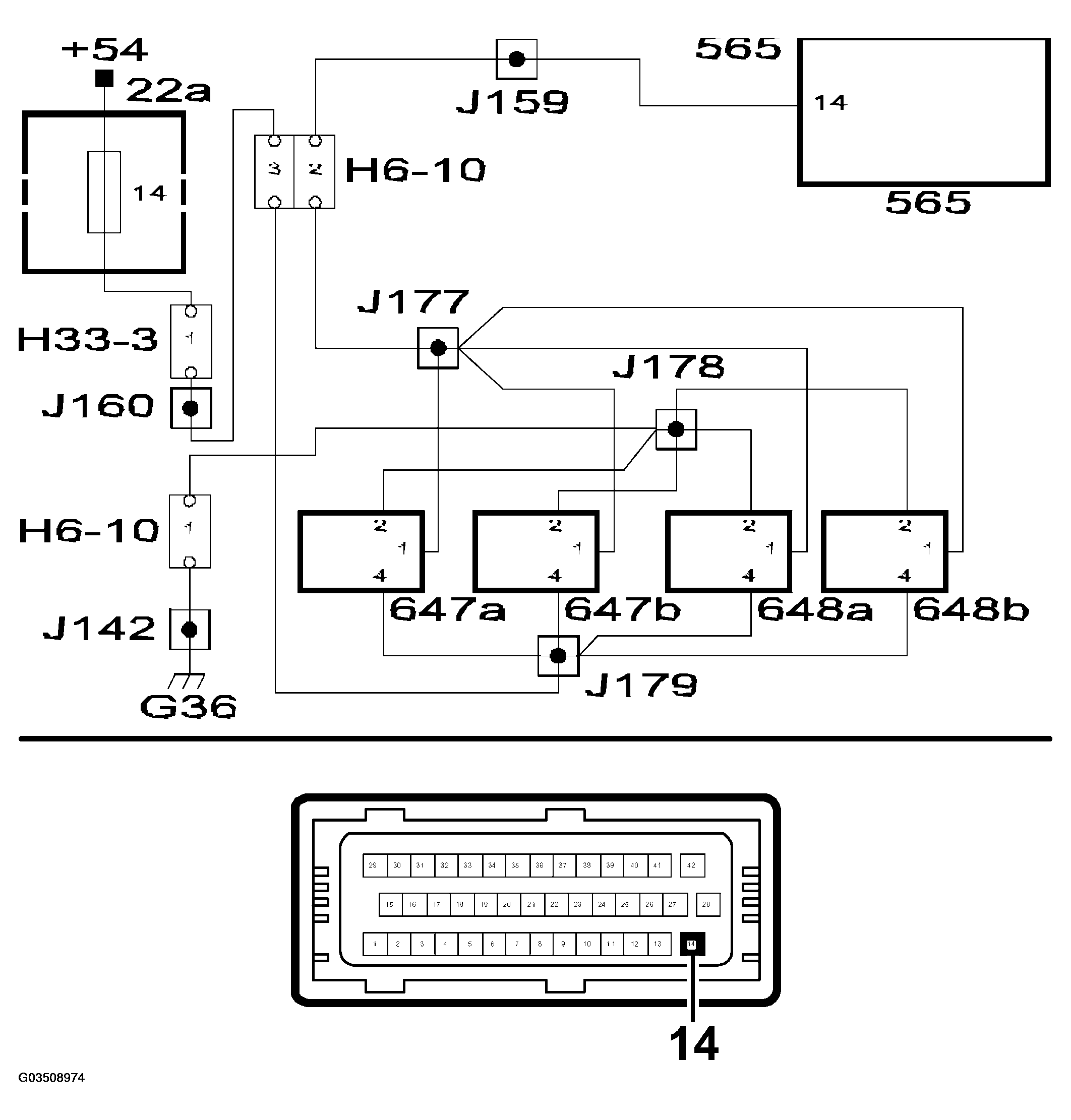

Fig 1: Soft Top Valve 2, Main Movement Up - Circuit Diagram (Internal Fault)
G03508974Courtesy of SAAB-SCANIA OF AMERICA, INC.
