Relay, hydraulic pump, convertible (579)

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

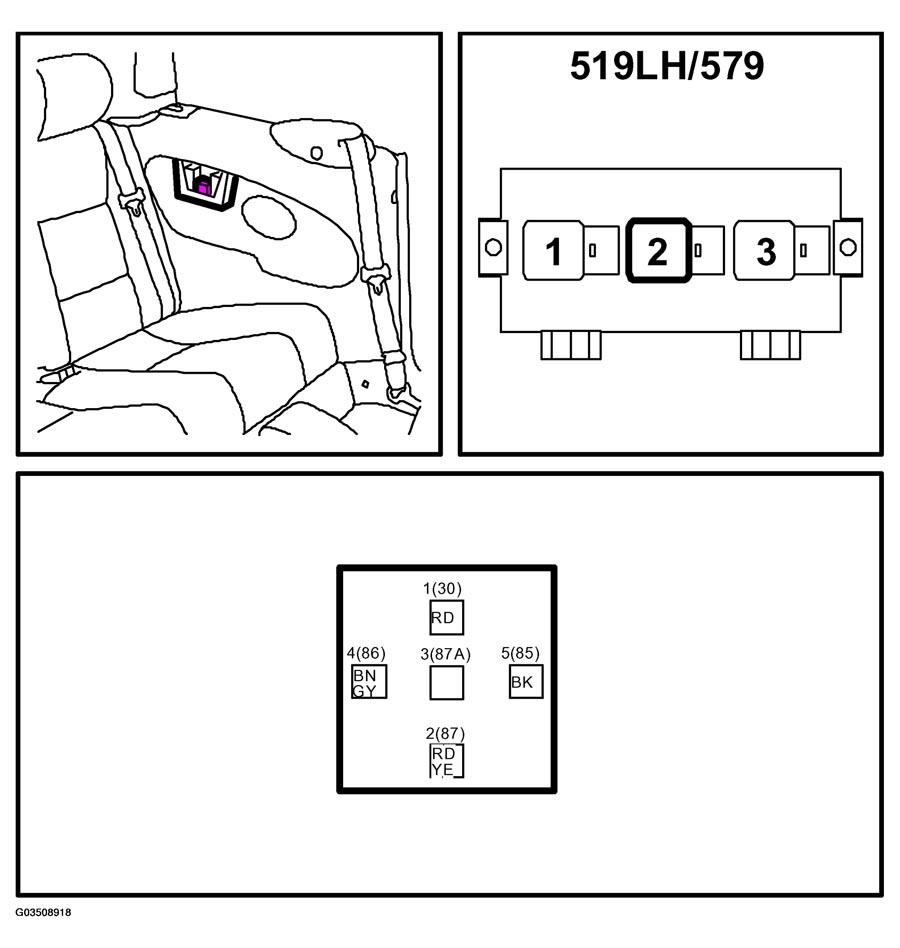

Fig 1: Locating Hydraulic Pump Relay - Convertible
G03508918Courtesy of SAAB-SCANIA OF AMERICA, INC.
