Components connected:
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

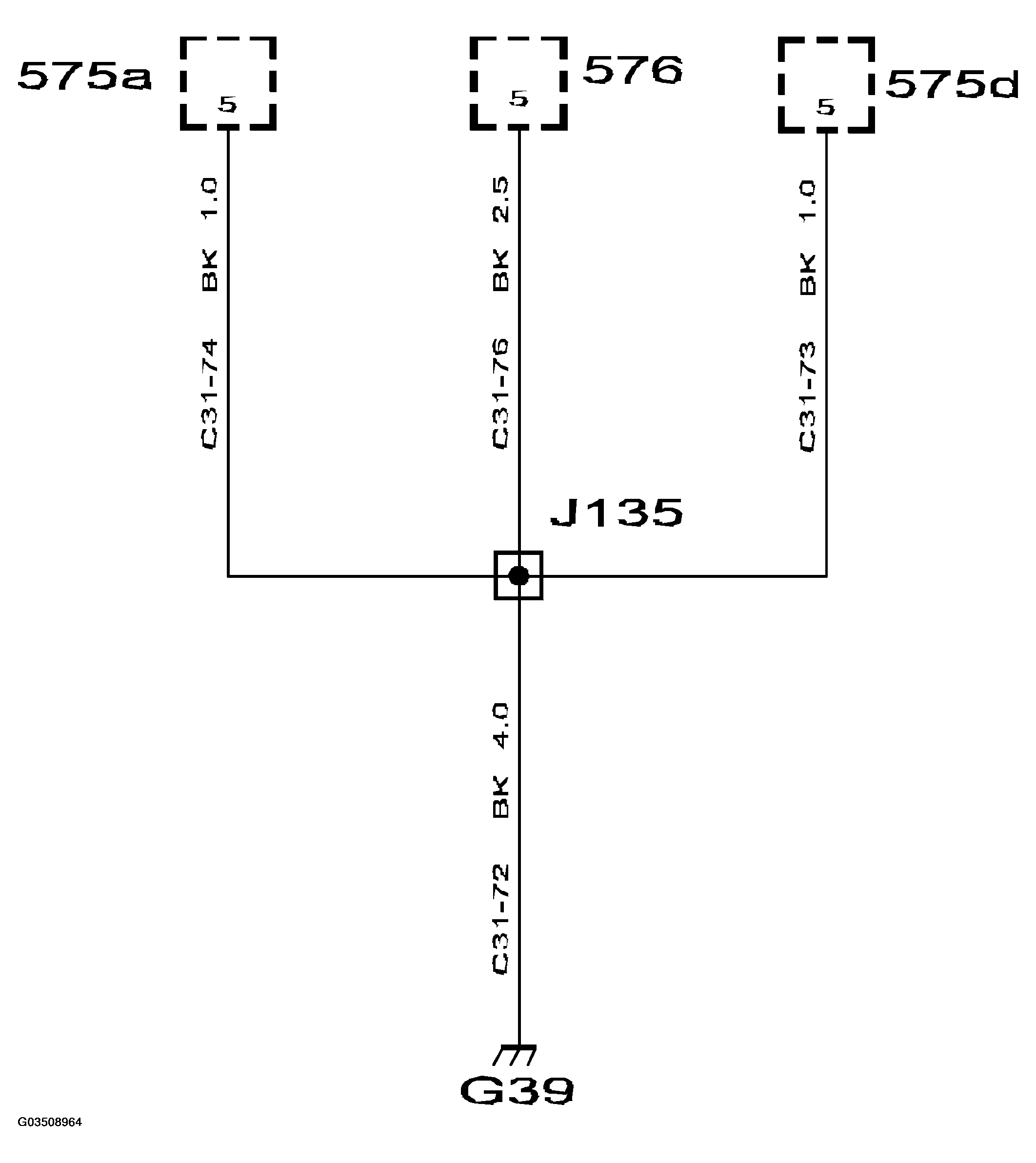

GROUNDING POINT COMPONENT CONNECTION DESCRIPTION - G39 (CONVERTIBLE)
| |
Via crimp J135, |
| 575a |
Relay, electrically operated window lift, LH front |
| 575d |
Relay, electrically operated window lift, RH rear |
| 576 |
Relay, fifth hoop |
Courtesy of SAAB-SCANIA OF AMERICA, INC.
