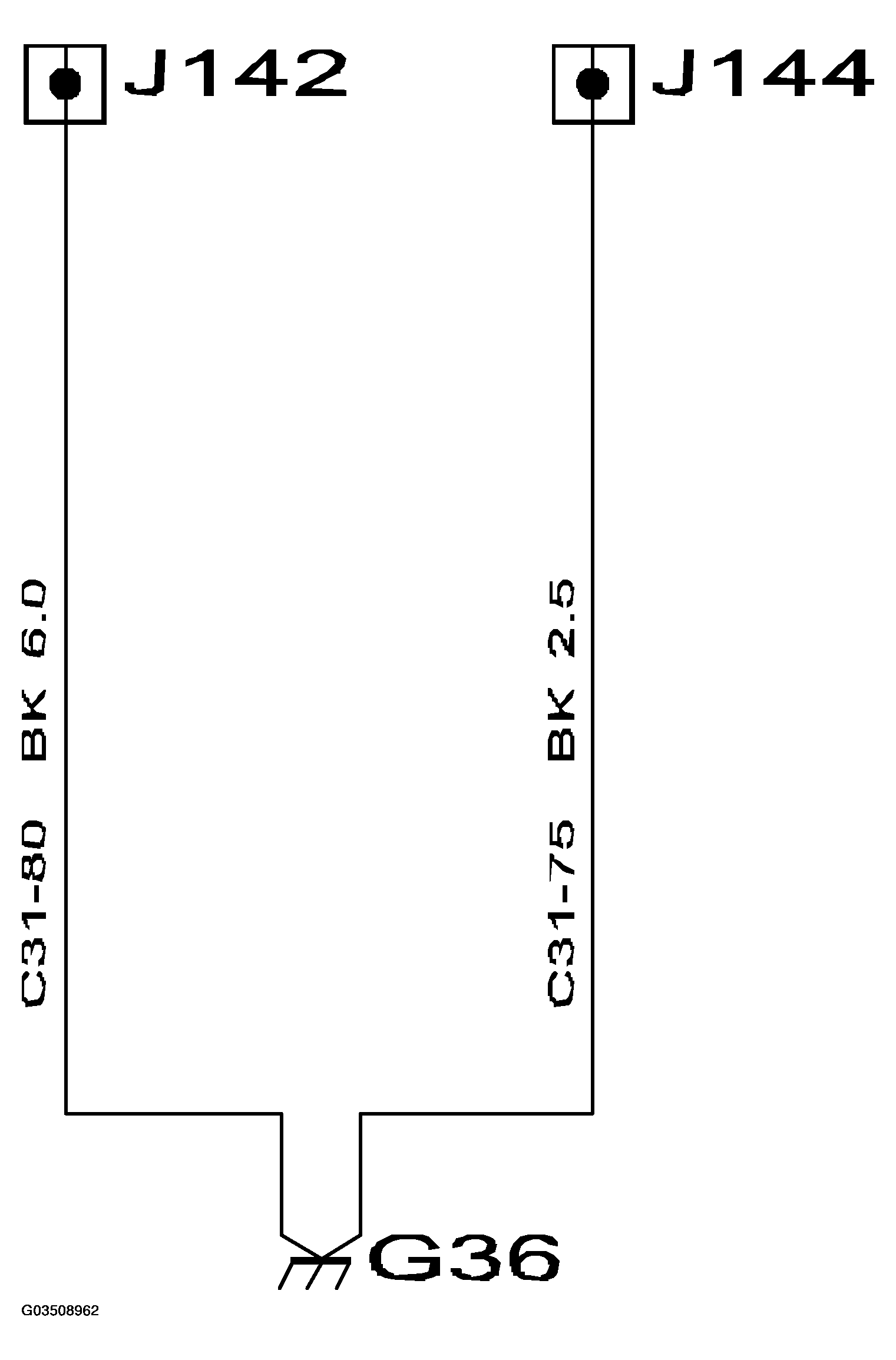

GROUNDING POINT COMPONENT CONNECTION DESCRIPTION - G36 (CONVERTIBLE)
| Via crimp J144 FUSES & CIRCUIT BREAKERS | |
| 575a | Relay, electrically operated window lift, LH front |
| 575c | Relay, electrically operated window lift, LH rear |
| Via crimp J142 FUSES & CIRCUIT BREAKERS | |
| 386 | Switch unit, electric window lifts (electrically operated sunroof) |
| 561LH | Microswitch, lock fitting windscreen frame LH, Convertible |
| 561RH | Microswitch, lock fitting windscreen frame RH, Convertible |
| 562LH | Microswitch, lock soft-top stowage LH, Convertible |
| 562o | Microswitch, open soft-top stowage, Convertible |
| 562RH | Microswitch, lock soft-top stowage RH, Convertible |
| 563d | Microswitch, fifth hoop down, Convertible |
| 563i | Microswitch, fifth hoop intermediate position, Convertible |
| 563u | Microswitch, fifth hoop up, Convertible |
| 564RH | Microswitch, soft-top bag RH, Convertible |
| 565 | Control module, soft-top opening, Convertible |
| 577c | Microswitch, main cylinder, soft top up |
| 577o | Microswitch, main cylinder, soft top down |
| 579 | Relay, hydraulic pump, Convertible |
| 647a/b | Solenoid valves |
| 648a/b | Solenoid valves |
| Via crimp J143 FUSES & CIRCUIT BREAKERS which is in contact with crimp J142 |
|
| 575a | Relay, electrically operated window lift, LH front |
| 575b | Relay, electrically operated window lift, RH front |
| 575c | Relay, electrically operated window lift, LH rear |
| 575d | Relay, electrically operated window lift, RH rear |
| 576 | Relay, fifth hoop |
| Via crimp J164 FUSES & CIRCUIT BREAKERS which is in contact with crimp J142 | |
| 578LH | Microswitch, fifth hoop LH ready to lock |
| 578RH | Microswitch, fifth hoop RH ready to lock |
