Components connected:
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

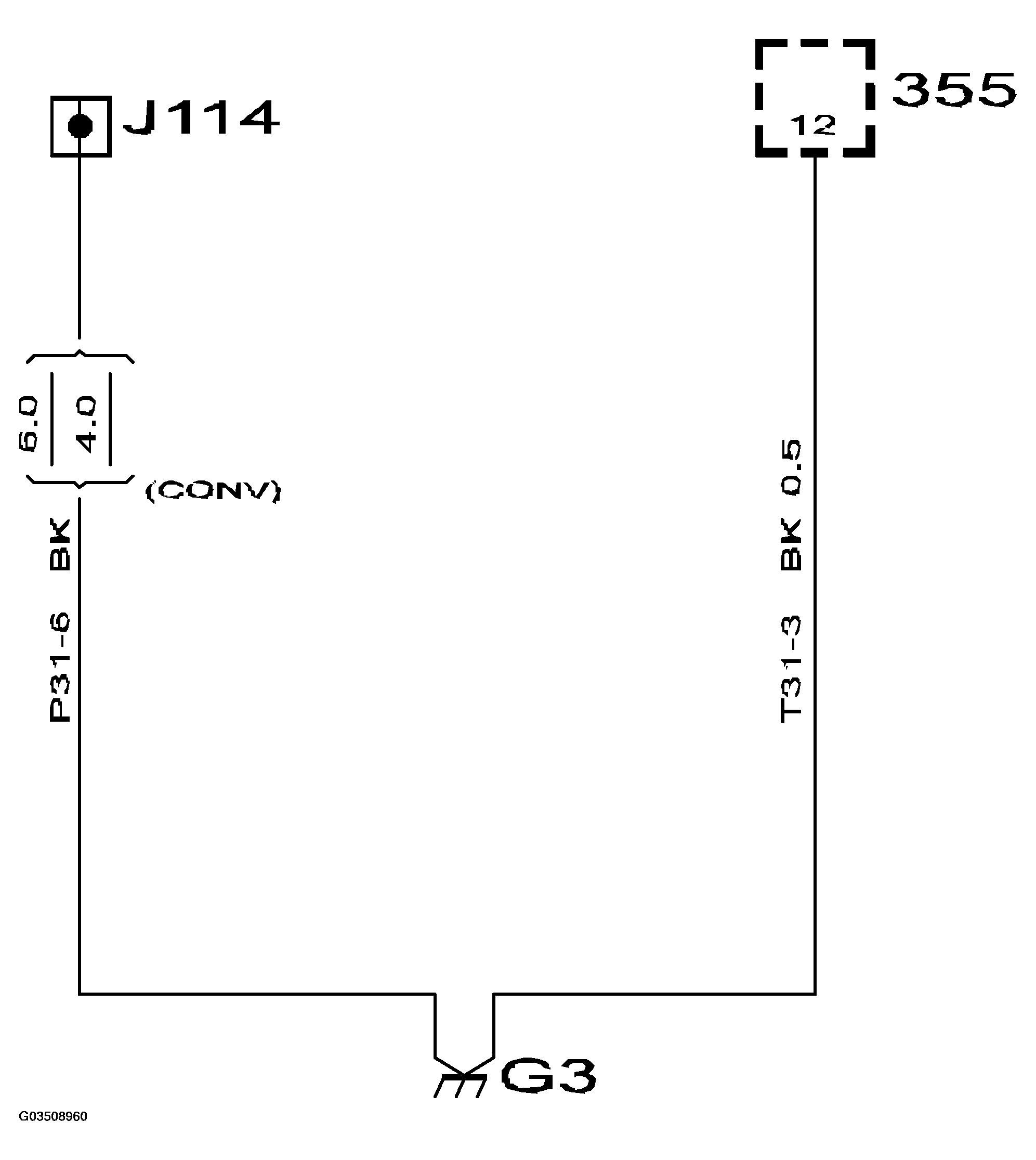

GROUNDING POINT COMPONENT CONNECTION DESCRIPTION (G3)
| 355 | CD changer |
| Via crimp J114 FUSES & CIRCUIT BREAKERS | |
| 13RL | Lamp, rear light, LH |
| 13RR | Lamp, rear light, RH |
| 27RL | Lamp, direction indicator, rear, LH |
| 27RR | Lamp, direction indicator, rear, RH |
| 30RL | Lamp, brake light, LH |
| 30RR | Lamp, brake light, RH |
| 50C | Lamp, roof lighting, center |
| 55 | Lamp, lighting, luggage compartment |
| 115 | Heating element, rear window (CONV) |
| 225LH | Reading lamp, rear, LH (CONV) |
| 225RH | Reading lamp, rear, RH (CONV) |
| 323 | Motor, fuel pump |
| 359LH | Lamp, lighting, vanity mirror, LH |
| 355h | Connection, loudspeaker amplifier, audio system |
| 647a/b | Solenoid valve, soft-top, convertible |
| 648a/b | Solenoid valve, soft-top, convertible |
| Via crimp J163 FUSES & CIRCUIT BREAKERS which is in contact with crimp J114 |
|
| 15 | Lamp, illumination numberplate |
| 30RC | Lamp, high-level brake light |
| 32HL | Lamp, reversing light, LH |
| 32HR | Lamp, reversing light, RH |
| 33HL | Lamp, rear fog light, LH |
| 33HR | Lamp, rear fog light, RH |
| 56 | Switch, luggage compartment lighting |
| 62R | Motor, rear-window wiper |
| 115 | Heating element, rear window |
| 622 | Microswitch, luggage compartment lock |
