Wiring harness, hydraulic unit: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operate the hood to the open position to increase the light and make working easier.

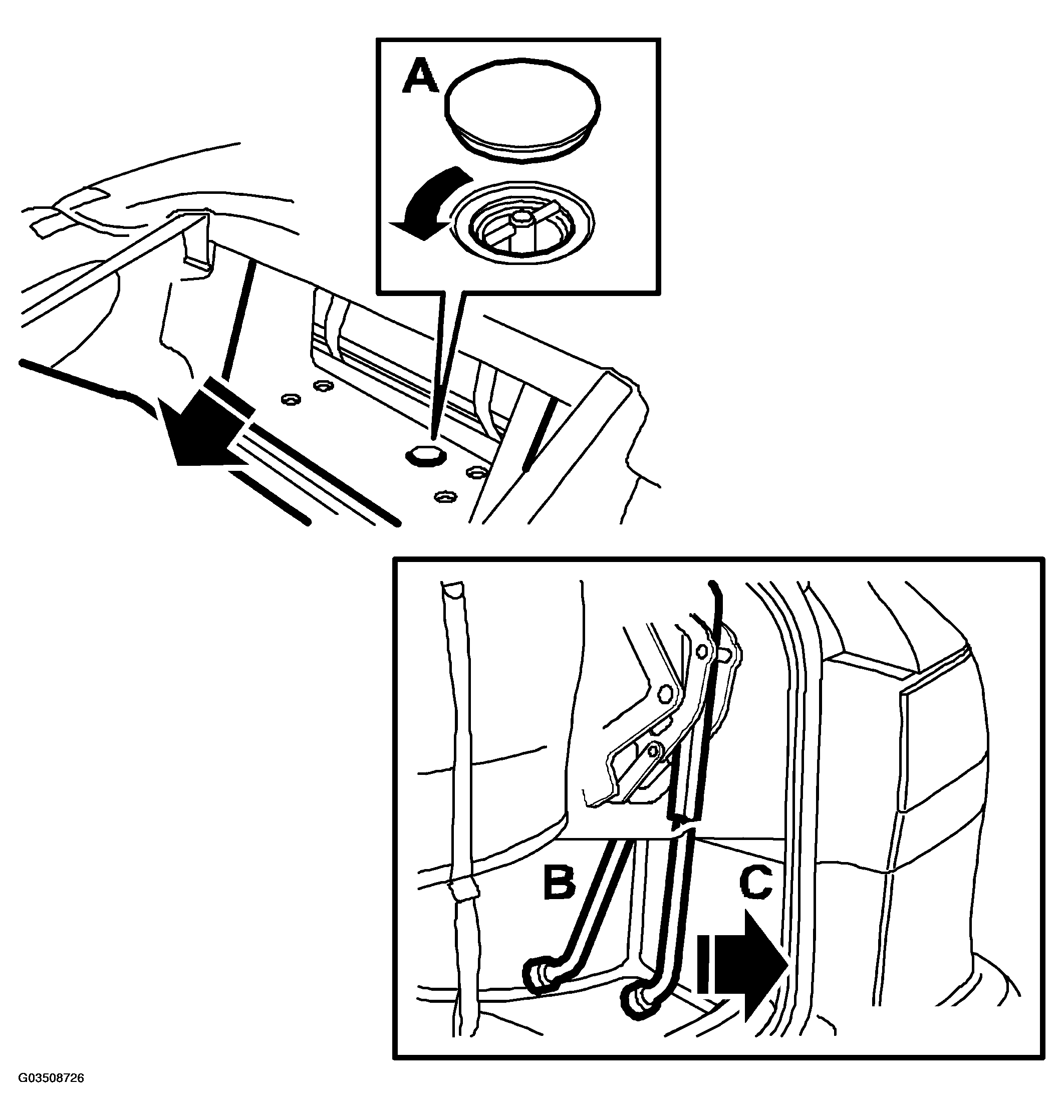

    Fig 1: Opening Hydraulic Valve
    G03508726Courtesy of SAAB-SCANIA OF AMERICA, INC.
    NOTE: This task can be performed with the hood closed.

    If the soft top cannot be operated, proceed as follows:

    1. 1.a. Release the rear seat backrest and fold it forward.
    2. 1.b. Remove the cover on the emergency opening valve and open the valve about one half turn (A)  .
    3. 1.c. Unlatch the soft top from the windscreen frame.
    4. 1.d. Activate the fifth bow latch to UNLATCH using the diagnostic tool and raise the fifth bow.
    5. 1.e. Insert the wheel bolt tool through the opening in the right-hand luggage compartment trim and attach it in the drive mechanism link arm (B)  .
    6. 1.f. Unlatch the soft top cover by pulling back on the tool until the soft top cover is lifted a few centimeters (C)  .
    7. 1.g. Remove the tool, close the boot lid and open the soft top cover.
    8. 1.h. Open the hood carefully.
      WARNING: There is a pinch hazard and danger of crushing if you let go of the soft top in the half-open position (when vertical). It will fall backwards or forwards, depending on its center of gravity.
    9. 1.i. Close the soft top cover.
  2. Release the rear seat backrest and fold it forward.
  3. Remove the cover on the hydraulic unit.
  4. Fold back the luggage compartment mat and remove the bolts securing the hydraulic unit.
  5. Lift up the hydraulic unit and unplug the connector.
  6. Press out the locking pins in the plastic rivets.
  7. Remove the relay holder, taking care not to damage the hydraulic hoses.

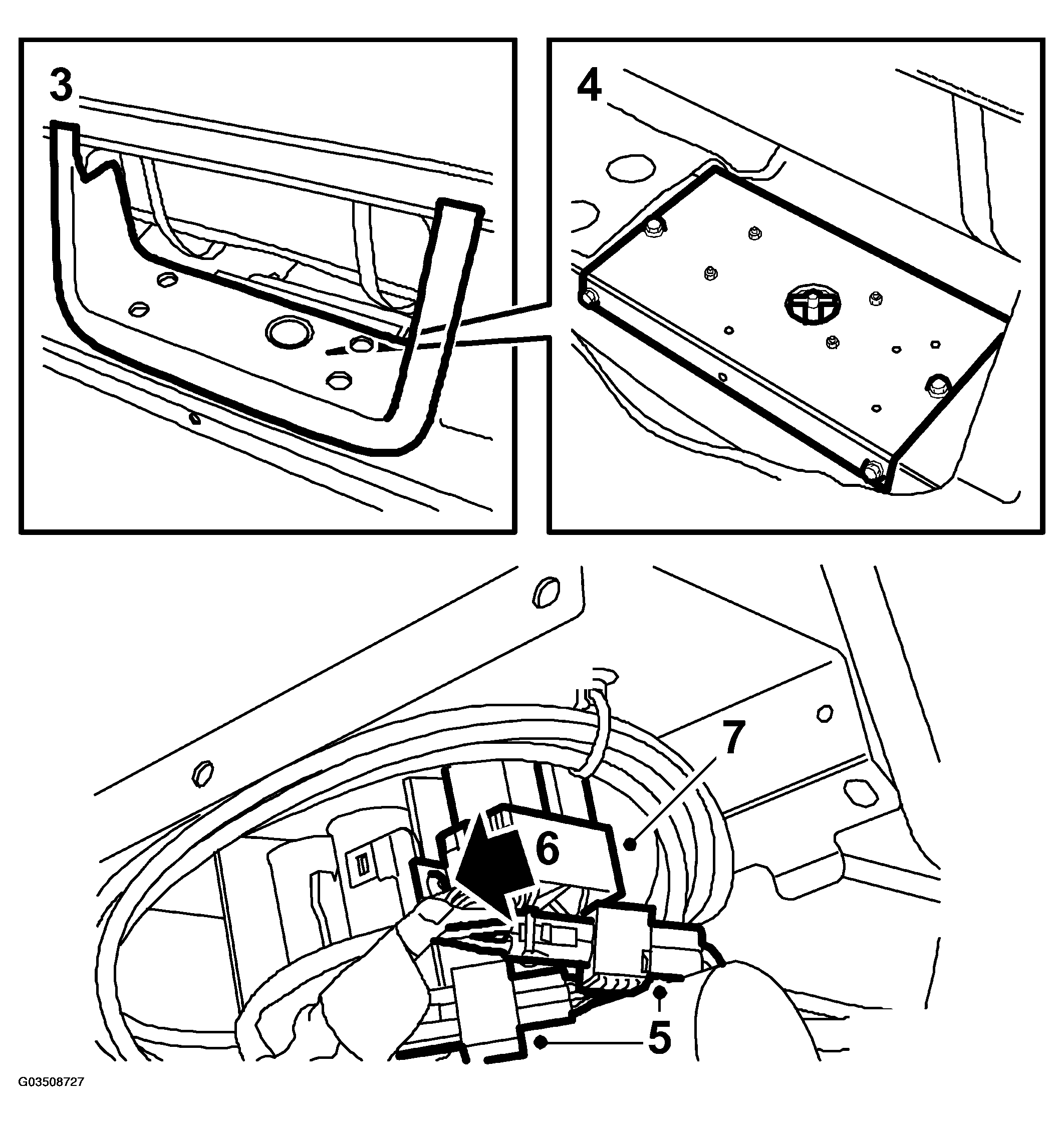

    8. Fig 2: Illustration For Steps 3-7
    G03508727Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the attachment bracket from the hydraulic unit.
    WARNING: Beware of cutting yourself on the edges of the bracket while removing the bolts.
  9. Remove the cable tie securing the hoses.
  10. Open the plastic clamps protecting the hoses by pressing in the edges slightly.

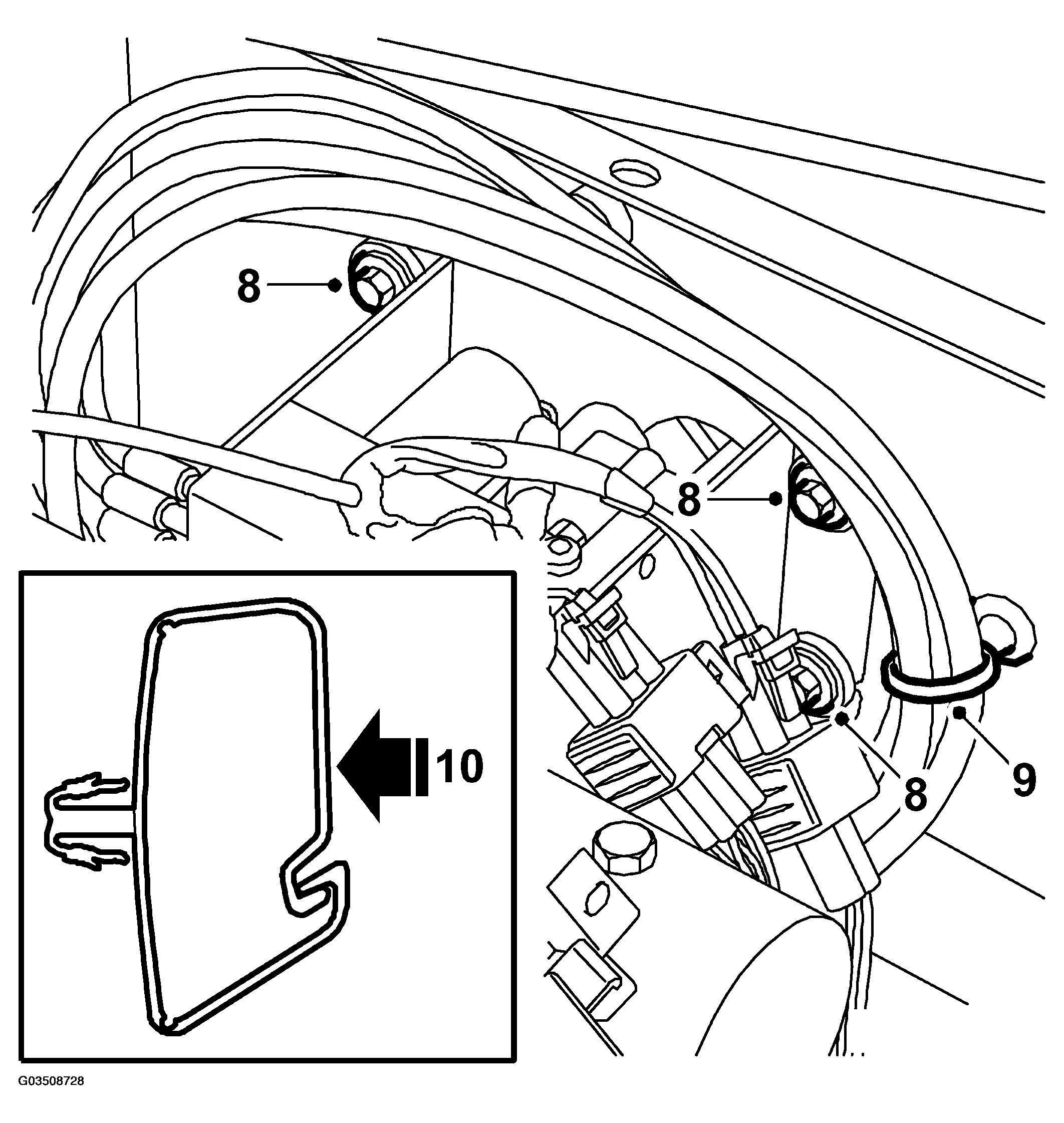

    Fig 3: Illustration For Steps 8-10
    G03508728Courtesy of SAAB-SCANIA OF AMERICA, INC.

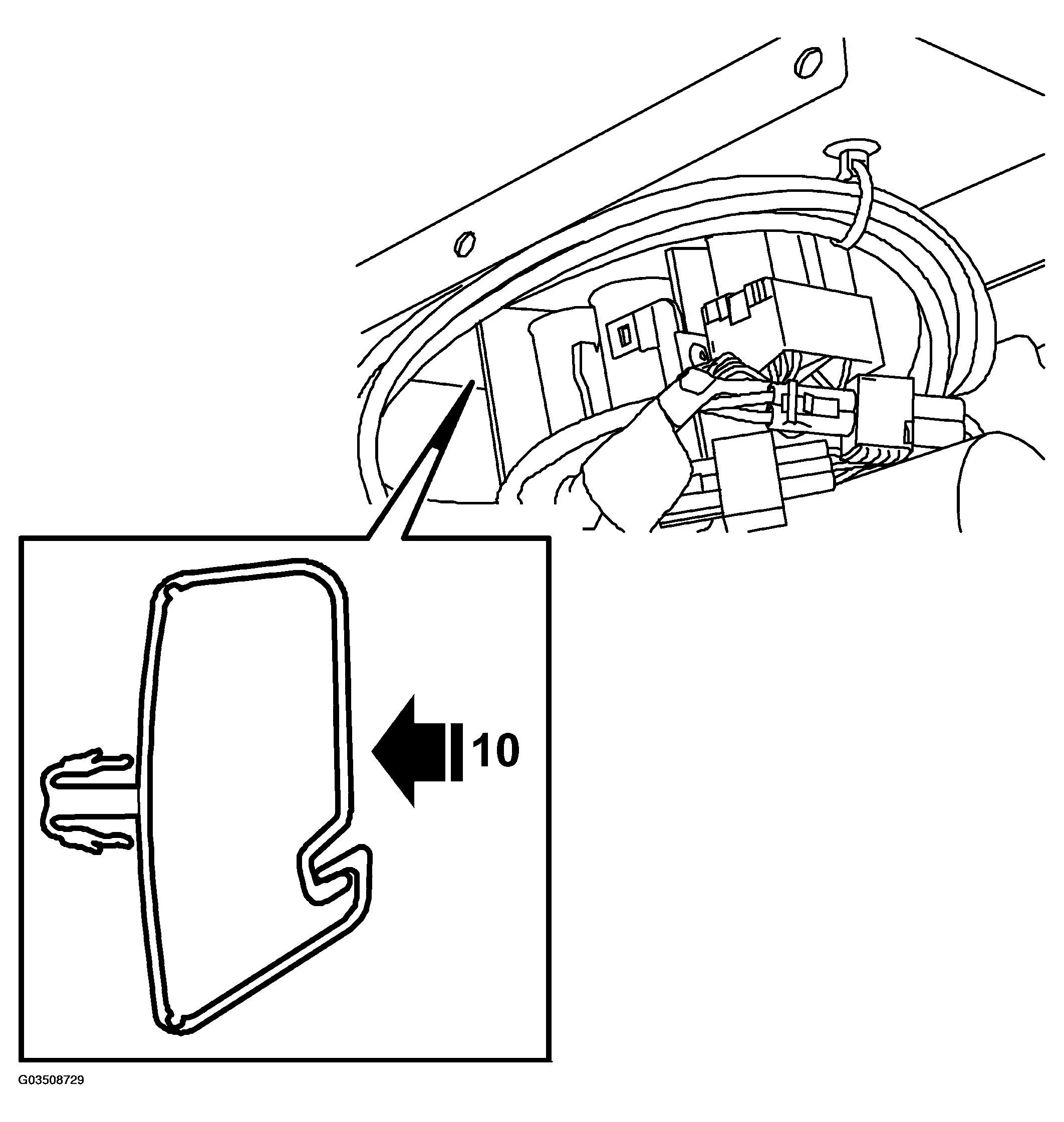

    Fig 4: Illustration For Step 10
    G03508729Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Unplug the 4 hydraulic valve connectors.
    NOTE: Take care not to damage the connector on the valve.

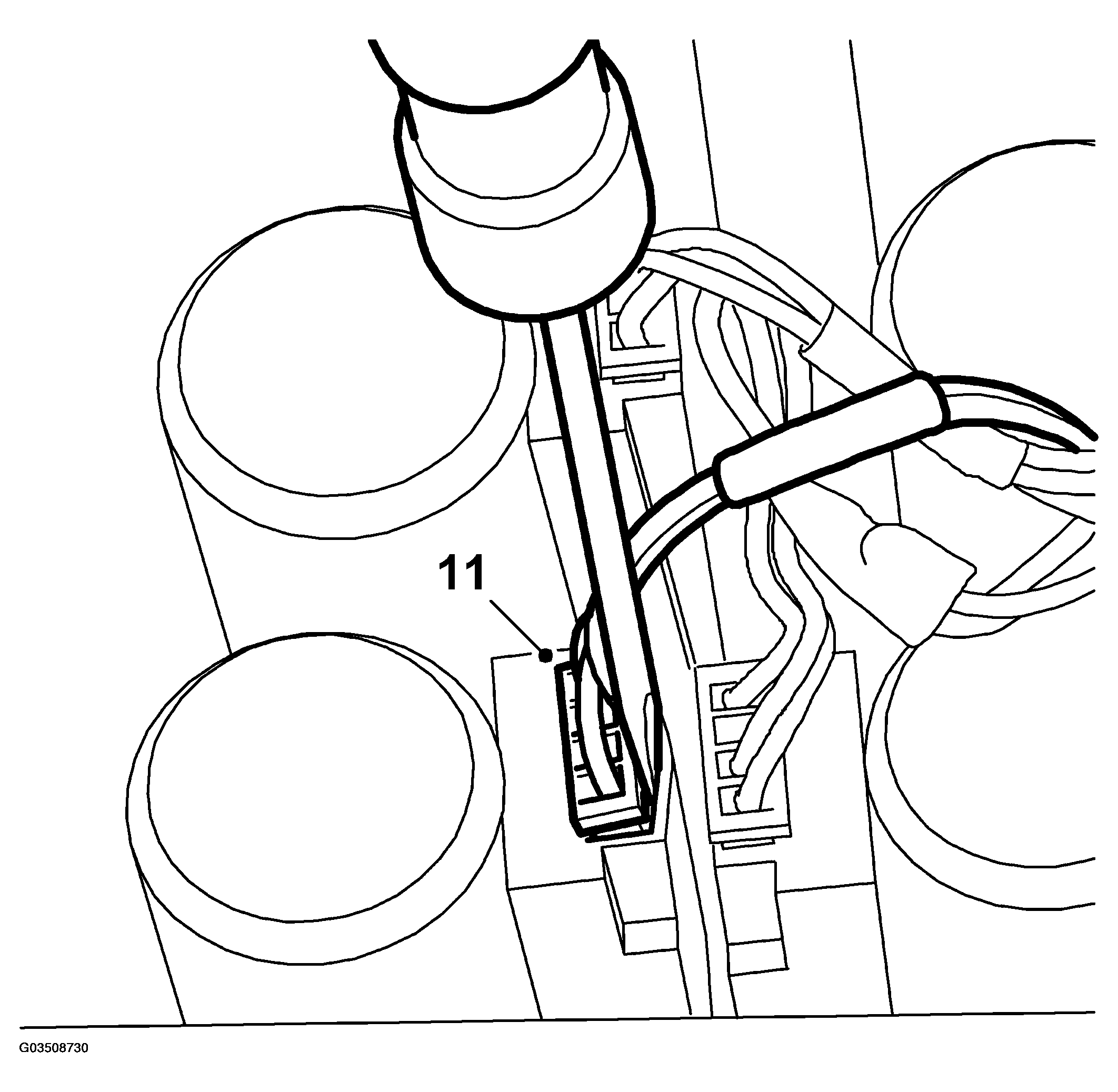

    Fig 5: Illustration For Step 11
    G03508730Courtesy of SAAB-SCANIA OF AMERICA, INC.
  12. Lift up the hydraulic unit.
  13. Open the plastic cover using a screwdriver. Remove the plastic cover from the electric motor.

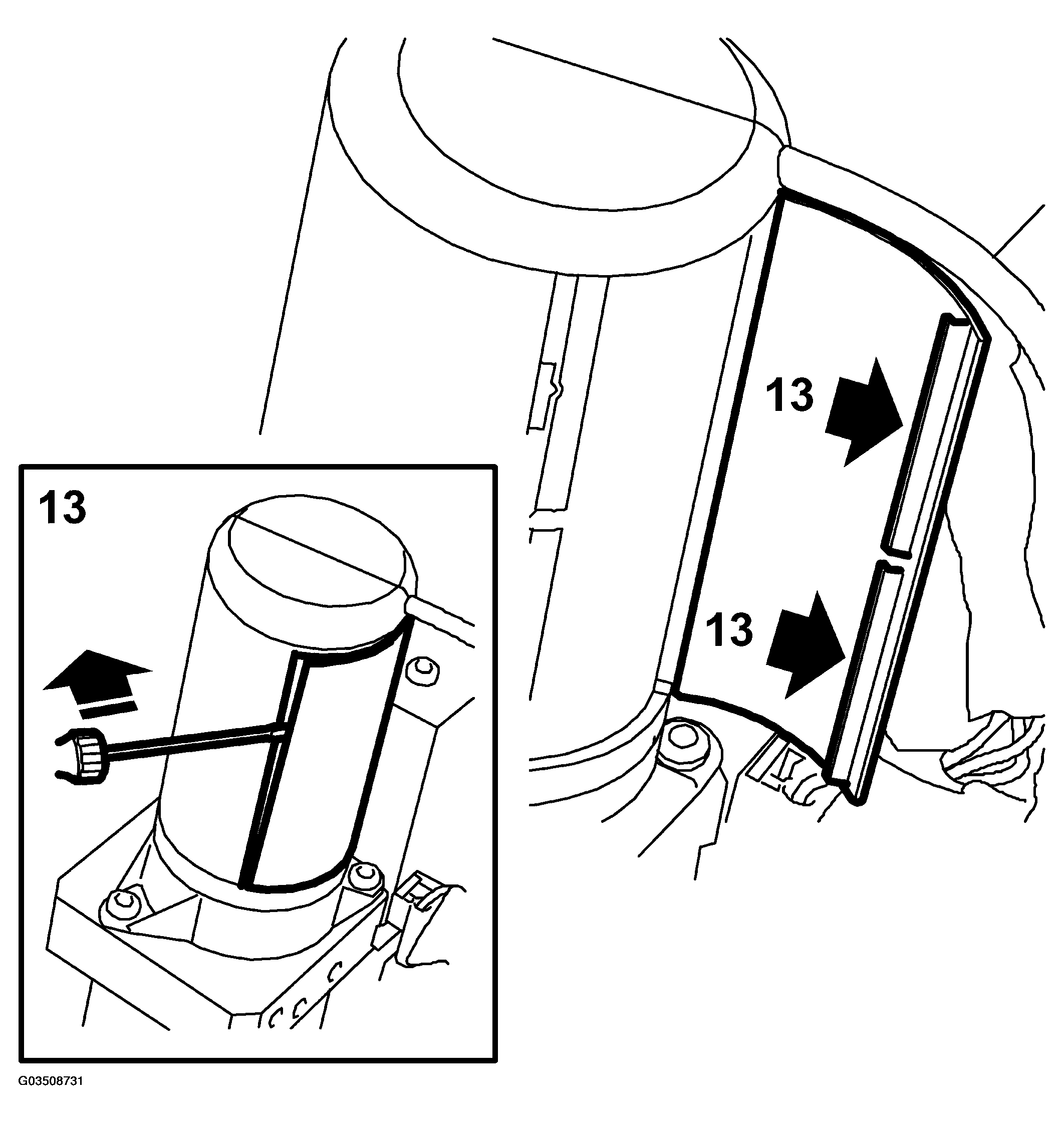

    Fig 6: Illustration For Step 13
    G03508731Courtesy of SAAB-SCANIA OF AMERICA, INC.
  14. Remove the coupling bridge from the electric motor.

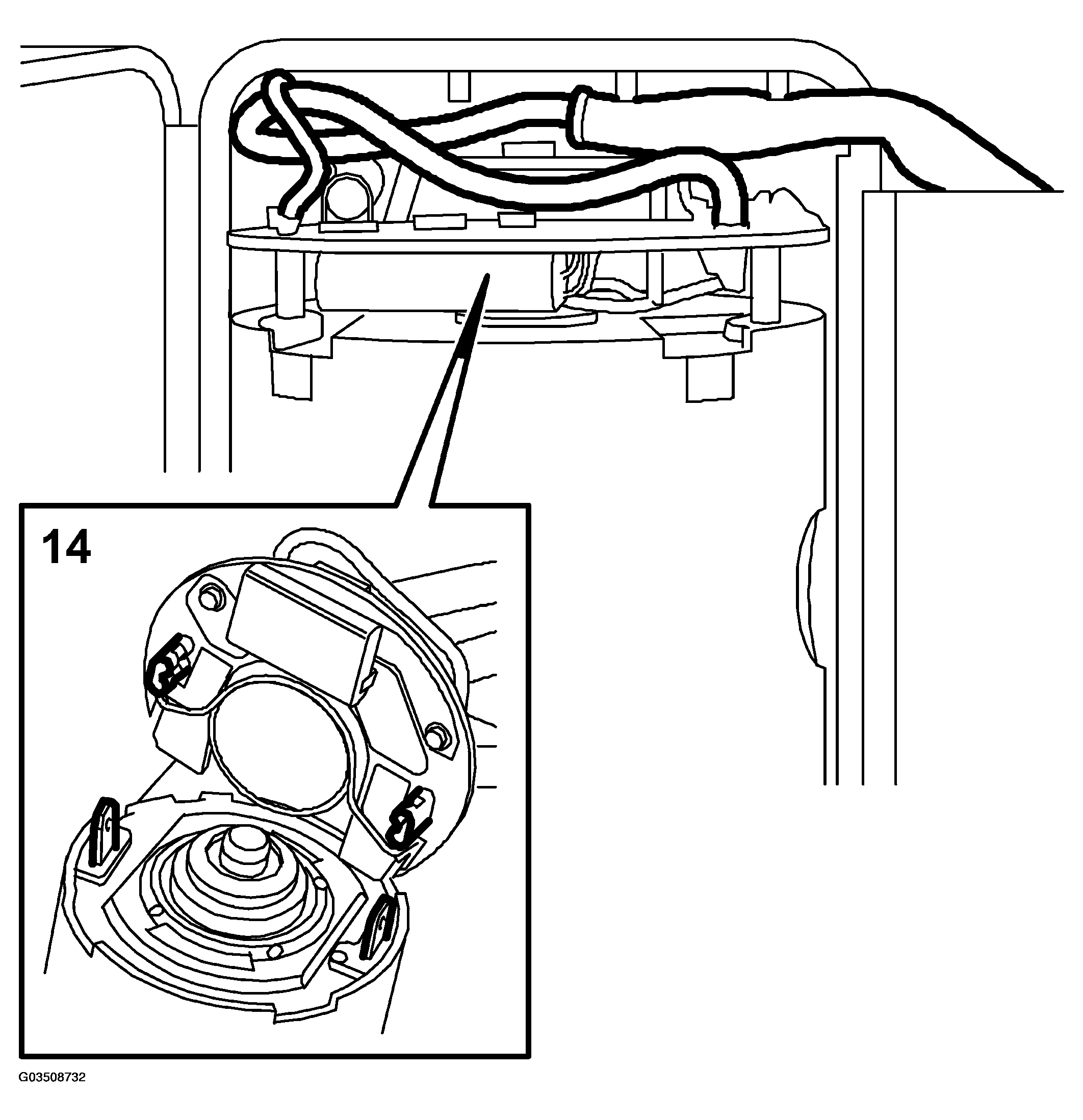

    Fig 7: Illustration For Step 14
    G03508732Courtesy of SAAB-SCANIA OF AMERICA, INC.
    NOTE: Take care not to damage the contacts.
  15. Undo the entire connector.
  16. Detach the cables by undoing the clips with a screwdriver.

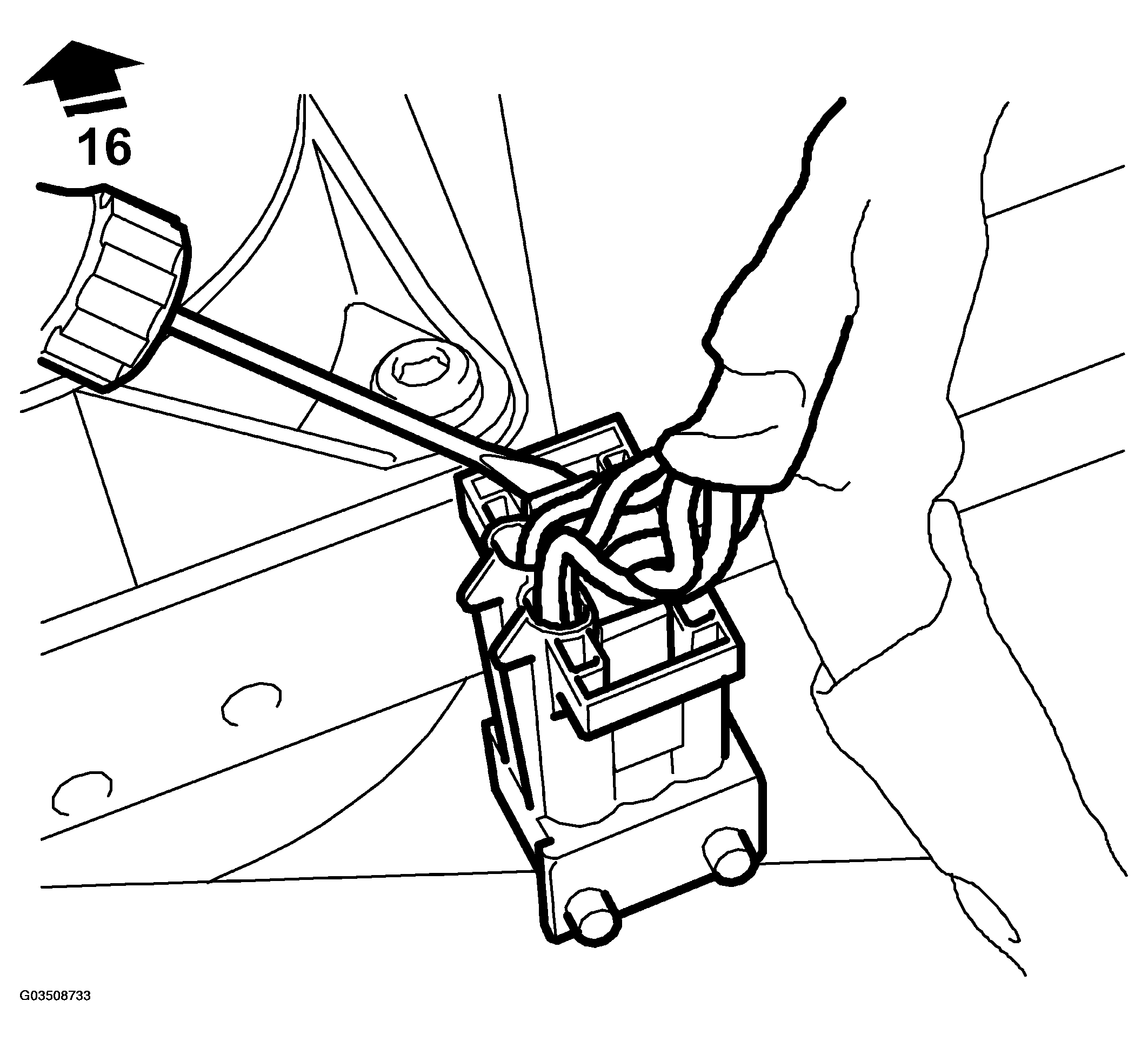

    Fig 8: Illustration For Step 16
    G03508733Courtesy of SAAB-SCANIA OF AMERICA, INC.
  17. Remove the relays from the relay holder.
