Trim on soft top rotatable covers: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operate the soft top using the roof button until the soft top is vertical.
  2. Cut off the tops of the four plastic tags using cutting pliers.
  3. Pry up and remove the four metal clips using a small screwdriver.
  4. Remove the trim from the rotatable cover.

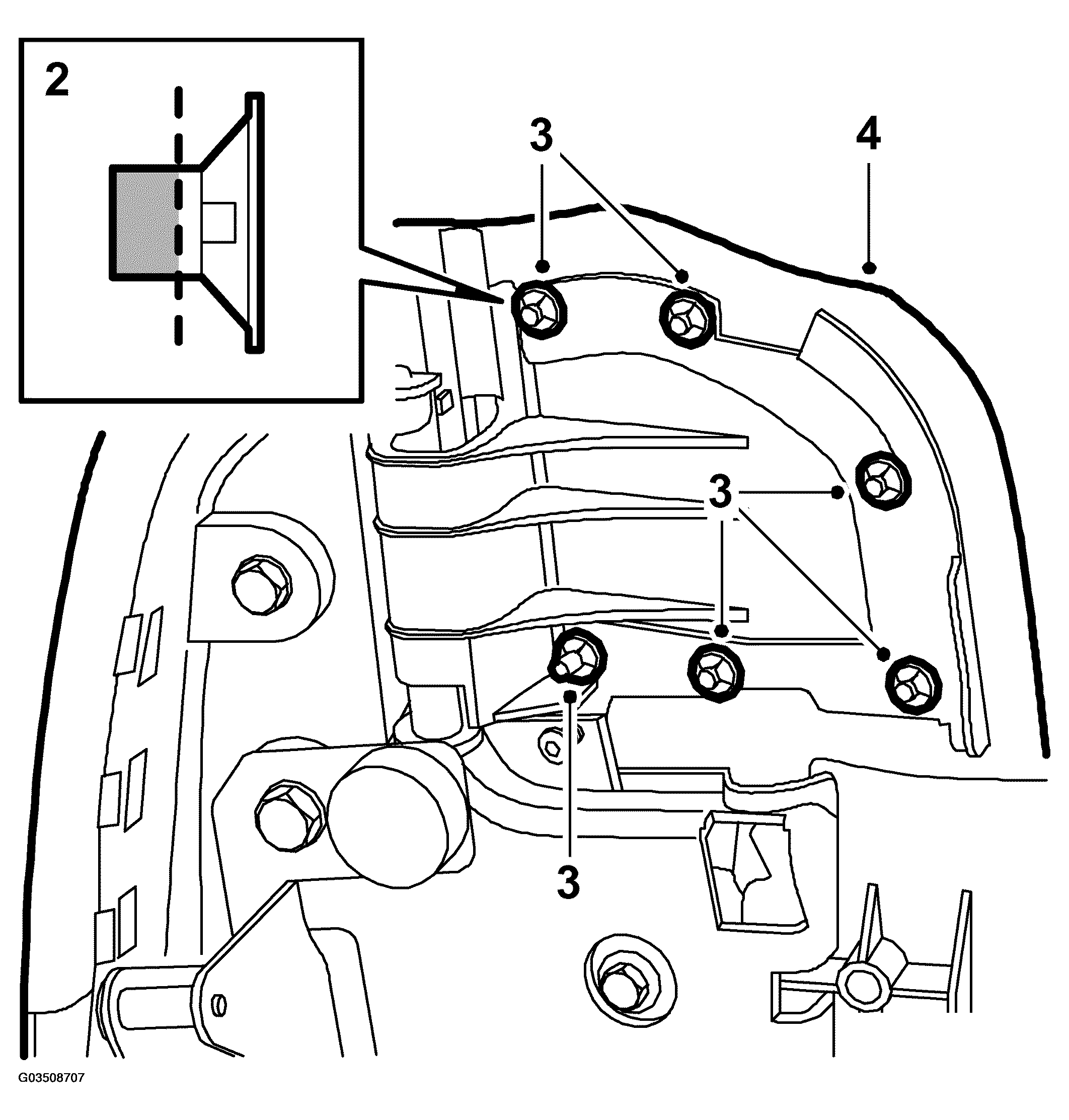

    5. Fig 1: Illustration For Steps 1-4
    G03508707Courtesy of SAAB-SCANIA OF AMERICA, INC.
