Trim on soft top rotatable covers: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press on the new trim for the rotatable cover.
    NOTE: The marks on the trim (L and R) stand for Left and Right viewed from the front of the car.
  2. Fit new metal clips to the plastic pins. Protect the trim with your hand.

    Use a socket or similar to press on the metal clip.

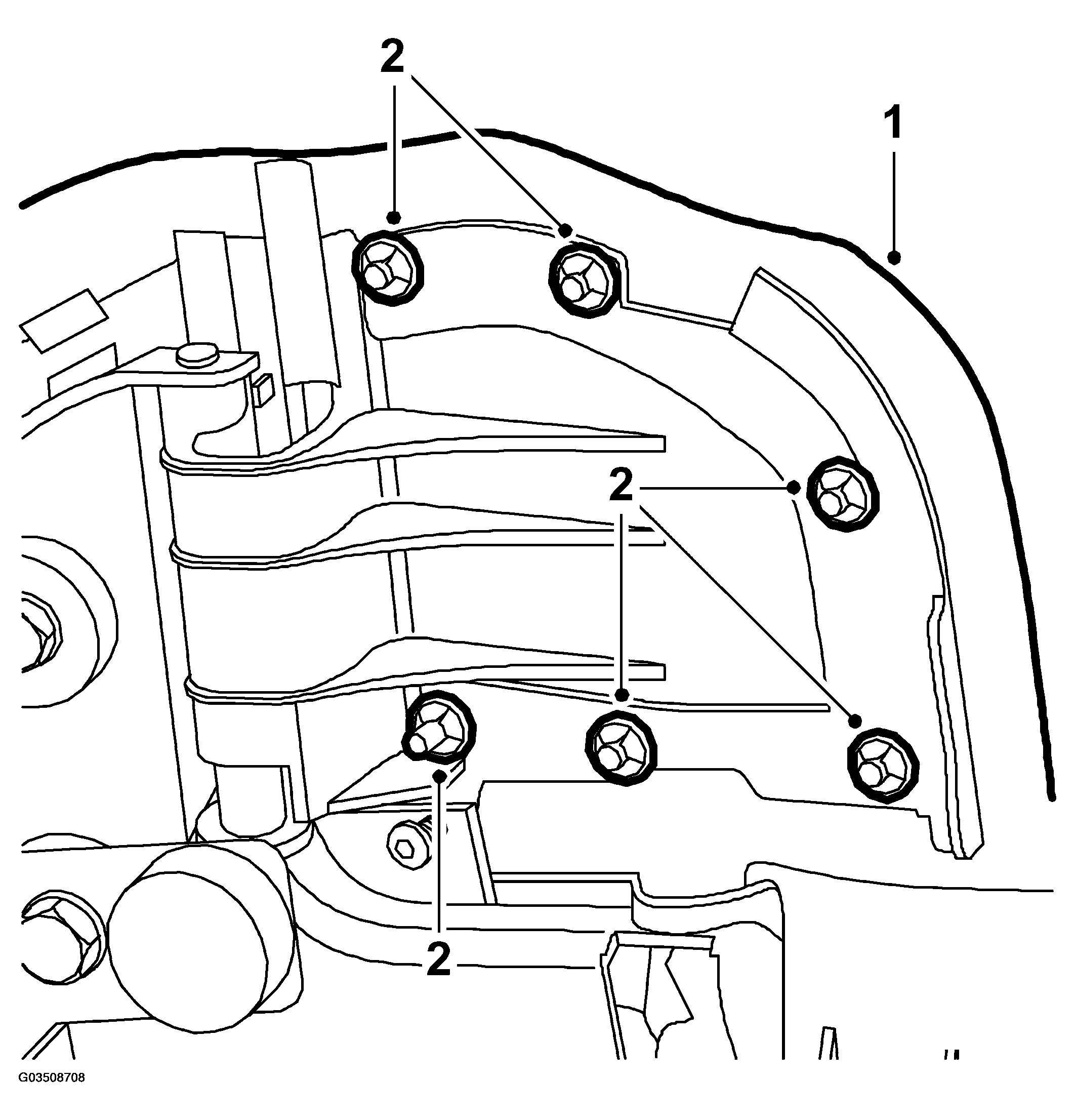

    3. Fig 1: Illustration For Steps 1-2
    G03508708Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Operate the soft top to its original position.
