Swivel cable, soft top cover access flaps: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the soft top cover and remove the covering shell.
  2. Mark the position for the bolts securing the soft top cover latch.
  3. Remove the bolts and lift away the latch.
  4. Remove the bolts securing the access flap.
  5. Release the clip securing the cable and pull the cable out of the access flap and the casing.
  6. Remove the operating arm holder with cable.
  7. Unplug the connector and remove the microswitch. Transfer the microswitch to the new operating arm holder.

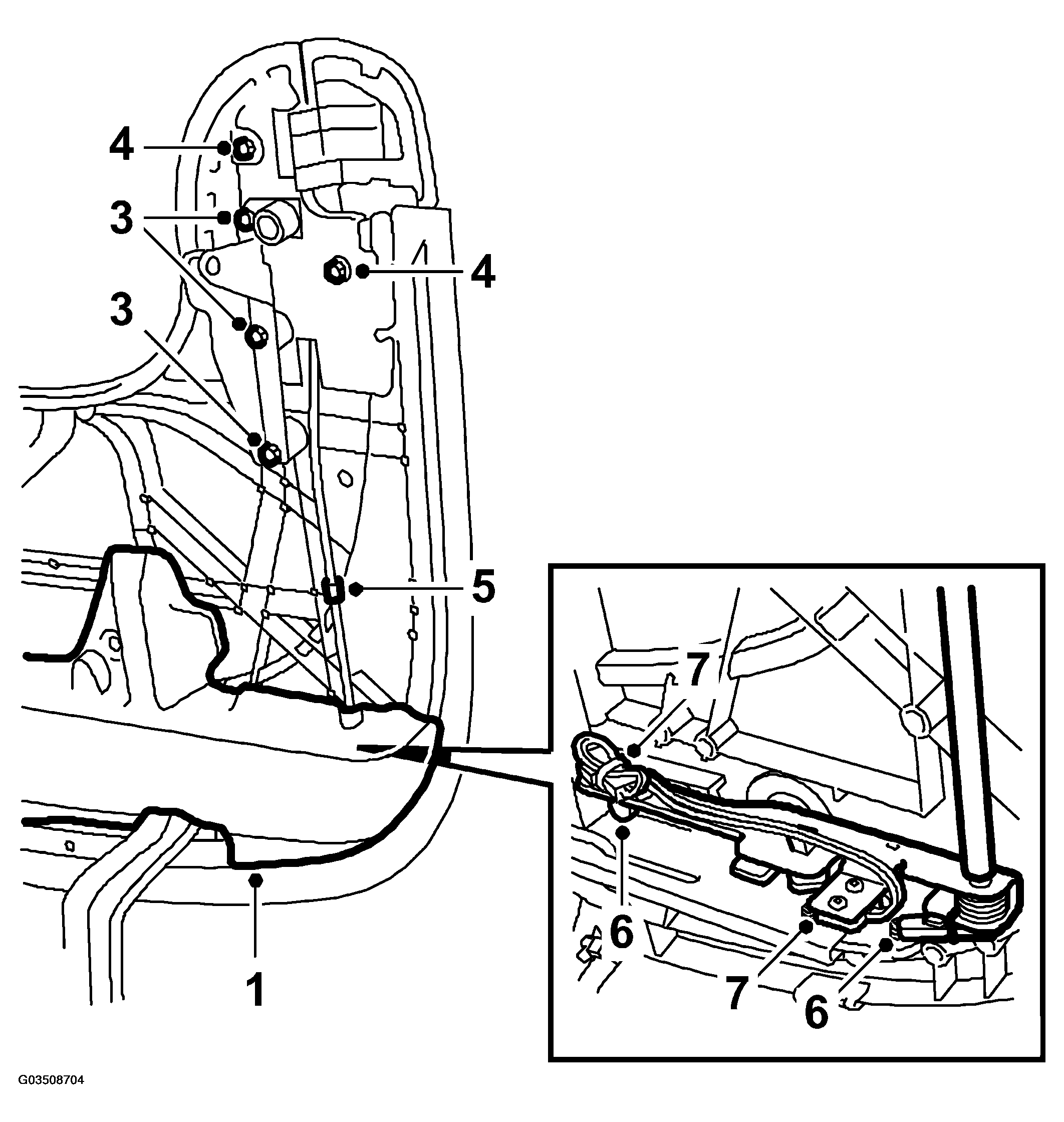

    8. Fig 1: Illustration For Steps 1, 3-7
    G03508704Courtesy of SAAB-SCANIA OF AMERICA, INC.
