Swivel cable, soft top cover access flaps: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the operating arm holder with cable.
  2. Fit the microswitch on the operating arm holder.
  3. Insert the cable in the casing and fit it in the access flap. Make sure that the access flap is in the same upright position as when removing. Fit the clip on the cable casing.
  4. Refit the access flap and tighten the bolts.
    IMPORTANT: Check to make sure that the lever to the microswitch functions correctly.

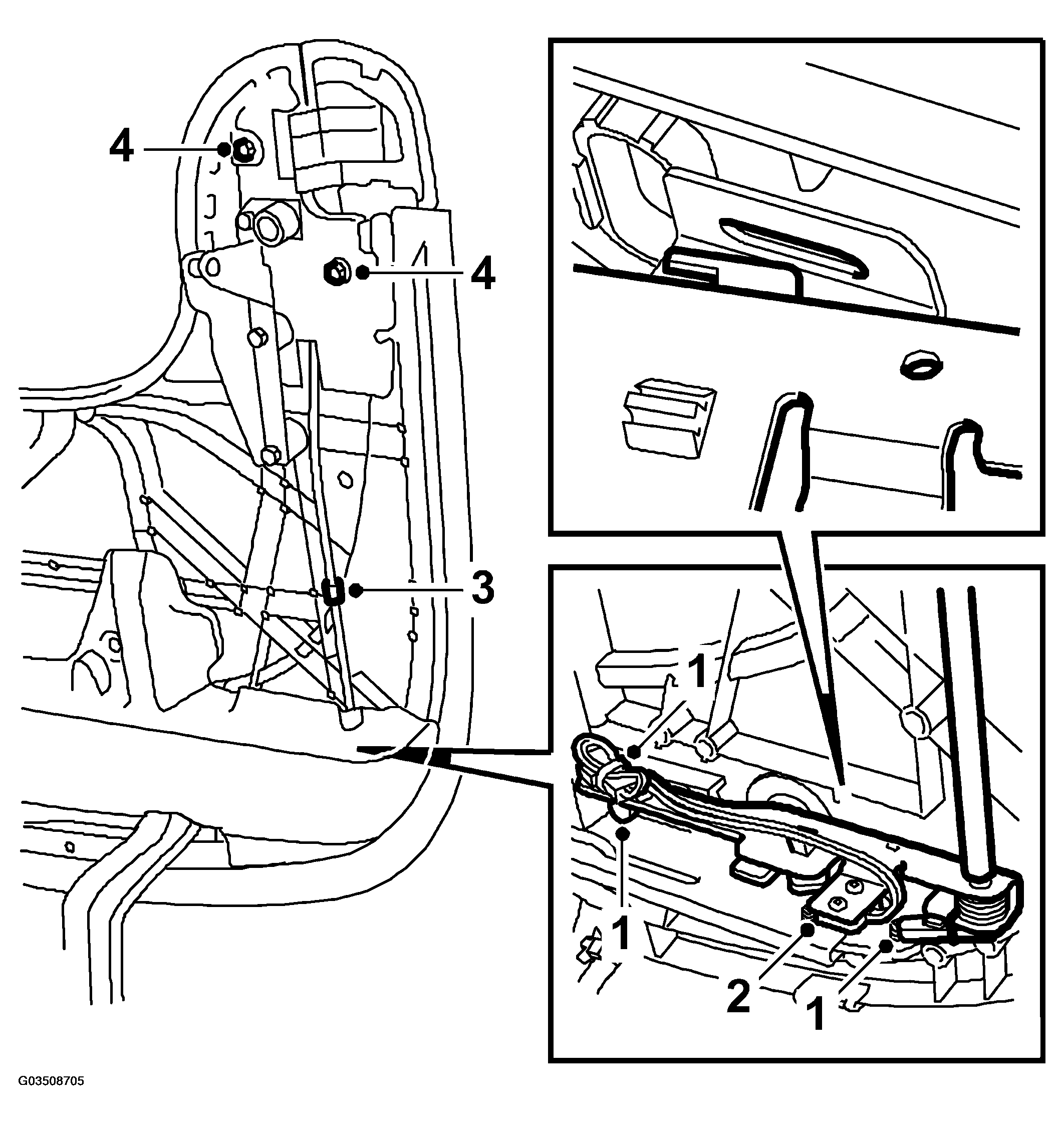

    5. Fig 1: Illustration For Steps 1-4
    G03508705Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the latch and tighten according to markings. Fit the clip.
  6. Adjust the access flaps with the bolt so that they are flush with the soft top cover.

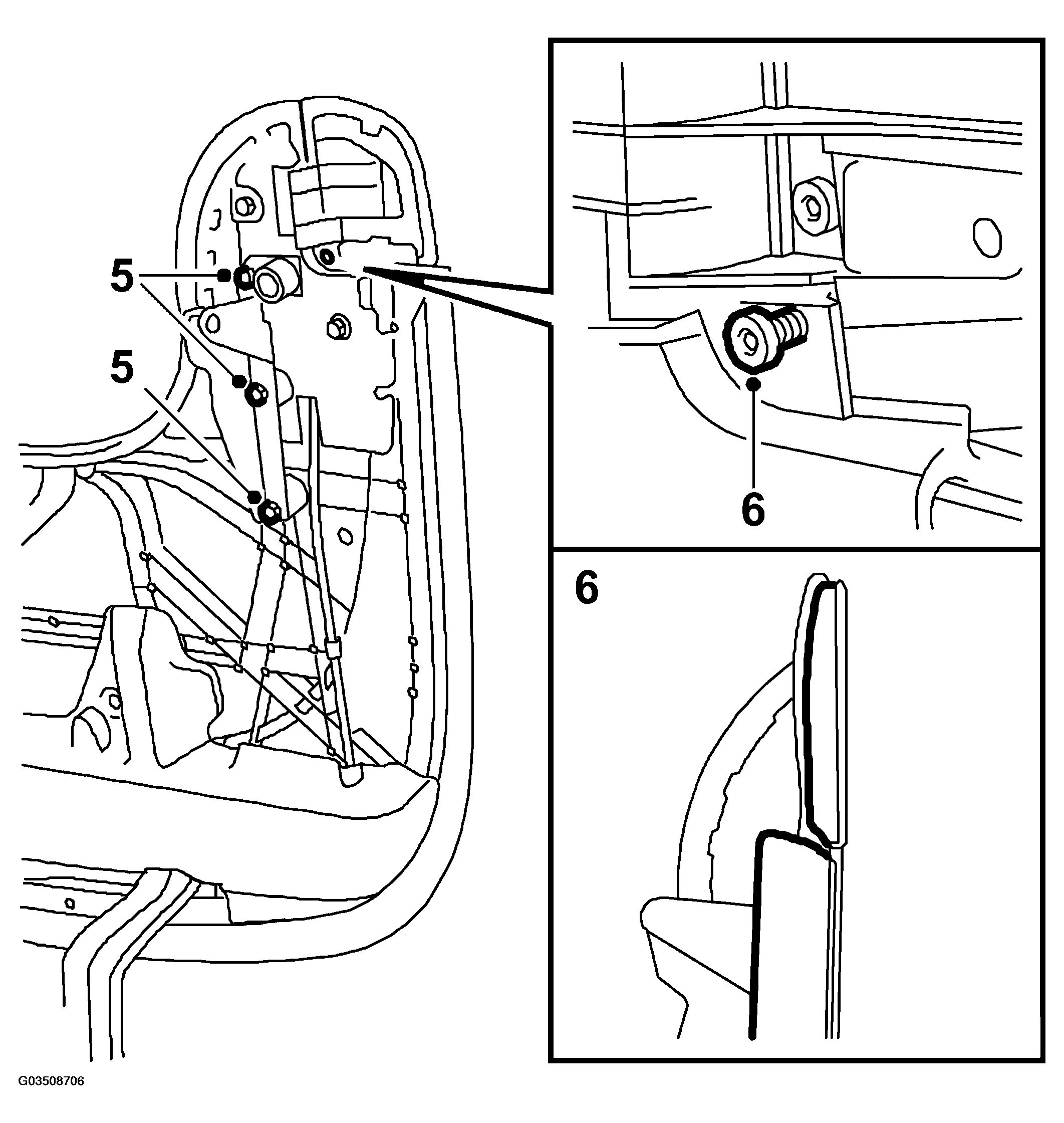

    7. Fig 2: Illustration For Steps 5-6
    G03508706Courtesy of SAAB-SCANIA OF AMERICA, INC.
