Soft top cover: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shell from the underside of the soft top cover.
  2. Remove the screws that secure the collision cables to the soft top cover.

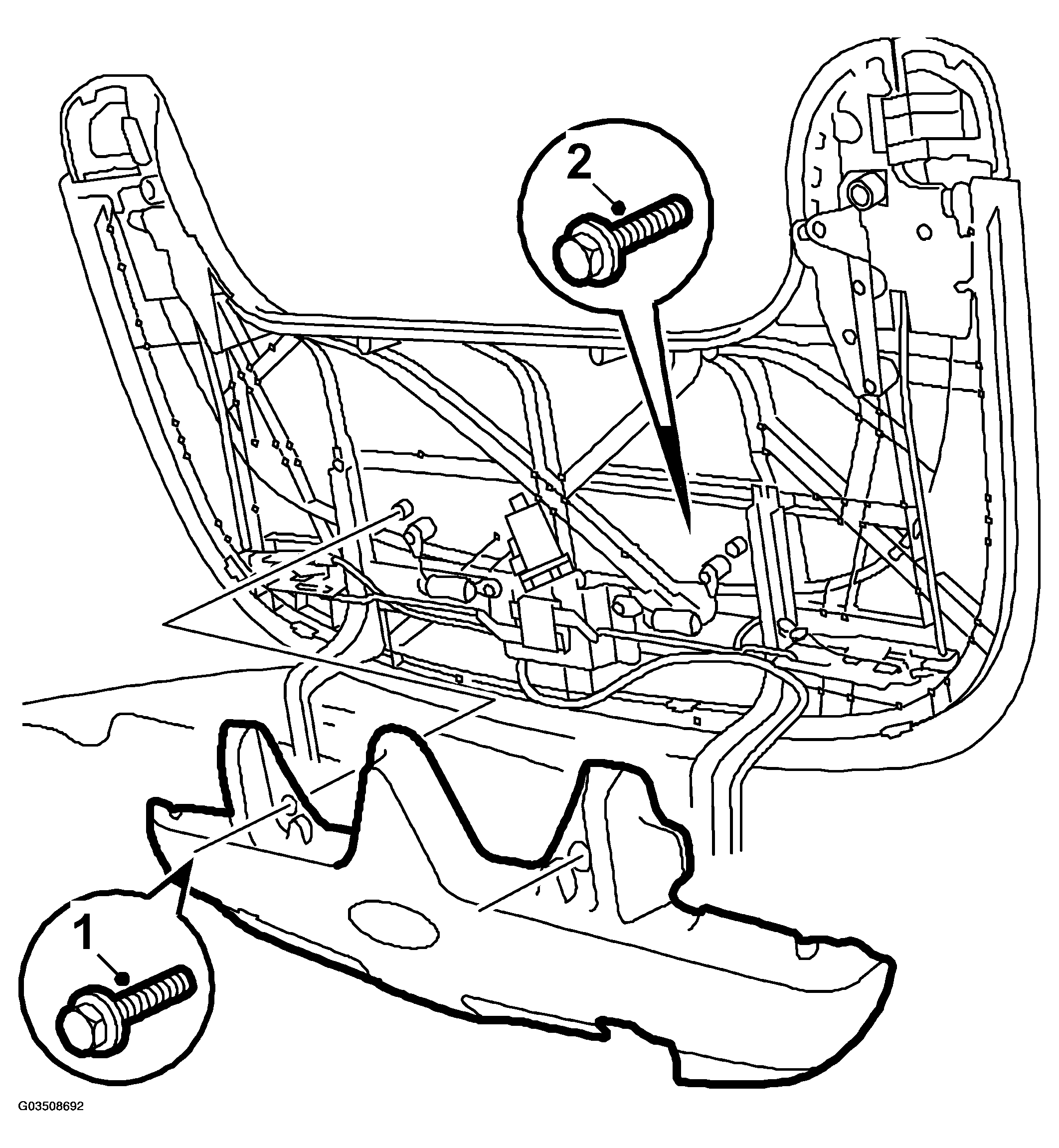

    3. Fig 1: Illustration For Steps 1-2
    G03508692Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Mark the position for the screws securing the soft top cover latches.
  4. Remove the screws and lift away the latches.
  5. Remove the screws securing the access flaps. Loosen the flaps and turn them aside.
  6. Mark the position for the soft top cover retaining nuts.

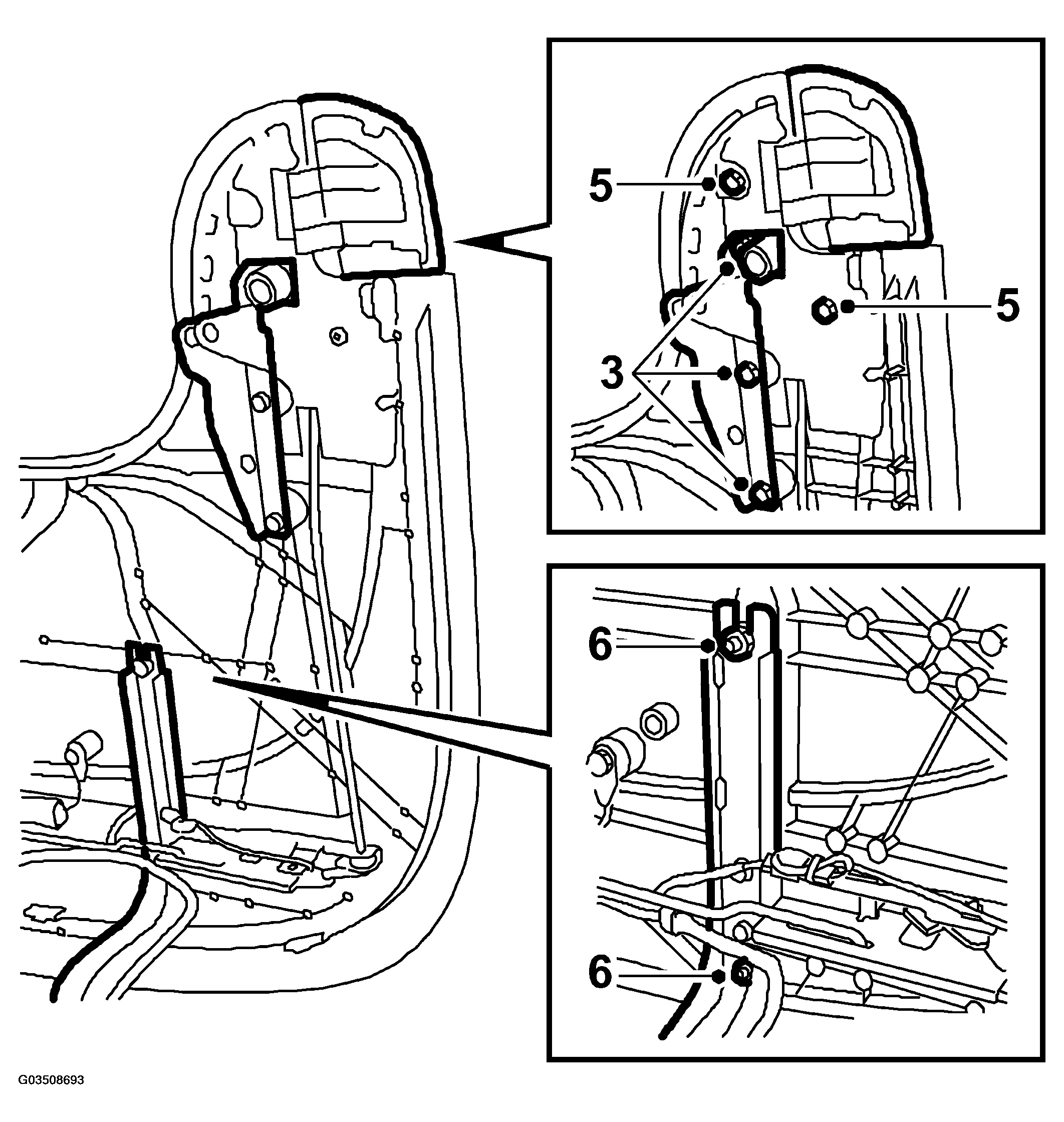

    7. Fig 2: Illustration For Steps 3, 5 & 6
    G03508693Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the soft top cover retaining nuts and lift away the cover.
