Soft top cover: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the soft top cover and tighten the retaining nuts according to the marking.
  2. Fit the access flaps and tighten the screws.
  3. Fit the latches and tighten down according to markings.

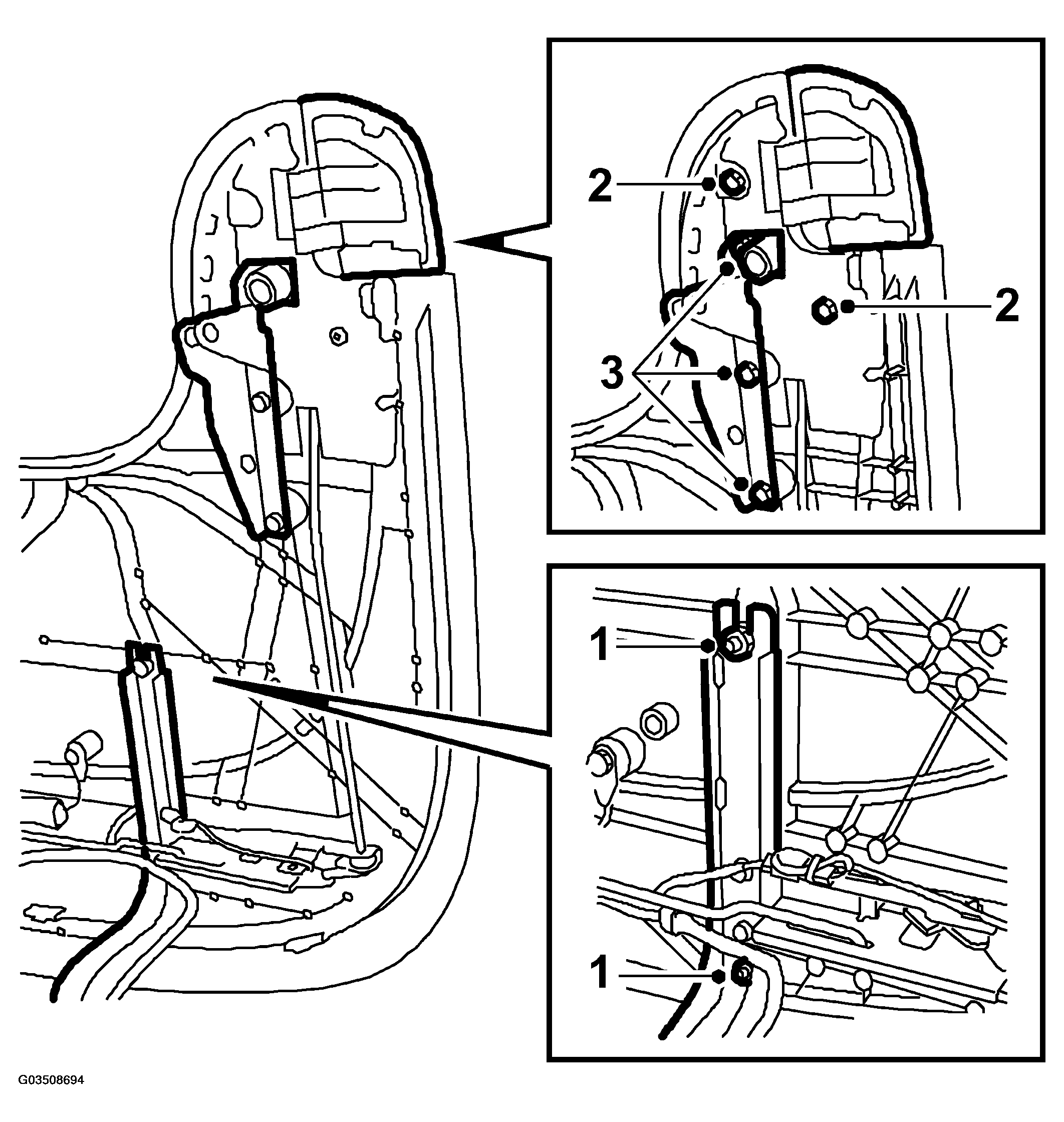

    4. Fig 1: Illustration For Steps 1-3
    G03508694Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the collision cables and tighten the screws. The end sleeves on each respective cable should point at each other.

    Tightening torque: 14 N.m (10.3 lbf ft)

  5. Refit the shell.

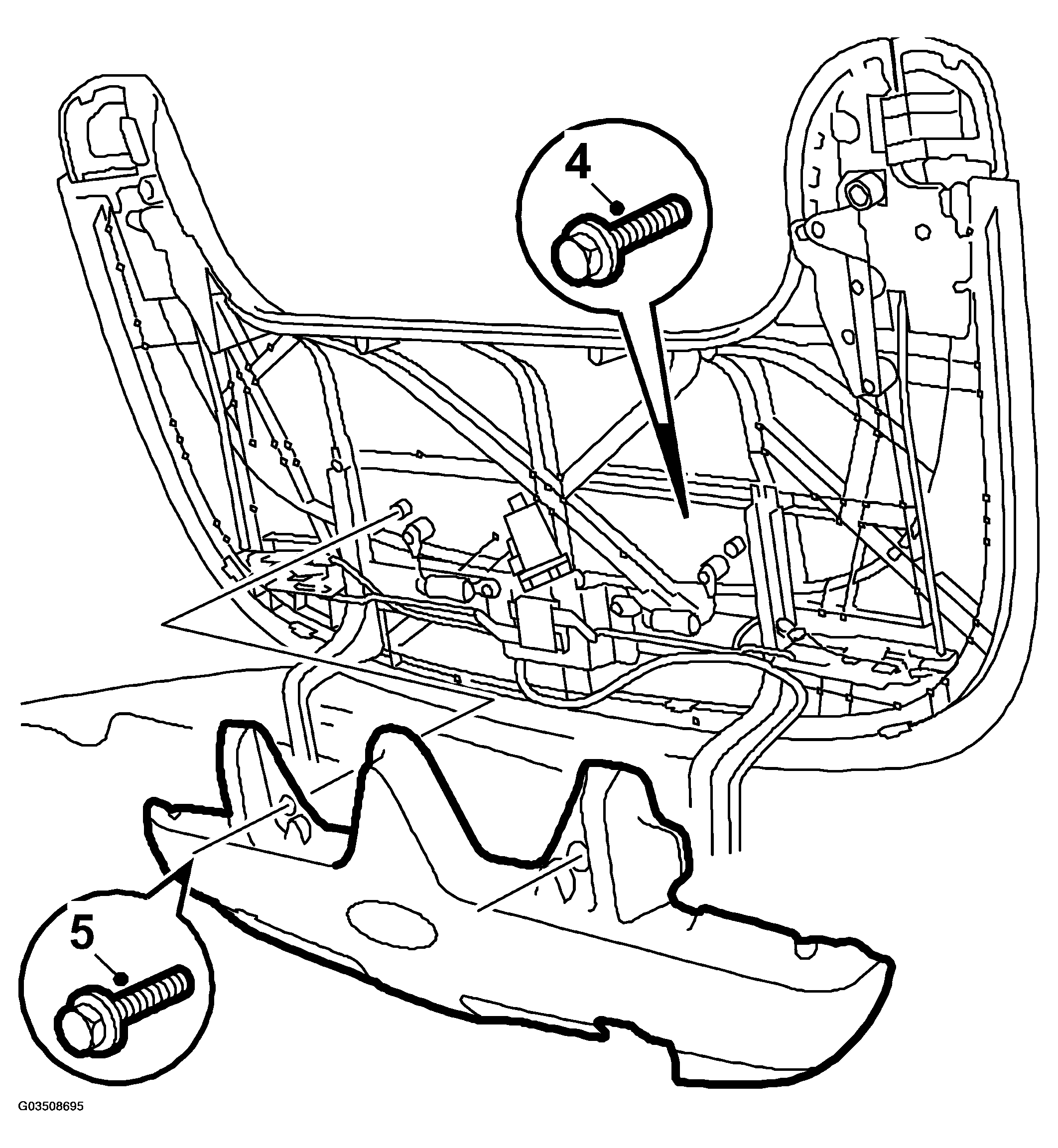

    6. Fig 2: Illustration For Steps 4-5
    G03508695Courtesy of SAAB-SCANIA OF AMERICA, INC.
