Soft top cover latch: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear side trim. See REMOVING .
  2. Fold the backrest forward.
  3. Mark the control cable position and then loosen the nuts.
  4. Remove the clip securing the cable and move the cable aside.
  5. Remove the bolts securing the microswitch and move it away from the latch.
  6. Mark the longitudinal and vertical position of the latch.
  7. Remove the retaining nuts and remove the latch.

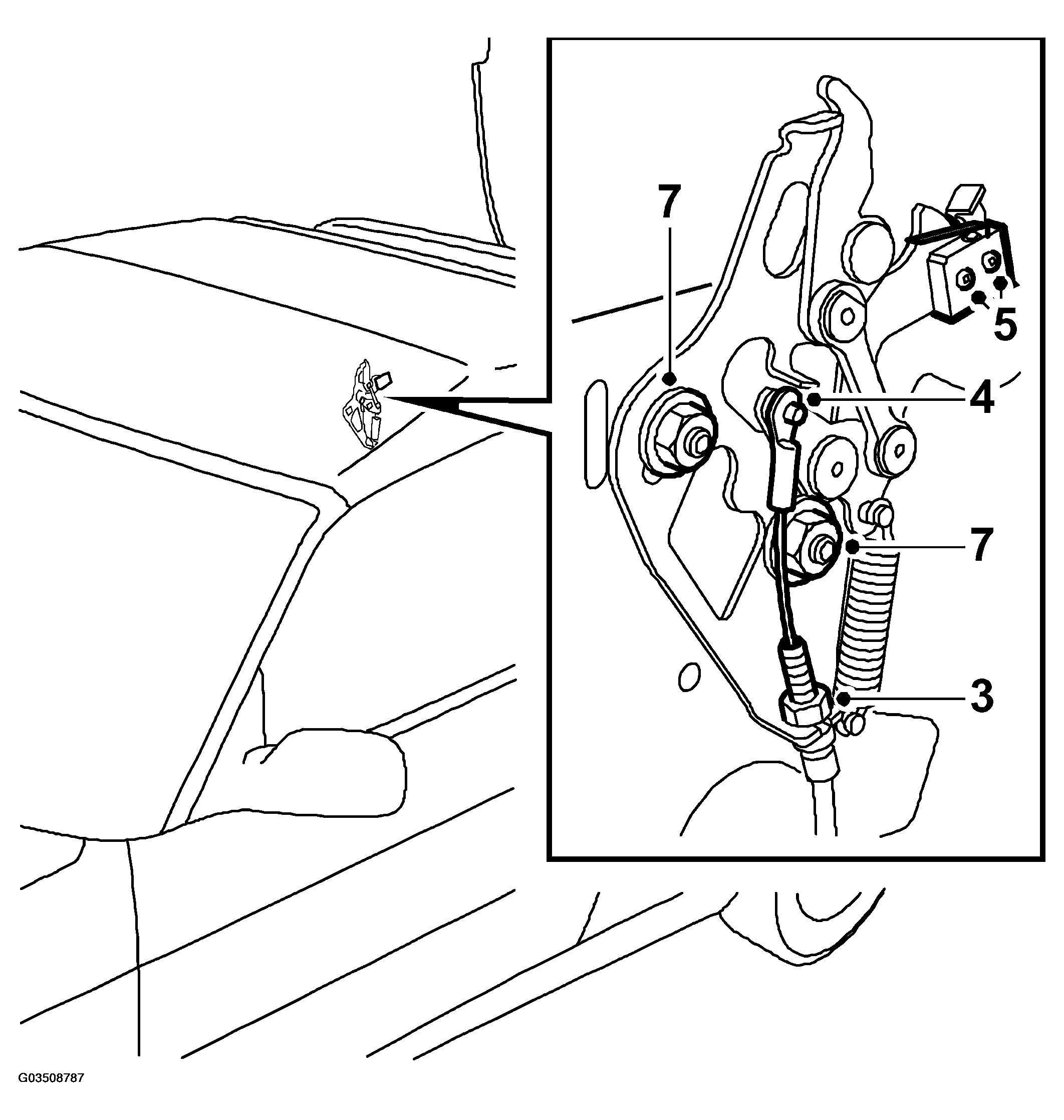

    8. Fig 1: Illustration For Steps 3-5, 7
    G03508787Courtesy of SAAB-SCANIA OF AMERICA, INC.
