Soft top cover latch: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the latch according to markings and tighten the nuts.
  2. Fit the microswitch and tighten the bolts.
  3. Fit the control cable in the previously adjusted position and tighten the nuts.
  4. Fit the cable end on the latch and press on the clip.

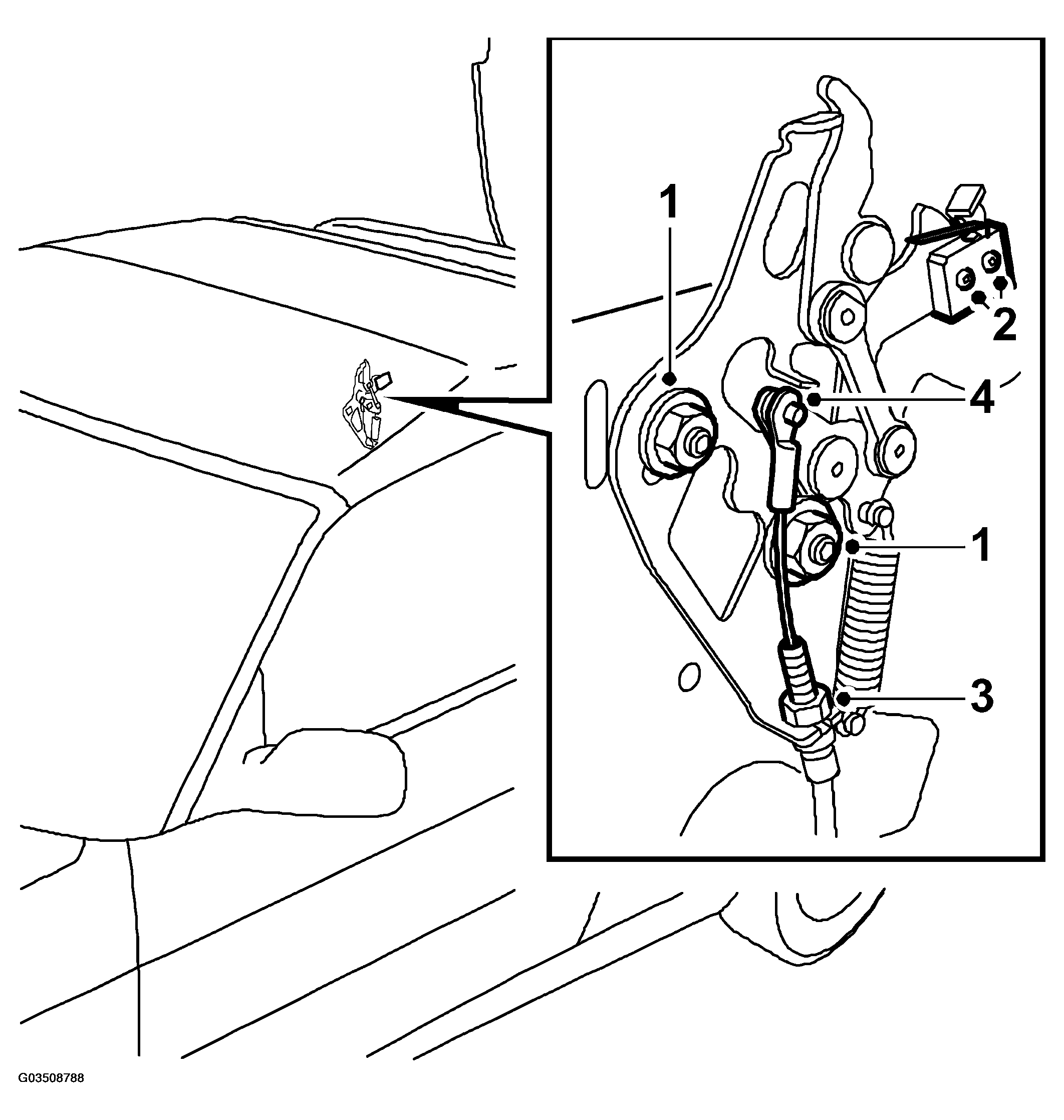

    5. Fig 1: Illustration For Steps 1-4
    G03508788Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Check the locking function. Adjust as necessary. See ADJUSTING THE SOFT TOP COVER .
  6. Refit the side trim. See FITTING .
