Soft top cover hinges: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the right hinge in the joint and adjust according to marking. Fasten the hinge.
  2. Fit the rod with the springs.
  3. Fit the left hinge and tighten according to markings.
  4. Close the boot lid and fit the springs using an Apex screwdriver without the Torx bit or a suitable pipe. Fit the wiring harness on the left hinge.

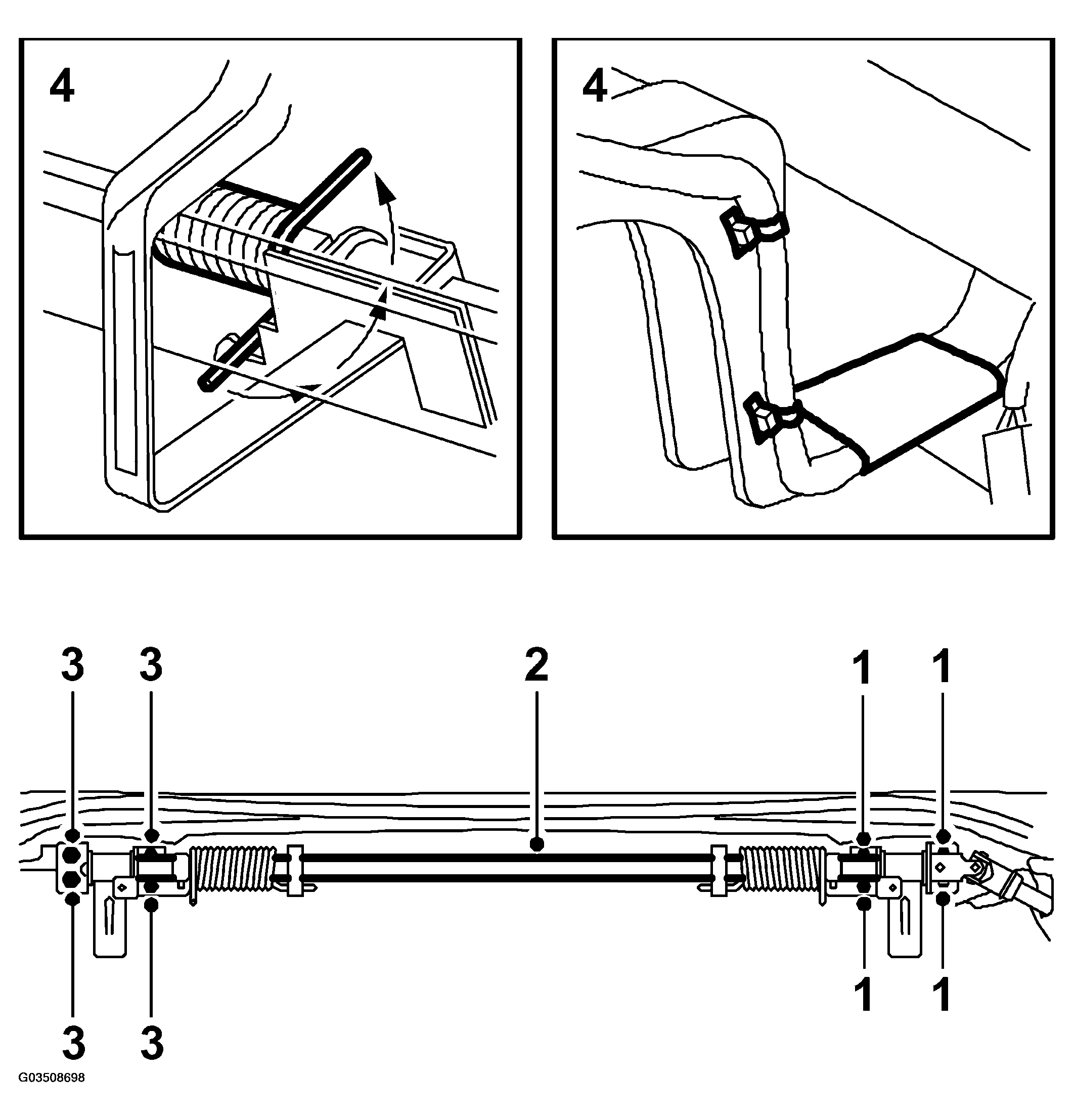

    Fig 1: Illustration For Steps 1-4
    G03508698Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the storage bag on the sheet metal flange and press the soft top cover seal in place.
  6. Fit the soft top cover.
  7. Plug in the connectors and fit new cable ties.
  8. Lower the soft top cover and open the boot lid. Refit the luggage compartment upholstery.

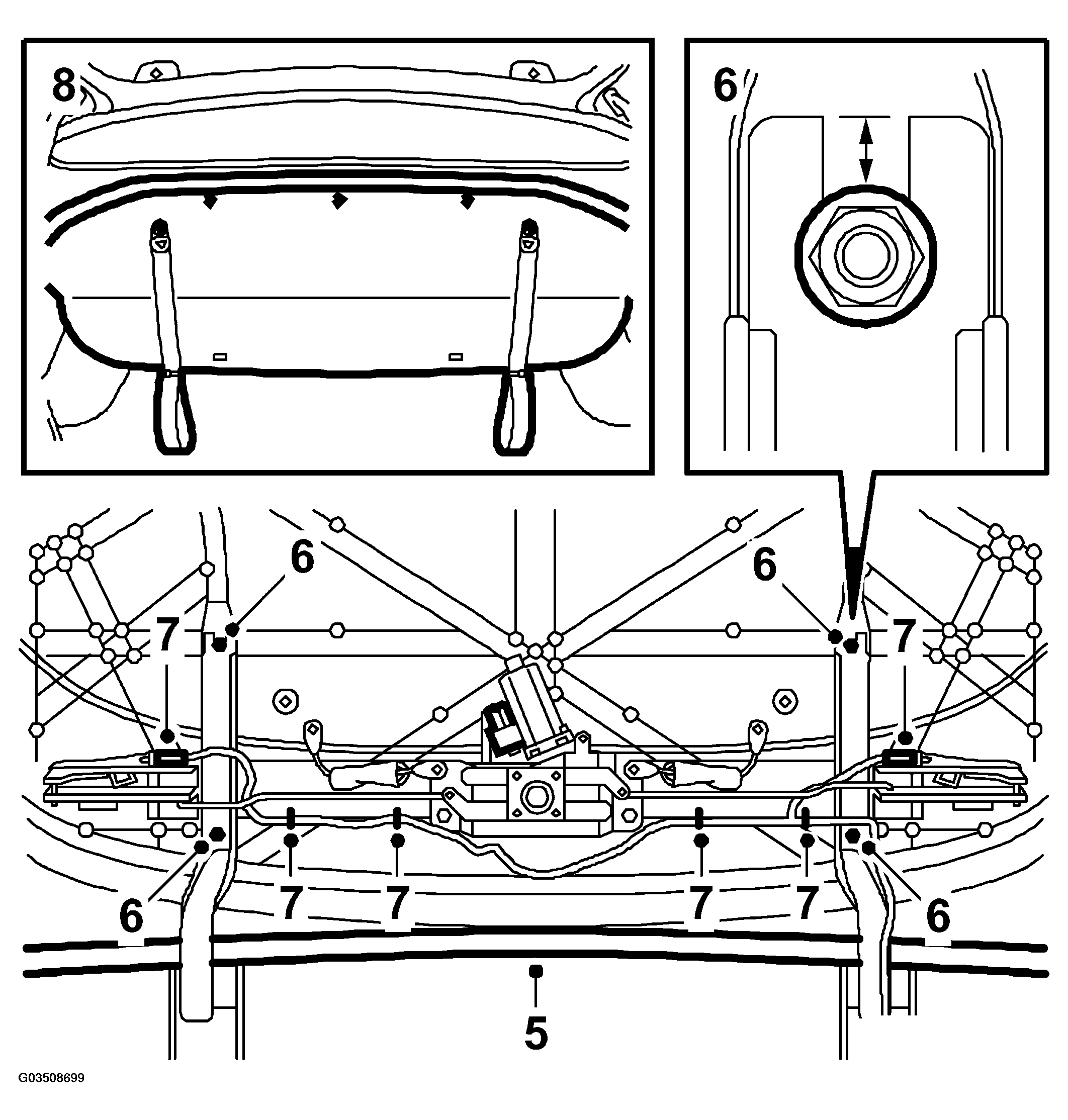

    9. Fig 2: Illustration For Steps 5-8
    G03508699Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Connect the diagnostics tool, erase any diagnostic trouble codes.
