Rear loudspeaker: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear side trim. See REMOVING .
  2. Remove the bolts securing the loudspeaker.
  3. Unplug the connector and remove the speaker.

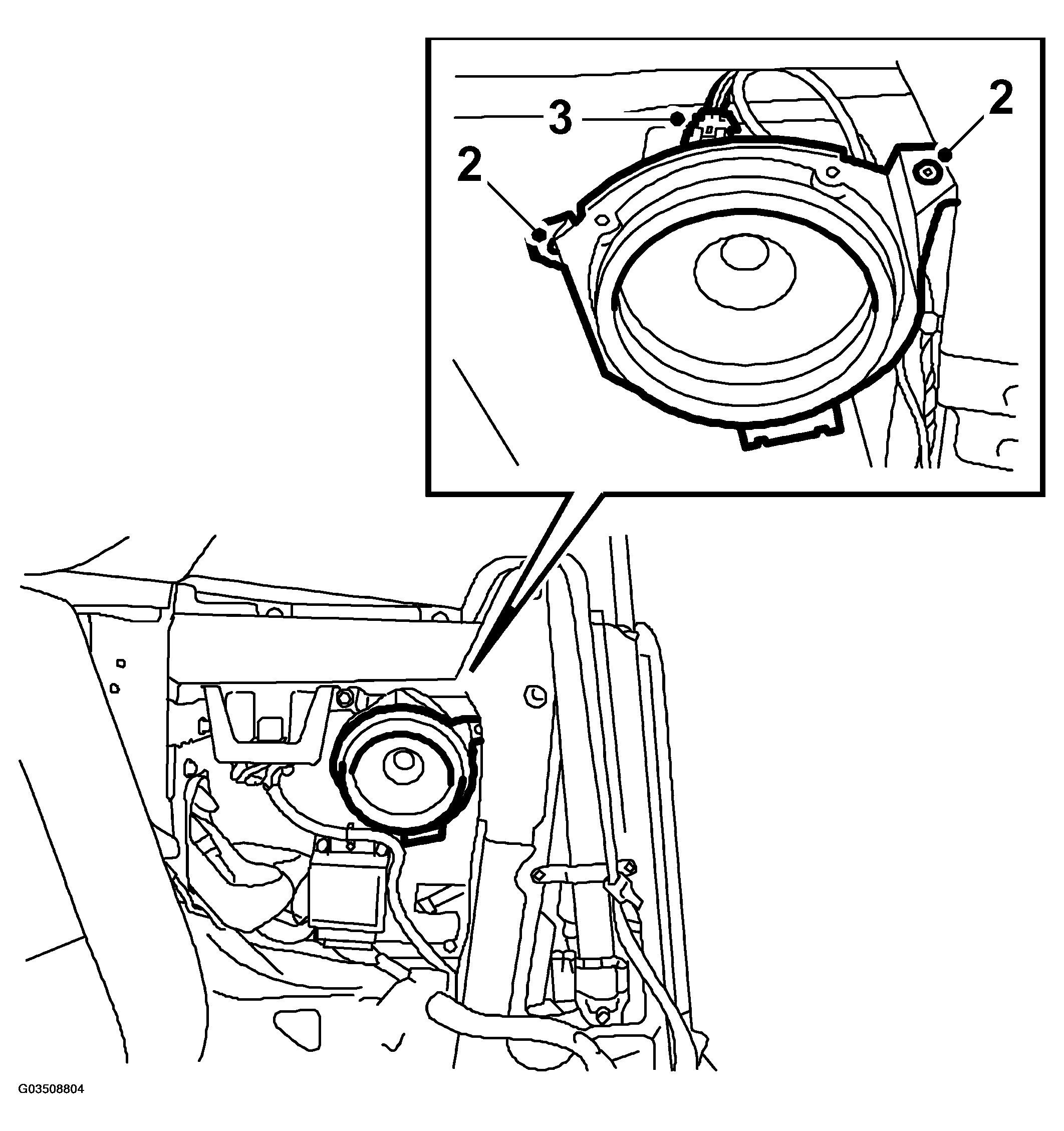

    4. Fig 1: Illustration For Steps 2-3
    G03508804Courtesy of SAAB-SCANIA OF AMERICA, INC.
