Rear loudspeaker: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in the connector.
  2. Fit the speaker and tighten the bolts.

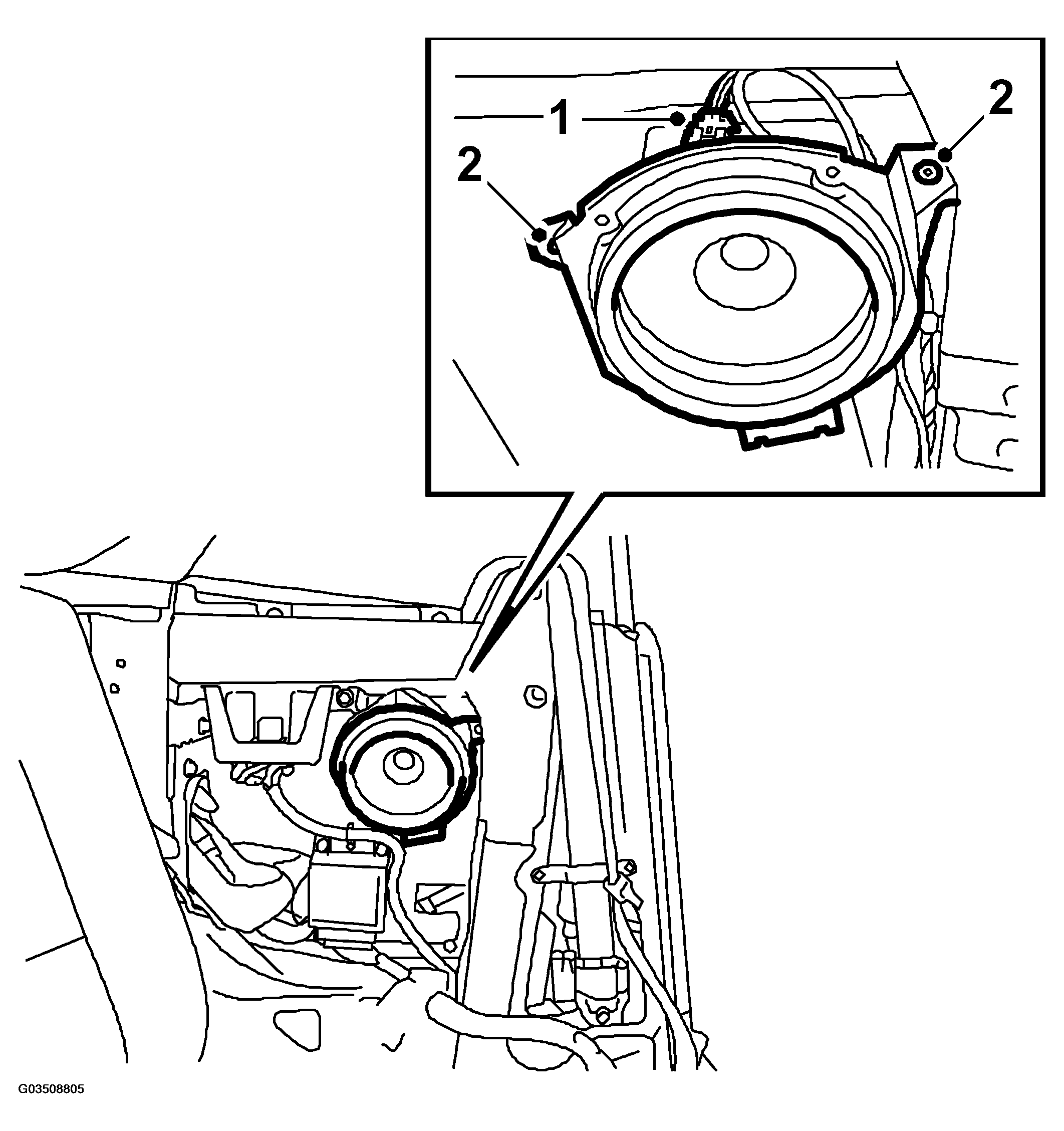

    3. Fig 1: Illustration For Steps 1-2
    G03508805Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Refit the side trim. See FITTING .
