Microswitch, soft top storage: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the top of the luggage compartment upholstery.
  2. Remove the clip and lift up the microswitch.
  3. Unplug the connector.

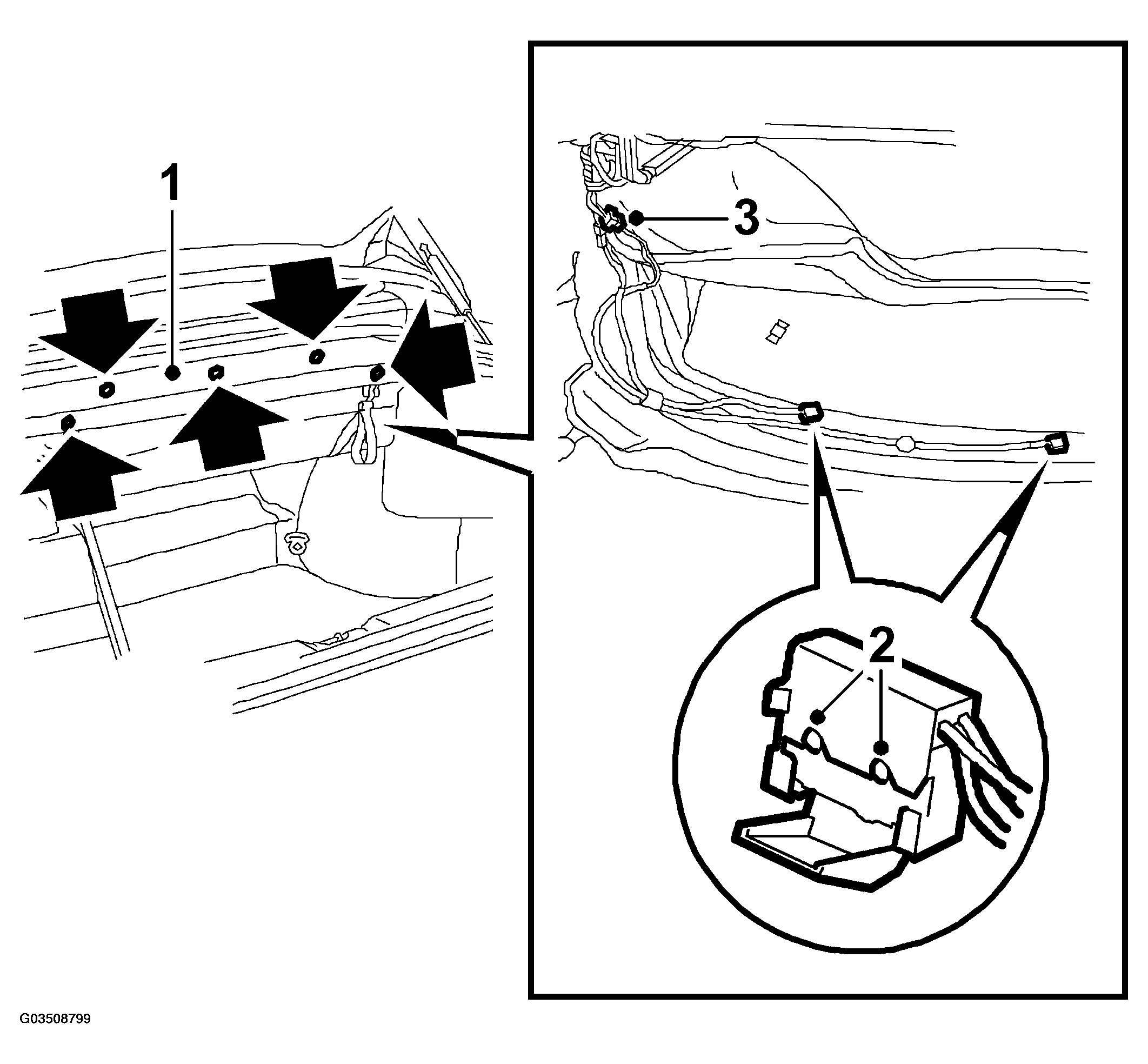

    4. Fig 1: Illustration For Steps 1-3
    G03508799Courtesy of SAAB-SCANIA OF AMERICA, INC.
