Microswitch, soft top storage: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in the connector.
  2. Fit the microswitch and fit the clip.
  3. Refit the luggage compartment upholstery.

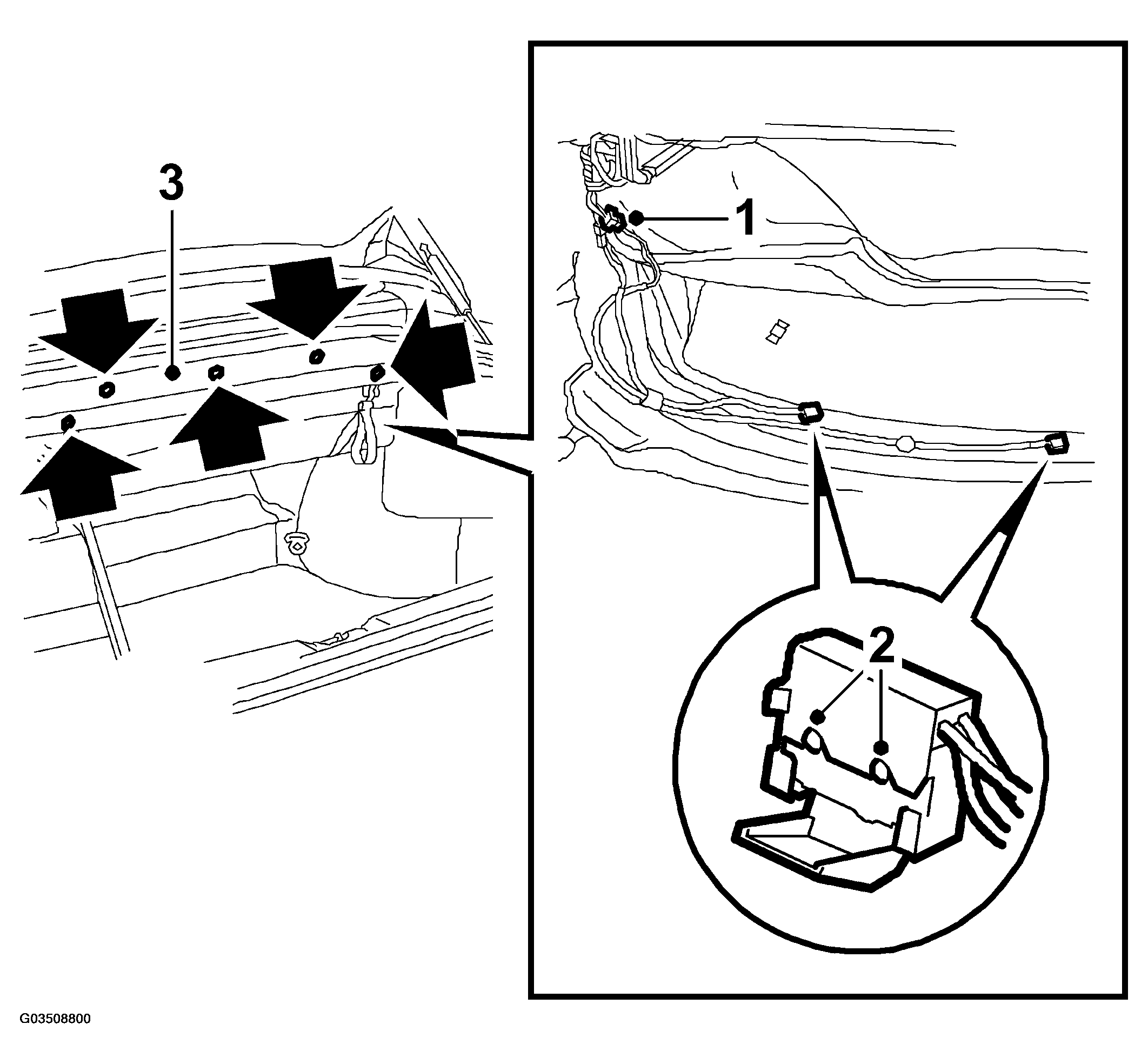

    4. Fig 1: Illustration For Steps 1-3
    G03508800Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Connect the diagnostics tool and erase any diagnostic trouble code.
