Microswitch, fifth bow intermediate position: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the soft top.
  2. Remove the rear side trim. See REMOVING .
  3. Run the soft top to raised (closed) position with the soft top cover and fifth bow raised.
  4. Cut the cable ties and unplug the connector. Use a knife to reach the inner cable tie. Pull the wiring harness through the hole in the body.
  5. Run the soft top manually to the half open position and fit the soft top support (16) 82 93 144.
  6. Pull up the wiring harness and cut the upper cable tie.
  7. Remove the microswitch retaining bolt and remove the microswitch.

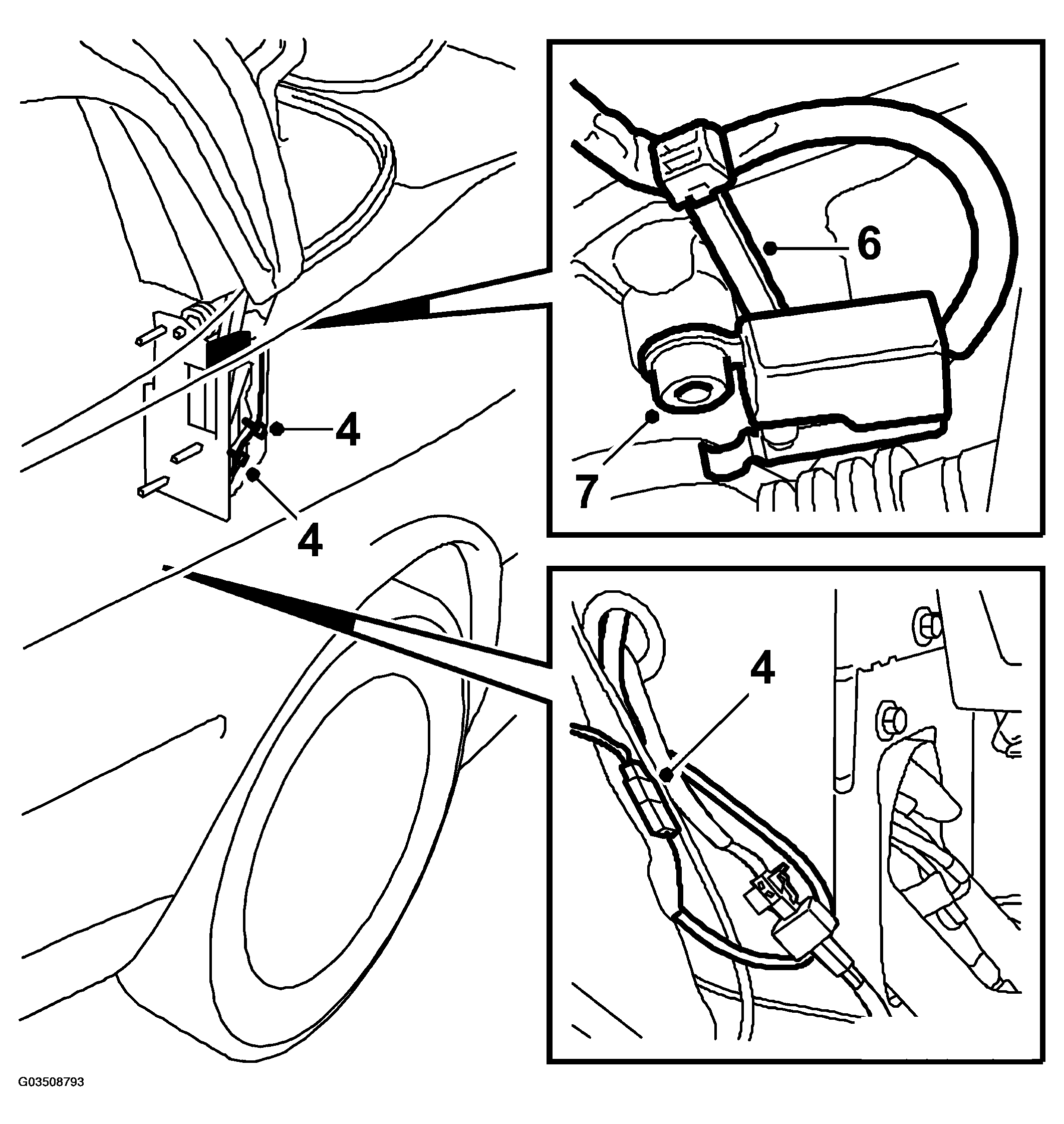

    8. Fig 1: Illustration For Steps 4, 6 & 7
    G03508793Courtesy of SAAB-SCANIA OF AMERICA, INC.
