Microswitch soft top cover latch: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the microswitch and tighten the bolts.
  2. Plug in the connector and fit the tape
  3. Fit the rear upholstery.
  4. Refit the rear side trim. See FITTING .

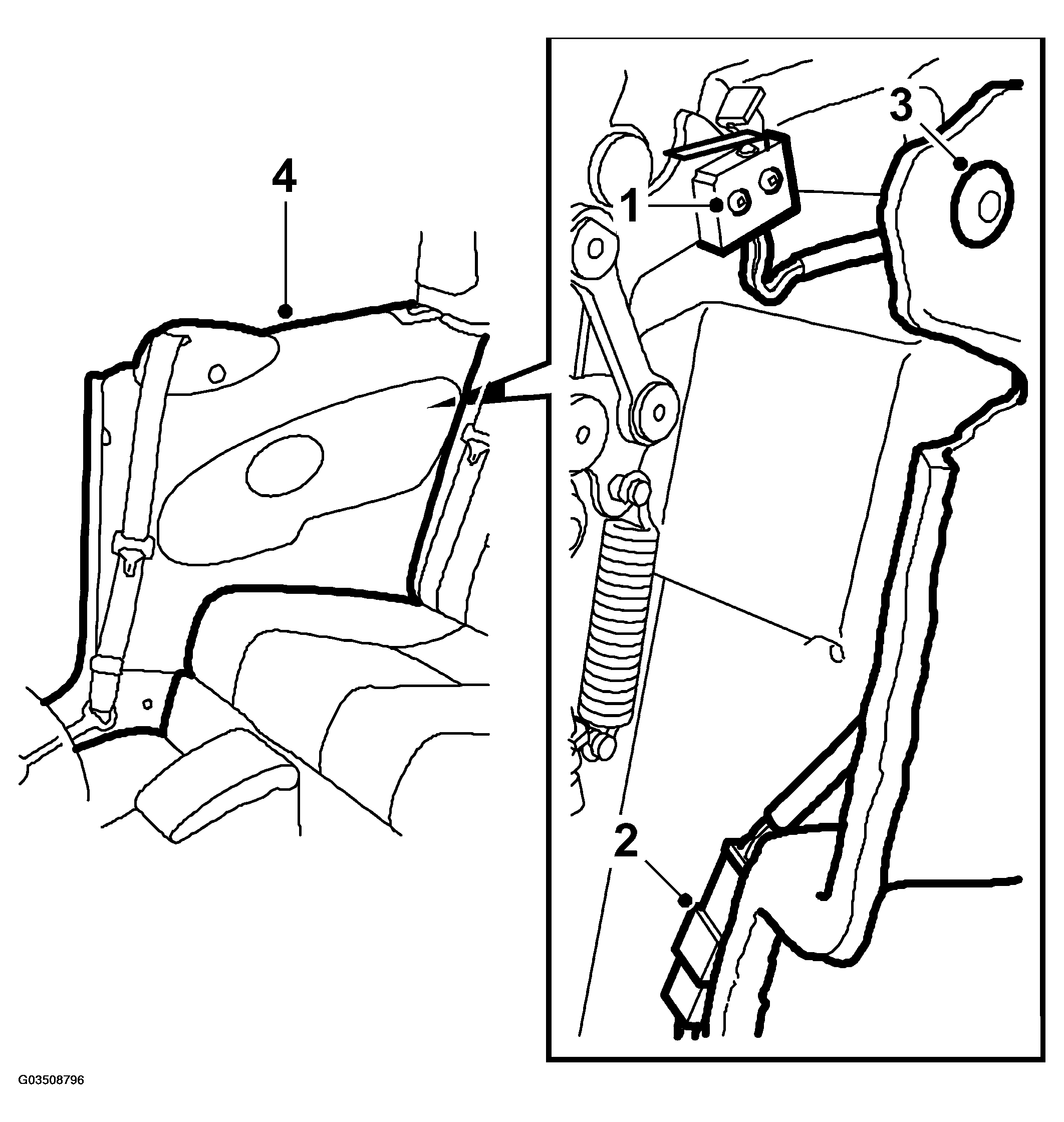

    5. Fig 1: Illustration For Steps 1-4
    G03508796Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Connect the diagnostics tool and erase any diagnostic trouble code.
